Chapter 2 Installation Instructions
12

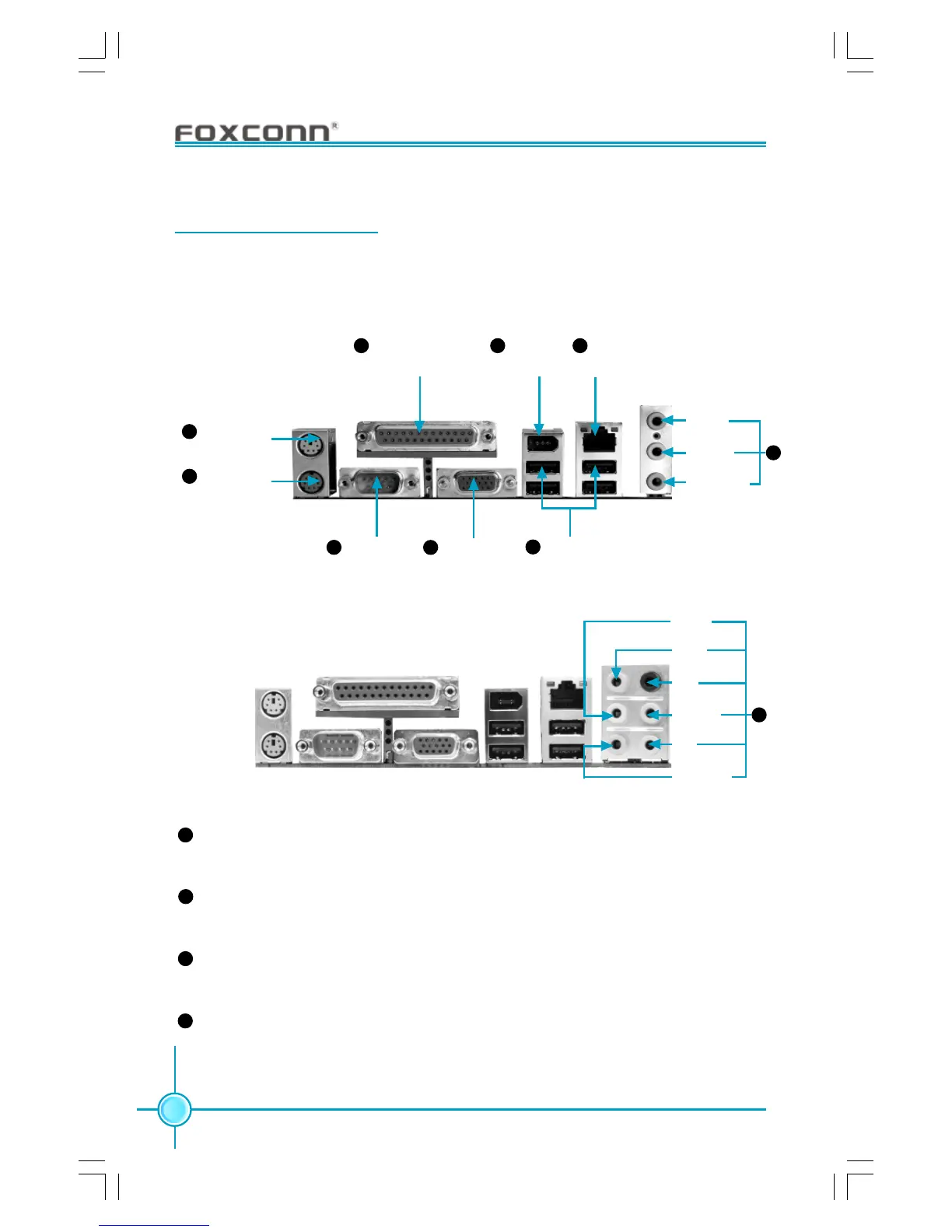

Rear Panel Connectors
This motherboard provides the ports as below:
PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
This 25-pin port connects a parallel printer, a scanner, or other devices.
1
2
3
4
USB 2.0 Ports
PS/2 Mouse
Connector
Parallel Port
(Printer Port)
LAN Port
1
2
4
3
7
8
1394 Port
(optional)
6
PS/2 Keyboard
Connector
Serial Port
(COM1)
VGA Port
(only for 915 G/GV/GL)
3
5
For -6 models
Line-in
Line-out
Microphone
9
For -8 models
Rear
LFE/CEN
Microphone
10
Line in
Line out
Side
