Chapter 2 Installation Instructions
16

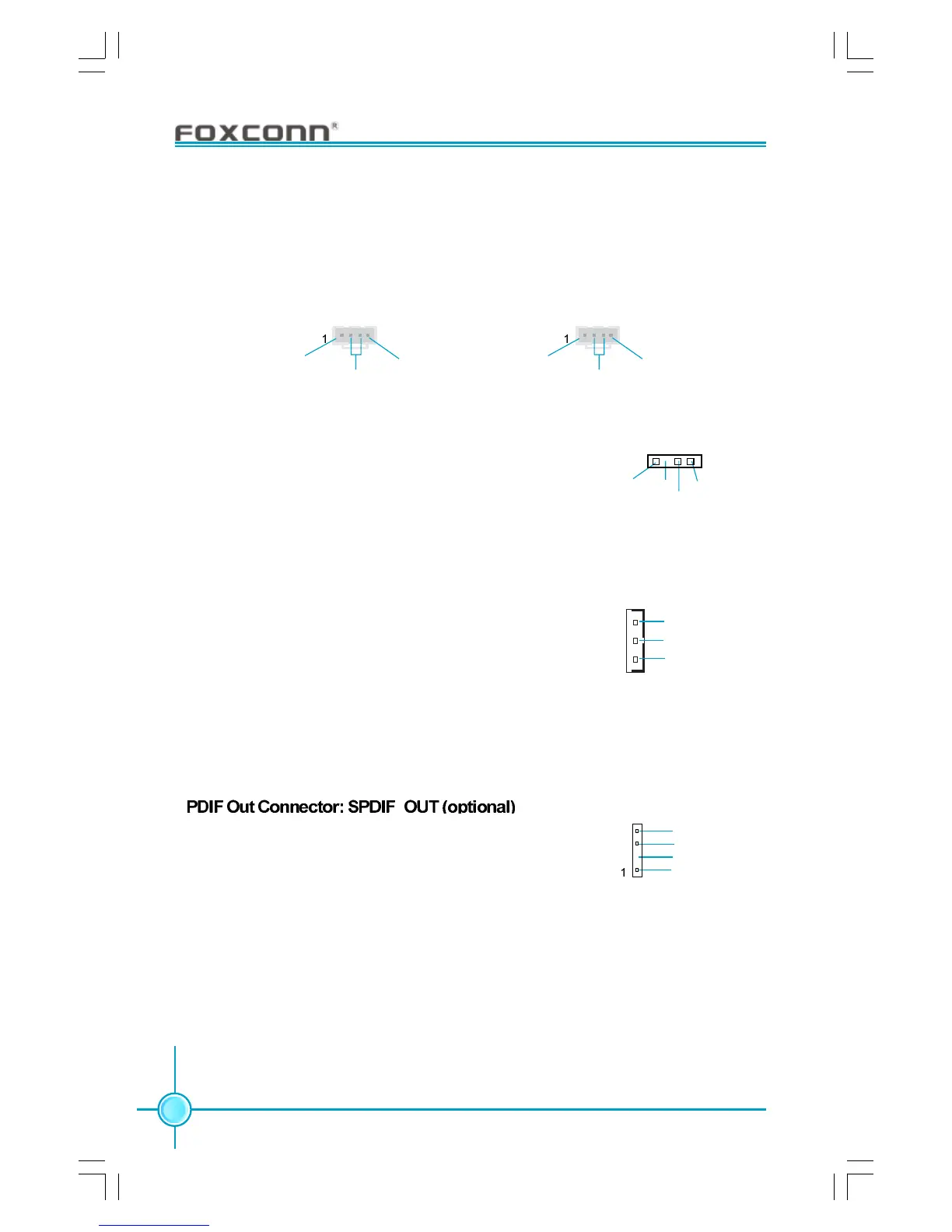

Audio Connectors: CD_IN, AUX_IN (optional)
CD_IN, AUX_IN is Sony standard CD audio connectors, it can be connected to a
CD-ROM drive through a CD audio cable.
CD_IN
CD_R
GND
CD_L
AUX_IN
AUX_L
GND
AUX_R
Wake-Up On LAN: WOL (optional)
Through the Wake-Up On LAN function, a wake event
occurring from the network can wake up the system. To
utilize this function, please be sure an ATX 12V power
supply with a 5VSB line capable of delivering a current
of at least 1A, and a LAN adapter which supports this
function. Then connect the header to the relevant con-
nector on the LAN adapter.
5V _SB_SYS
GND
WOL
Signal for waking up
1
Speaker Connector: SPEAKER (optional)
The speaker connector is used to connect speaker of
the chassis.
S
The S/PDIF out connector is capable of providing digi-
tal audio to external speakers or compressed AC3
data to an external Dolby digital decoder.
Note:The empty pin of SPDIF cable should be aligned
to empty pin of SPDIF out connector.
SPDIF_OUT
SPDIF_OUT
5V_SYS
GND
Empty
SPEAKER
1
SPKJ
Empty
SPK
NC
