Chapter 3 BIOS Description
34
PATA IDE Mode (Default: Primary)
When On-Chip Serial ATA is set as “Combined Mode”, this option will be
modified. It is used to set the PATA IDE Mode. The available setting values are:
Primary, Secondary.
SATA Port (Default: P2, P4 is Secondary)
This option is used to set the Serial ATA Port.
AC97 Audio (Default: Auto)
This option is used to set whether onboard AC97 Audio is enabled. The avail-
able setting values are: Disabled and Auto.
Onboard Lan Controller (Default: Enabled)
This option is used to set whether the onboard LAN controller is enabled. The
available setting values are: Disabled and Enabled.
Onboard Lan Boot ROM (Default: Disabled)
This option is used to decide whether to invoke the boot ROM of the onboard
LAN chip. The available setting values are: Disabled and Enabled.

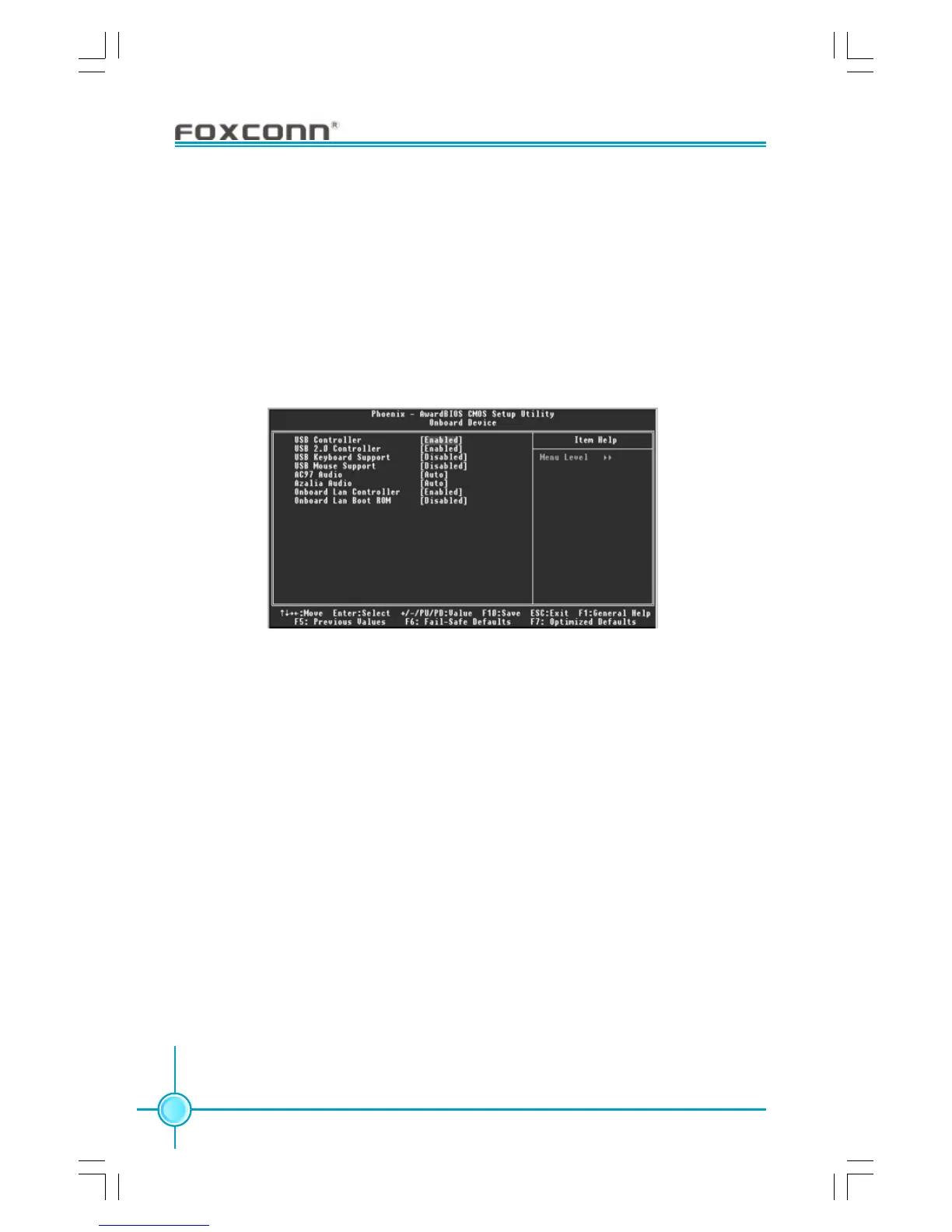

Onboard Device Menu
