4. HDMI Port
The HDMI (High-Denition Multimedia Interface) provides an all-digital audio/video interface
to transmit the uncompressed audio/video signals and is HDCP compliant. Connect the
HDMI audio/video to this port. The HDMI Technology can support a maximum resolution of
1920x1080p, but the actual resolutions supported depend on the monitor being used.
5. DVI-D Port
The DVI-D port supports DVI-D specication. Connect a monitor that supports DVI-D
connection to this port.
6. VGA Port
To connect with external display devices, such as monitor or LCD display.
7. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
8. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
9. Audio Ports
For the denition of each audio port, please refer to the table below :

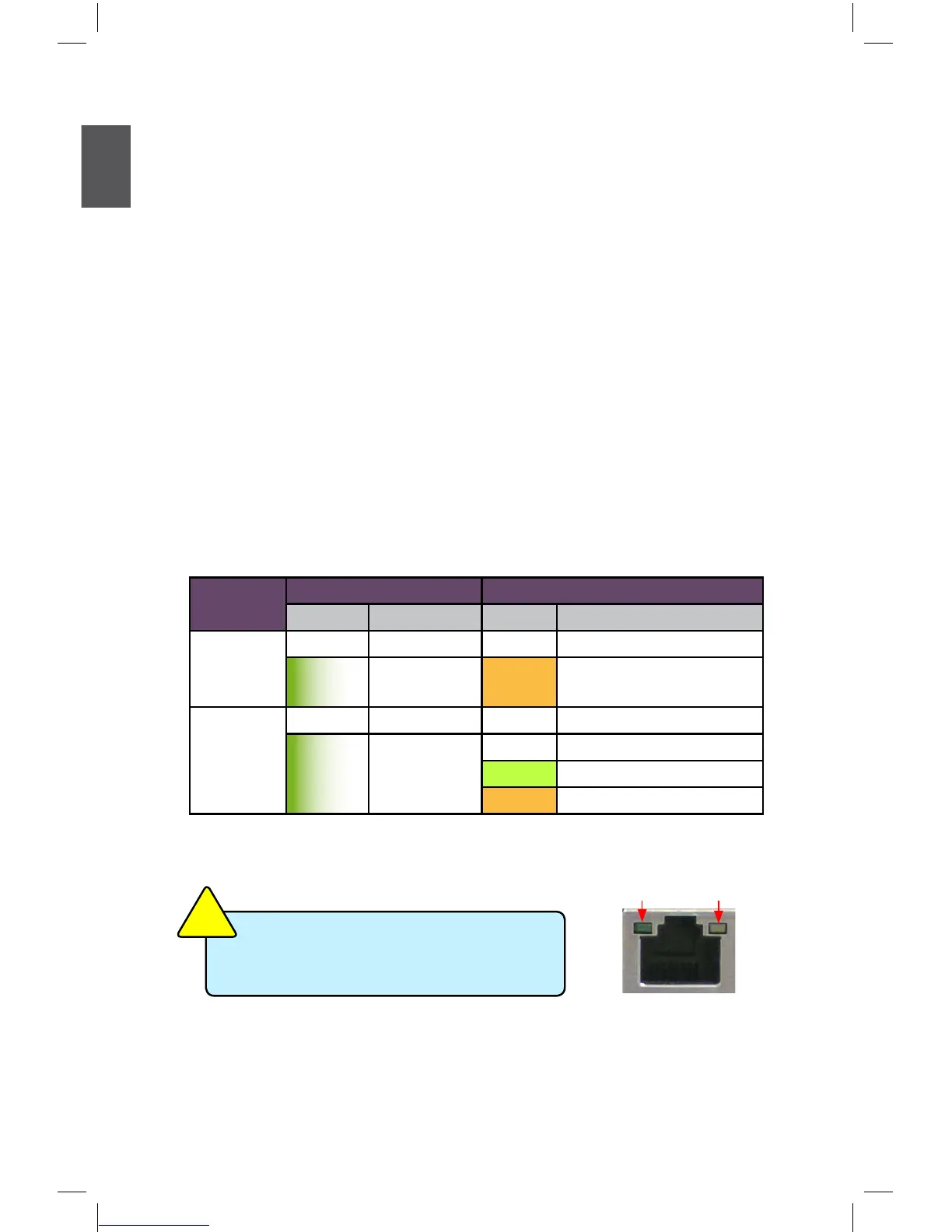

LAN Type
Left: Active Right: Link
Status Description Status Description
100M
Off No Link Off No Link
Green
Blinking
Data Activity Orange 10/100Mb/s Connection
1000M
Off No Link Off No Link
Green
Blinking
Data Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
G41M-V supports 10/100Mb/s Ethernet.
G41M-S/G41M supports 1Gb/s Ethernet.
C
A
U
T
I
O
N
!
Active
LED
Link
LED
