Foxconn H81MXV Series User Manual

PRODUCT INTRODUCTION
4

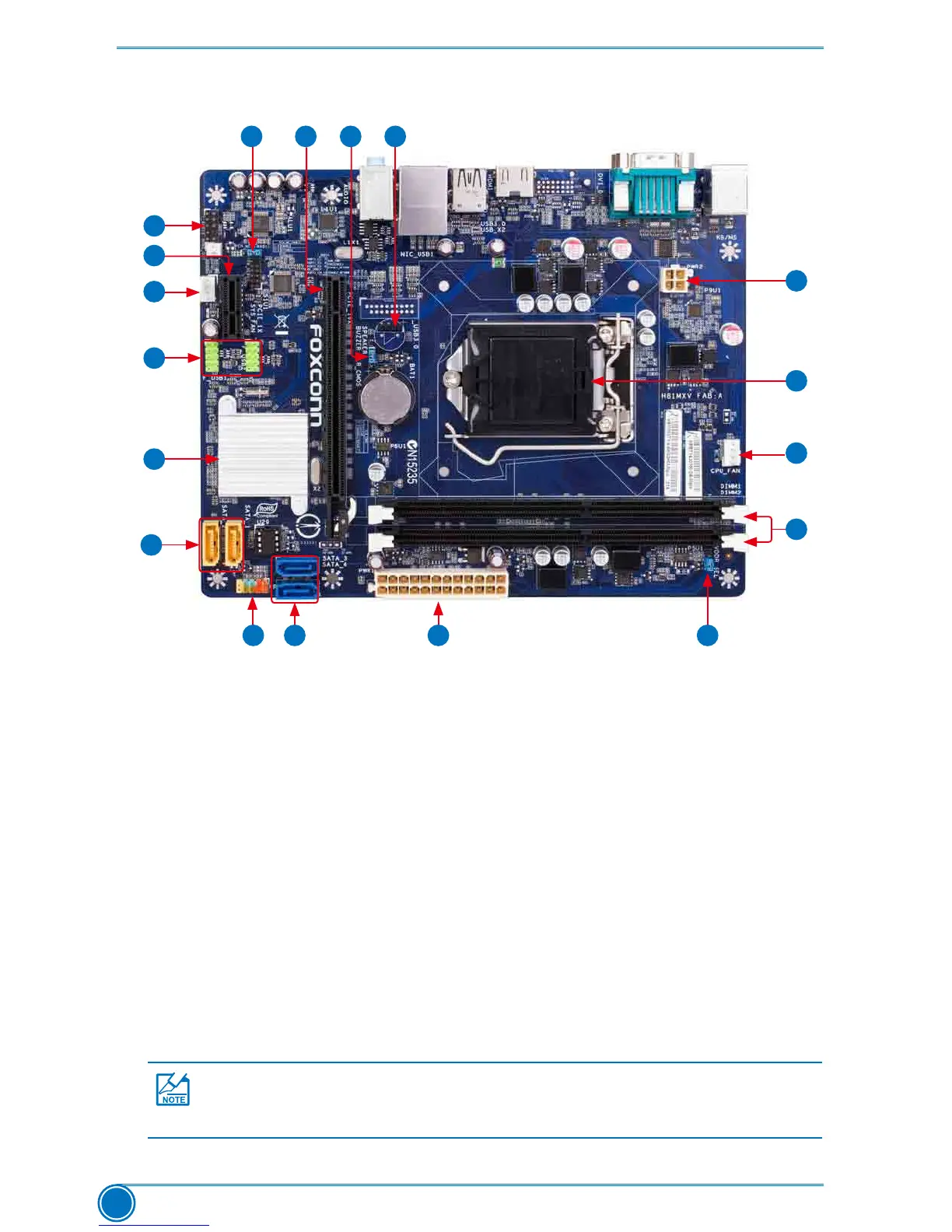

1-2 Layout
The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
11
10
1. Speaker Header
2.ClearCMOSHeader
3. PCI Express X16 Slot
4.MEHeader
5.FrontAudioHeader
6. PCI Express X1 Slot
7. SYS_FAN Header
8.FrontUSB2.0Headers
9. Chipset: Intel® H81
10.SATA3.0Connectors
11. Front Panel Header
12.SATA2.0Connectors
13.24-pinATXPowerConnector
14.VDDR_SELHeader
15.DDR3DIMMSlots
16. CPU_FAN Header
17.LGA1150CPUSocket
18.4-pinATX12VPowerConnector
1234
6
7
9
8
5
14
15
16
17
18
1312
