Foxconn R10-A1 User Manual

4
1

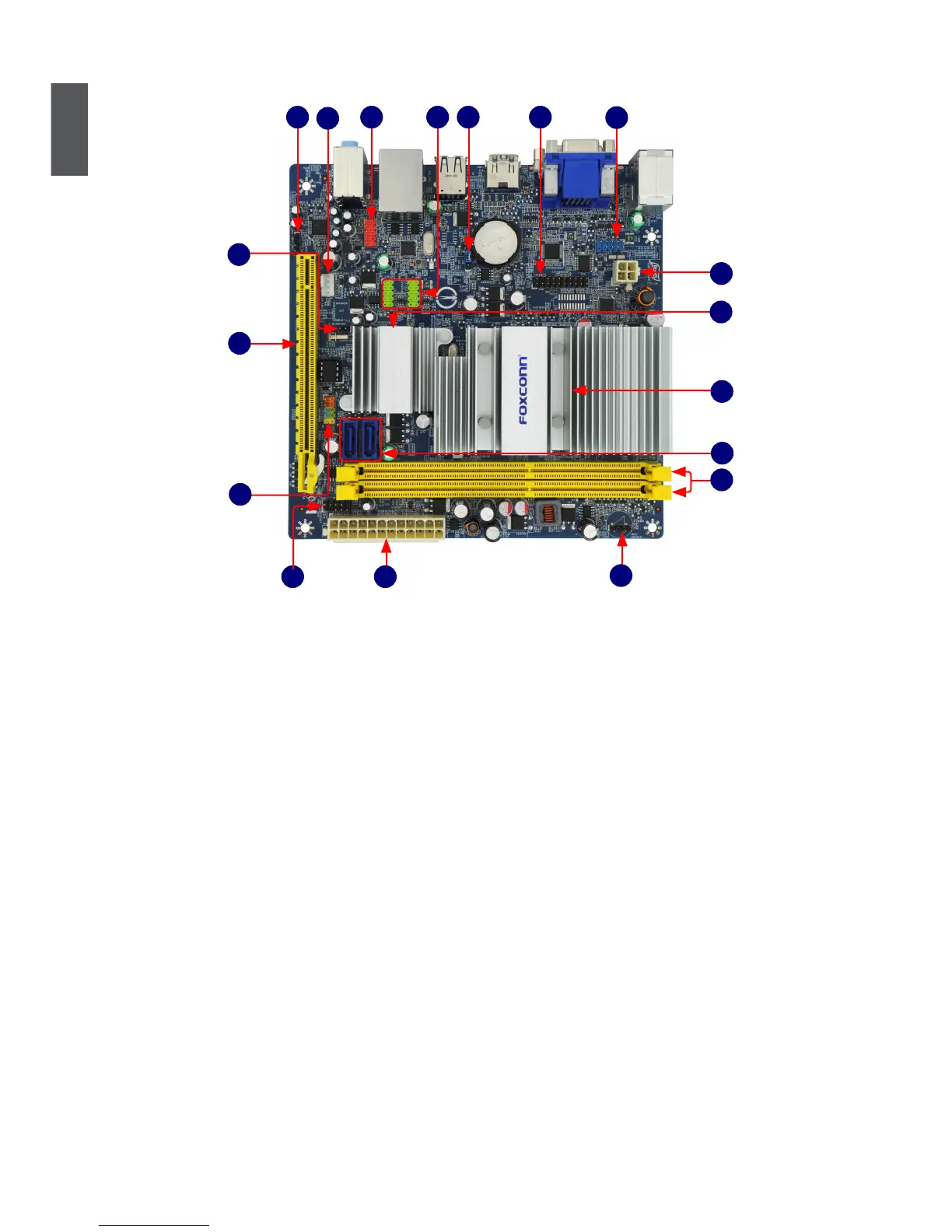

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. COM Connector
2. TPM Connector
3. Clear CMOS Jumper
4. Front USB Connectors
5. Front Audio Connector
6. System Fan Header
7. SPDIF_OUT Connector
8. Chassis Intrusion Alarm Header
9. PCI Express x16 Slot
10. Front Panel Connector
11. CIR Connector
12. 24-pin ATX Power Connector
13. Speaker Connector
14. DDR3 DIMM Slots
15. SATA Connectors
16. Zacate Dual Core APU
17. Chipset: Hudson D1
18. 4-pin ATX 12V Power Connector
11
17
12
13
14
18
16
1
5
9
8
10
6
2
3
47
15
