• Mounting Steps

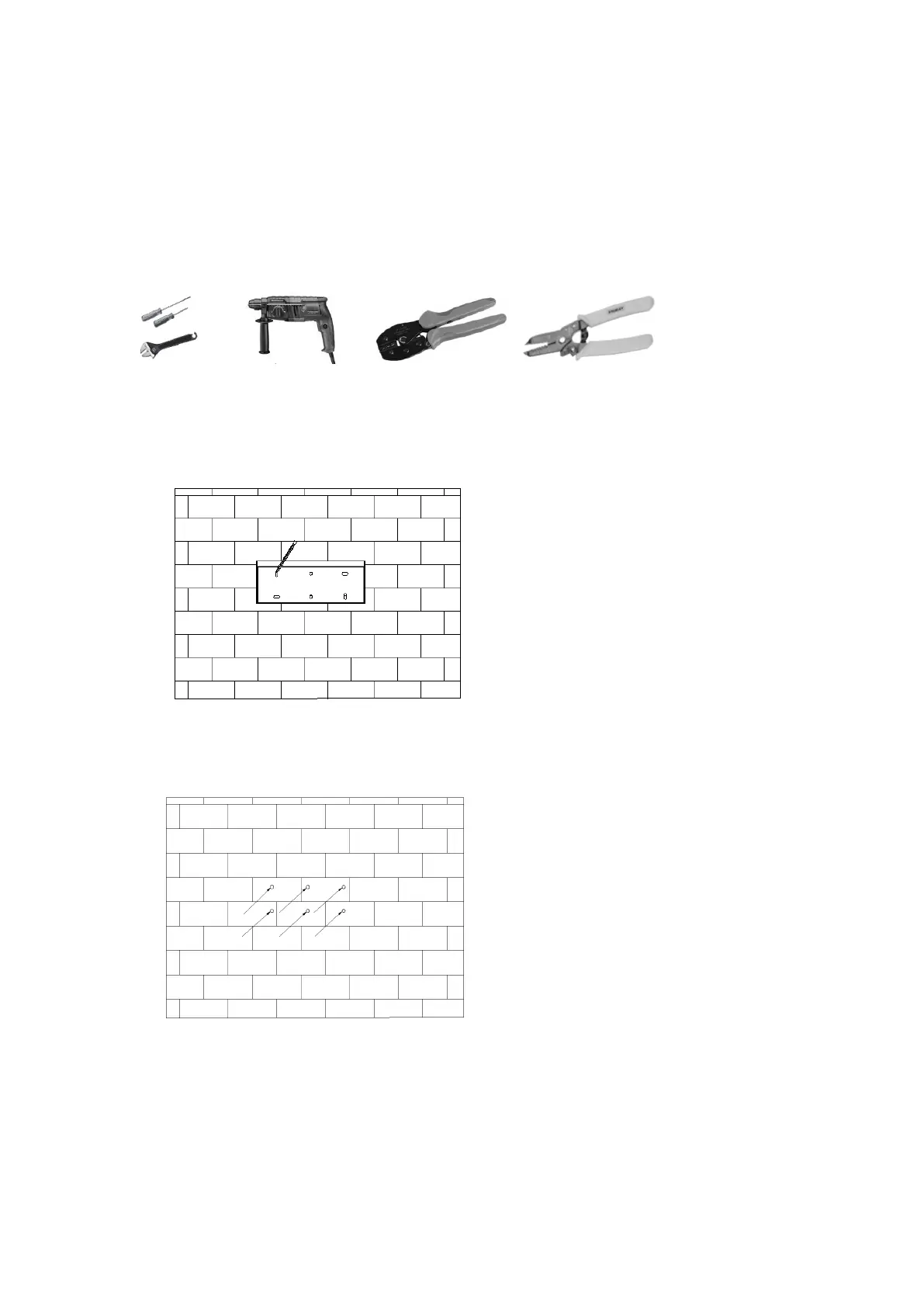

Tools required for installation:
- Manual wrench;
- Electric drill (drill bit set 8mm);
- Crimping pliers;
- Stripping pliers;
- Screwdriver.
1. Fix the bracket on the wall
- Choose the place you want to install the inverter. Place the bracket on the wall and mark the
position of the 6 holes from bracket.
- Drill holes with electric drill, make sure the holes are at least 50mm deep and 8mm wide, and then
tighten the expansion tubes.
