5. Installation
5.1 Check for Physical Damage
Make sure the inverter is intact during transportation. If there is any visible damage, such as cracks,
please contact your dealer immediately.
5.2 Packing List

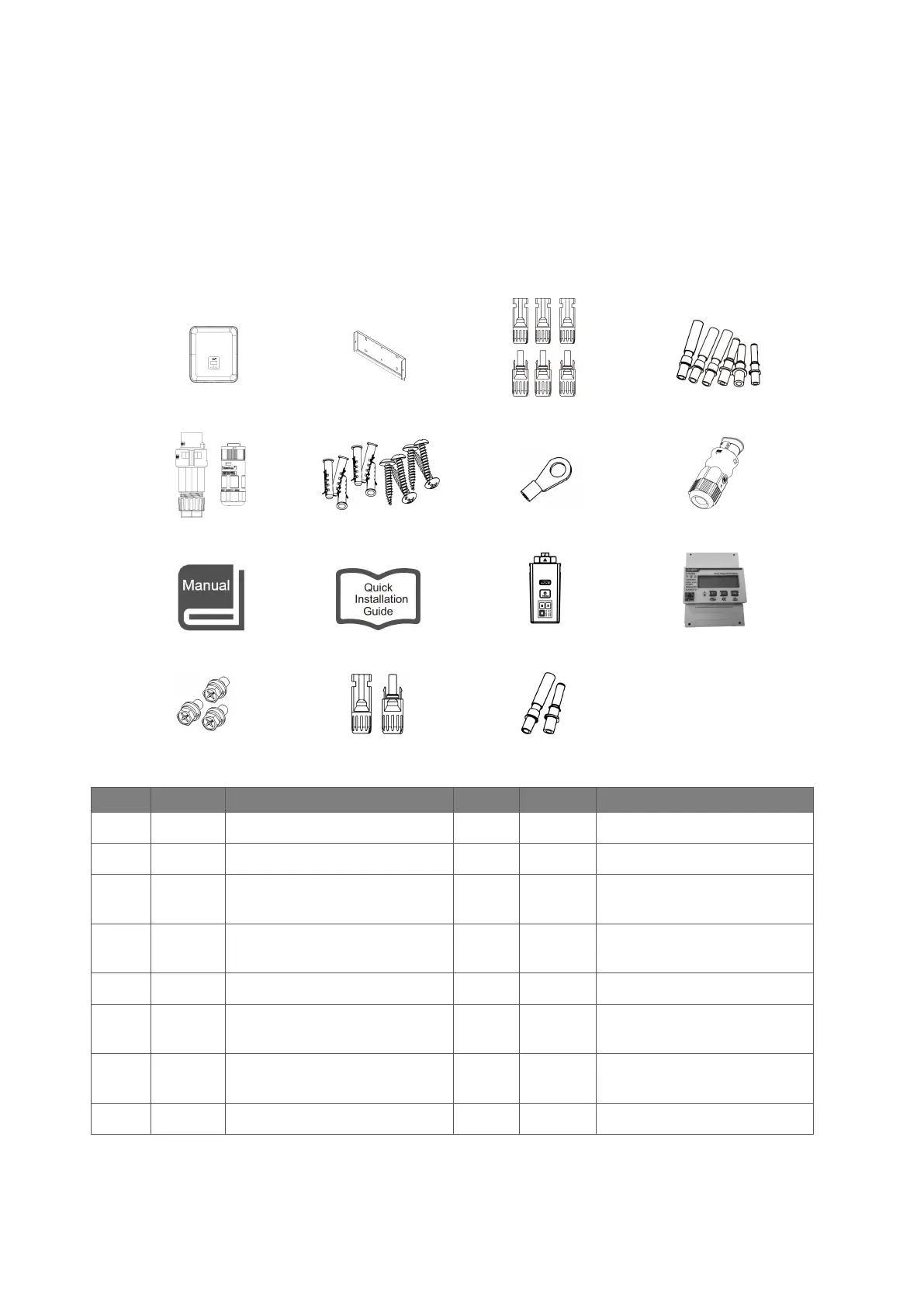

Open the package and take out the product, please check the accessories first. The packing list shown
as below.
M N O
Object Quantity Description Object Quantity Description
A 1 Inverter I 1 Product manual
B 2 Brackets J 1 Quick installation guide
C 6
PV connectors (Only for H3)
(3*positive, 3*negative)
K 1 WiFi/GPRS/LAN (Optional)
D 6
PV pin contacts (Only for H3)
(3*positive, 3*negative)
L 1 Meter
E 2 AC connectors M 3 Hexagonal screws
F 6
Expansion tubes &
Expansion screws
N 2
Battery connectors
(1*positive, 1*negative)
G 1 Earth terminal O 2
Battery pin contacts
(1*positive, 1*negative)
H 1 Communication connector
I J K L
A B C D
E F G H
To Next Page
