29
6.6 EPS Connection (Non-parallel State)

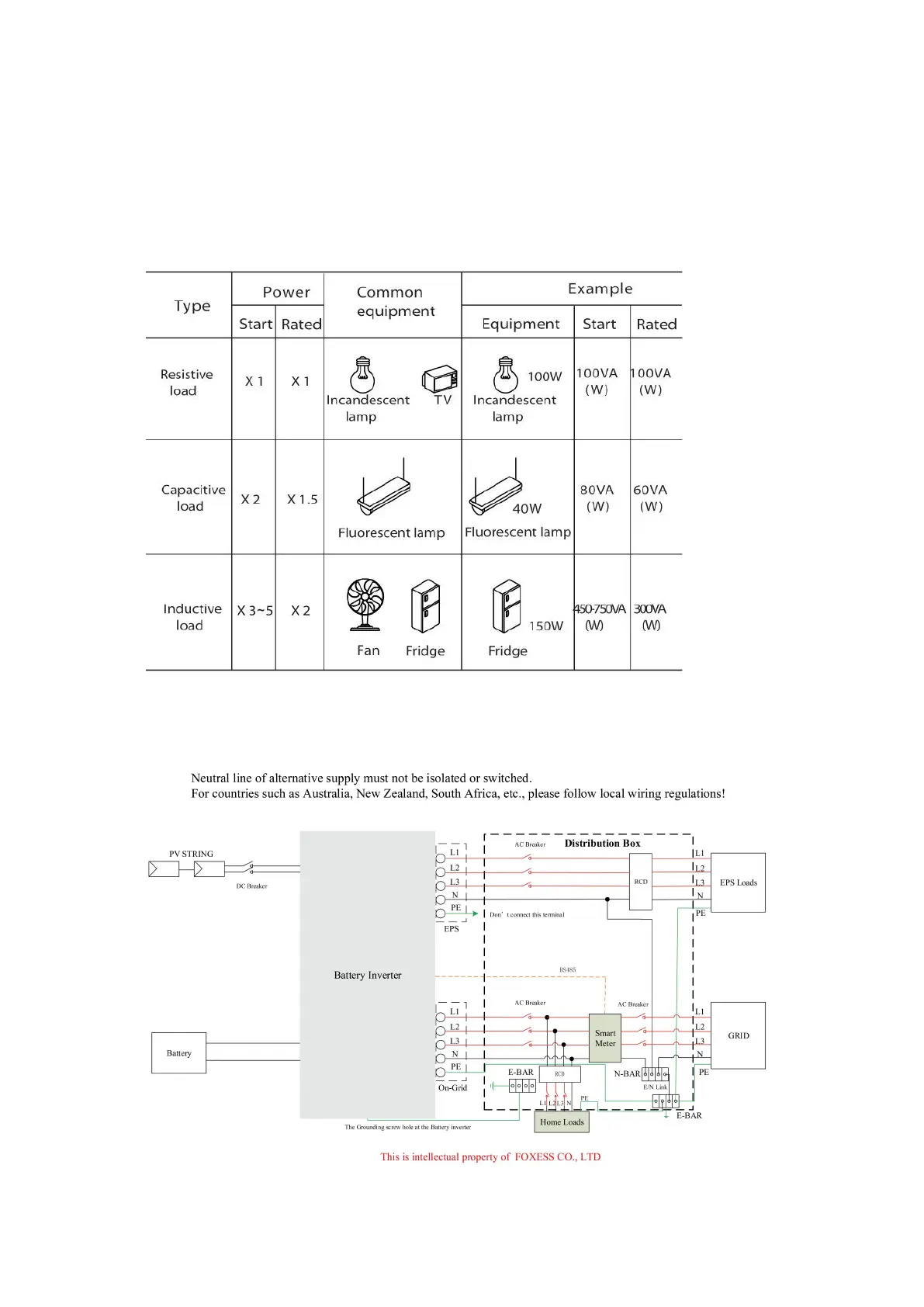

Common loads description
Under EPS mode, if need to connect the inductive load on EPS port, please ensure that the
instantaneous power of the load at startup is lower than the maximum power of the EPS mode. Below
table shows some conventional and reasonable loads for you reference. Please refer to your loads’
manual for the actual specs.
*Unipolar load is not supported.
6.7 System Connection Diagrams
To Next Page
