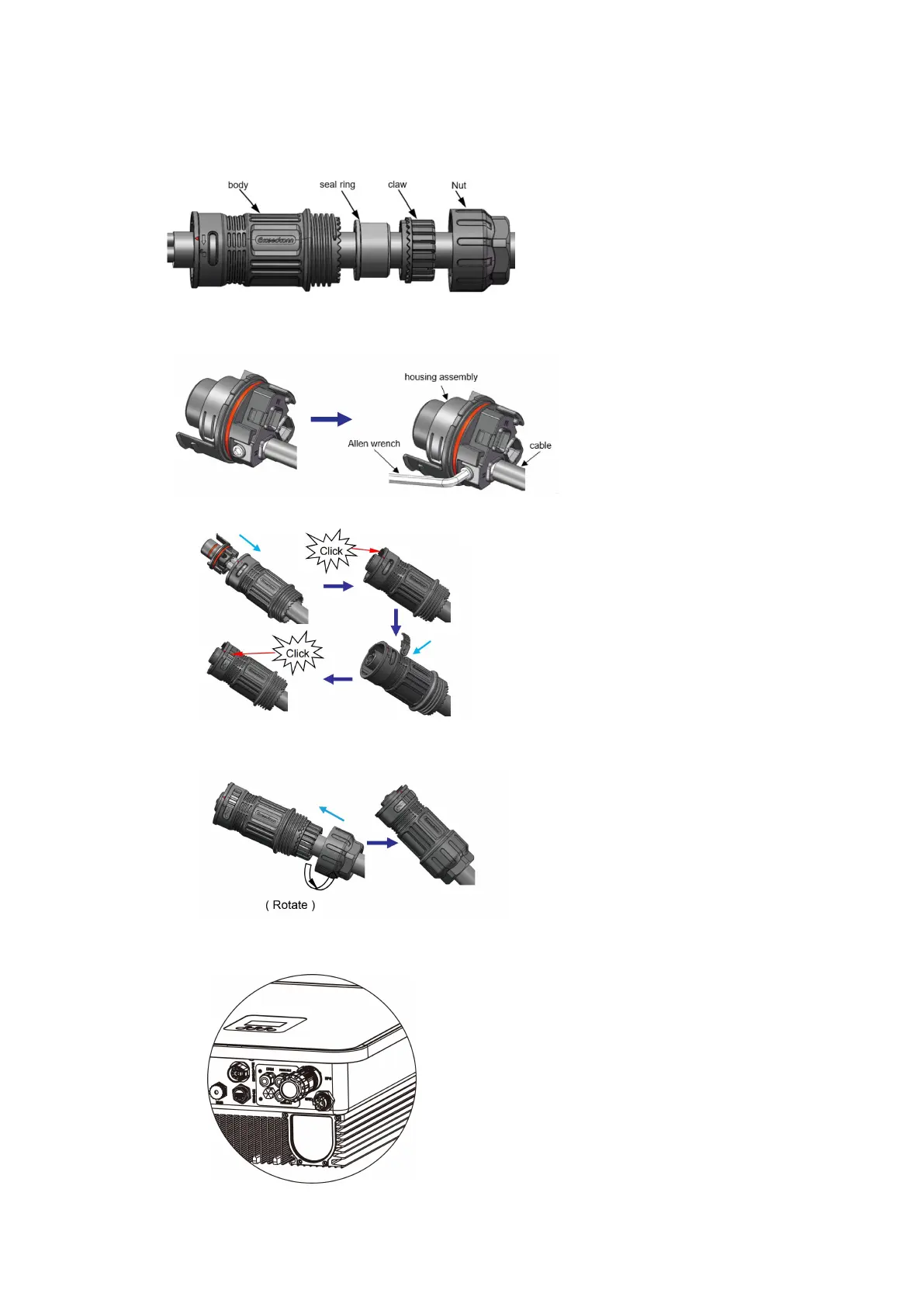

B. EPS Wiring
• Set the parts on the cable one by one
• Wire crimping cord end terminal can be inserted into the housing quickly according to the sign ,
torque 0.7 +/- 0.1N·m.
• The housing is inserted into socket，then the unlock key is inserted into socket
• Insert Seal and Clamp Finger into socket ,then tighten the nut , torque 8+/-2N·m.
• Push the threaded sleeve to connection terminal until both are locked tightly on the inverter.
