6.4 Earth Connection

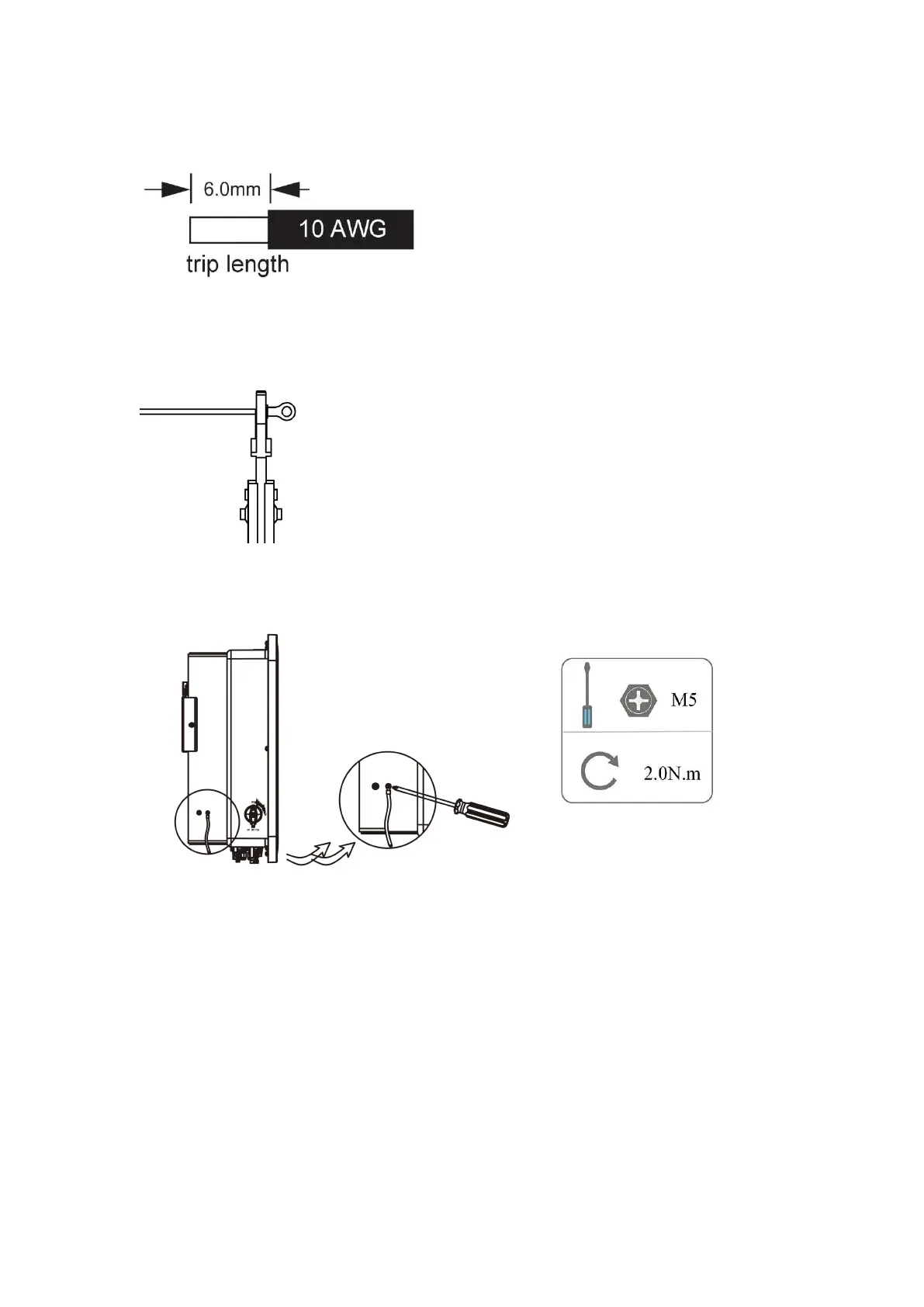

Trim 6mm of insulation from the wire end.
• Insert striped cable into earth terminal and ensure all conductor strands are captured in the earth
terminal.
• Crimp earth terminal by using a crimping plier. Put the earth terminal with striped cable into the
corresponding crimping pliers and crimp the contact.
Use the crimping pliers to press the ground cable into the ground terminal, screw the ground screw with
screwdriver as shown below:
