FoxESS KH10 - Page 28

25
• BMS

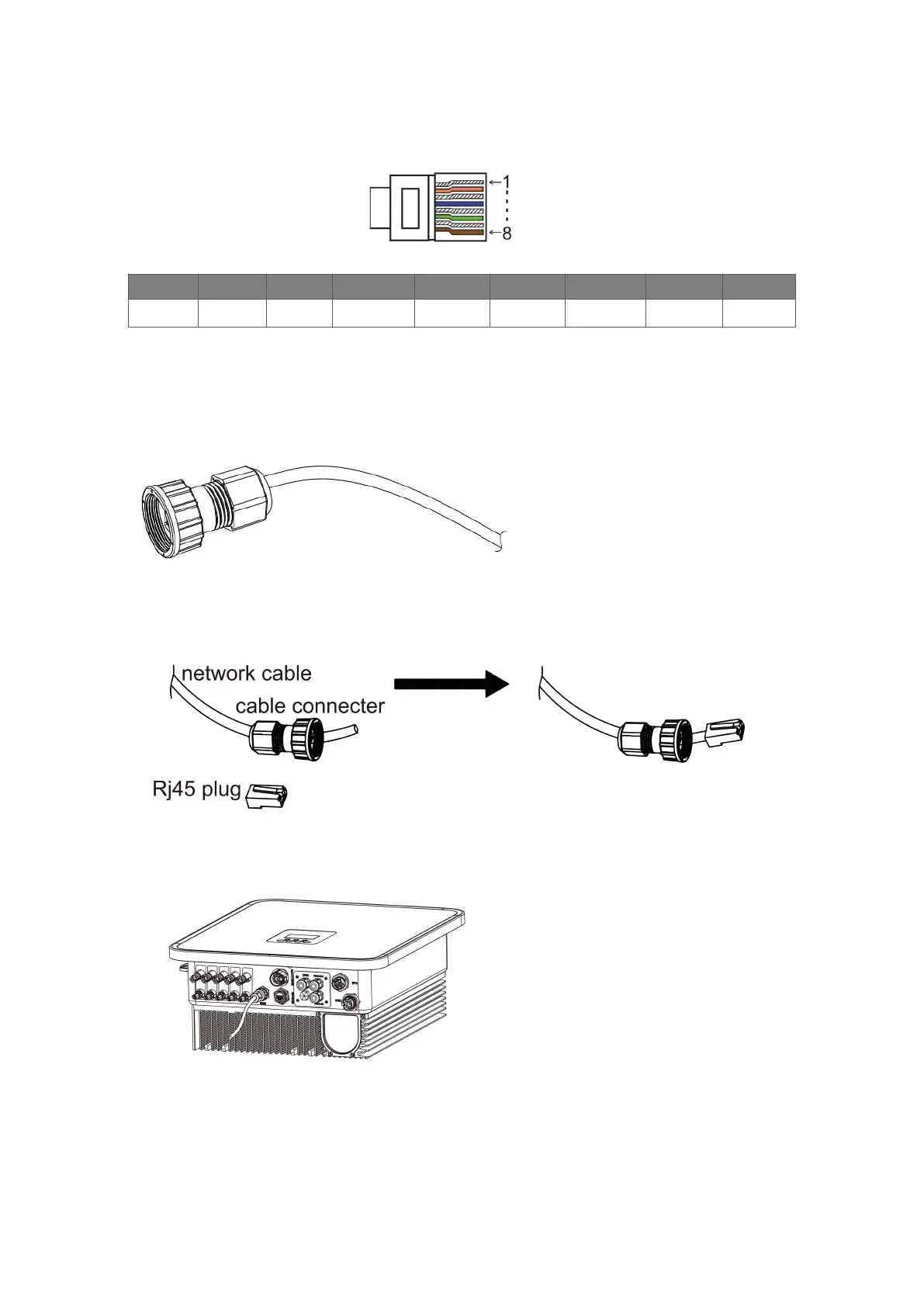

Communication interface between inverter and battery is RS485 or CAN with a Rj45 connector.
PIN
1
2
3
4
5
6
7
8
Definition
GND
GND
BMS-485B
BMS-CANL
BMS-CANH
BMS-CANH
BMS-CANL
BMS-485A
Connection steps:
Step 1: Prepare a standard network cable and cable connector, then insert the network cable through the
cable connector.
Step 2: Crimp the cable with a Rj45 plug which is inside of the cable connector.
Step 3: Insert the cable connector into BMS port at the bottom of inverter and screw it tightly.
