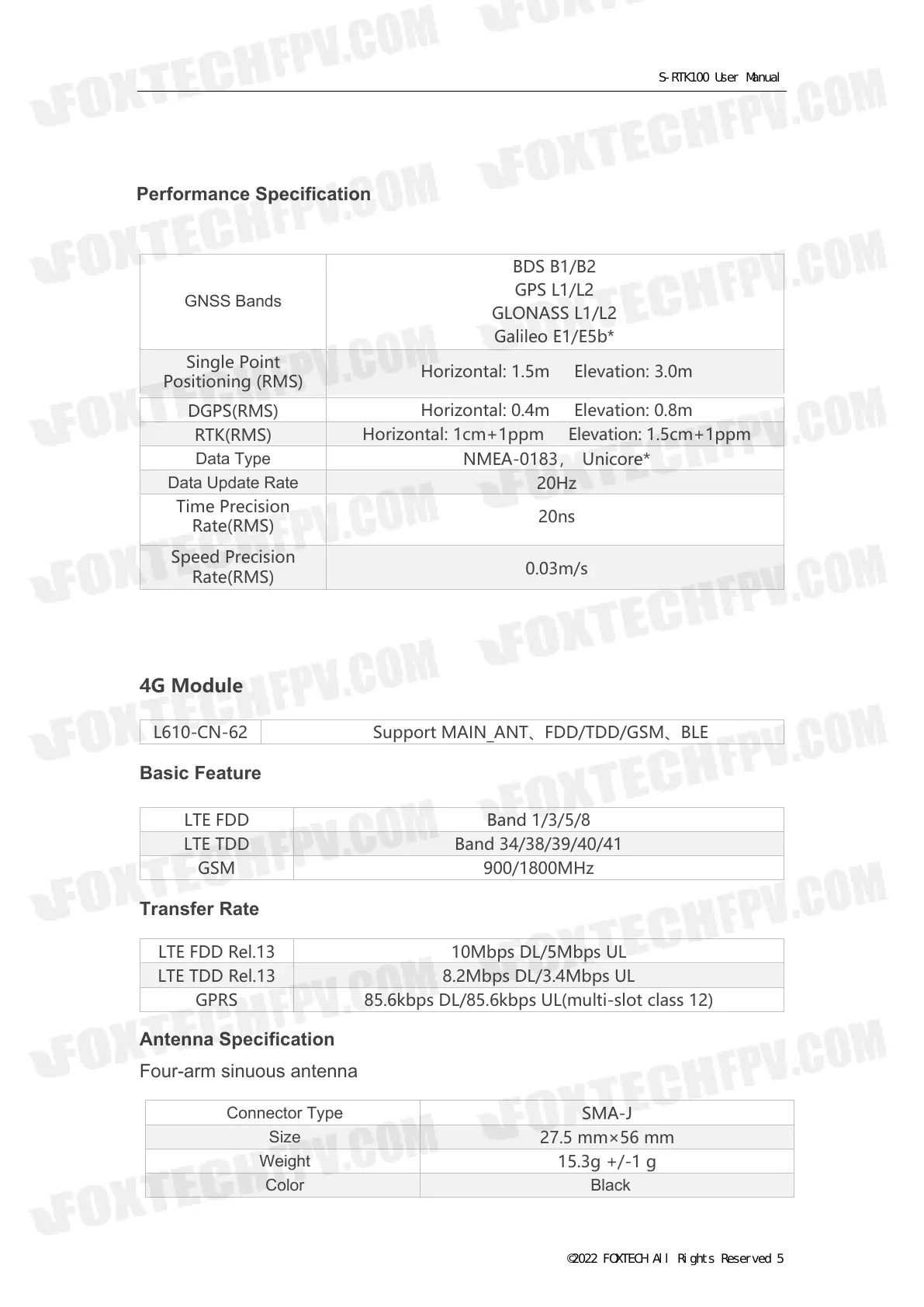

Foxtech S-RTK100 - Performance Specification; 4 G Module; Basic Feature; Transfer Rate

4G Module
Basic Feature
Transfer Rate
Antenna Specification
Four-arm sinuous antenna
Single Point
Positioning (RMS)
Horizontal: 1.5m Elevation: 3.0m
DGPS(RMS)
Horizontal: 0.4m Elevation: 0.8m
RTK(RMS)
Horizontal: 1cm+1ppm Elevation: 1.5cm+1ppm
Data Type
NMEA-0183， Unicore*
Data Update Rate
20Hz
Time Precision
Rate(RMS)
20ns
Speed Precision
Rate(RMS)
0.03m/s
L610-CN-62
Support MAIN_ANT、FDD/TDD/GSM、BLE
LTE FDD Band 1/3/5/8
LTE TDD Band 34/38/39/40/41
GSM 900/1800MHz
LTE FDD Rel.13 10Mbps DL/5Mbps UL
LTE TDD Rel.13 8.2Mbps DL/3.4Mbps UL
GPRS 85.6kbps DL/85.6kbps UL(multi-slot class 12)
Connector Type
SMA-J
Size
27.5 mm×56 mm
Weight
15.3g +/-1 g
Color Black
GNSS Bands
BDS B1/B2
GPS L1/L2
GLONASS L1/L2
Galileo E1/E5b*
Performance Specification
S-RTK100 User Manual
©2022 FOXTECH All Rights Reserved 5
