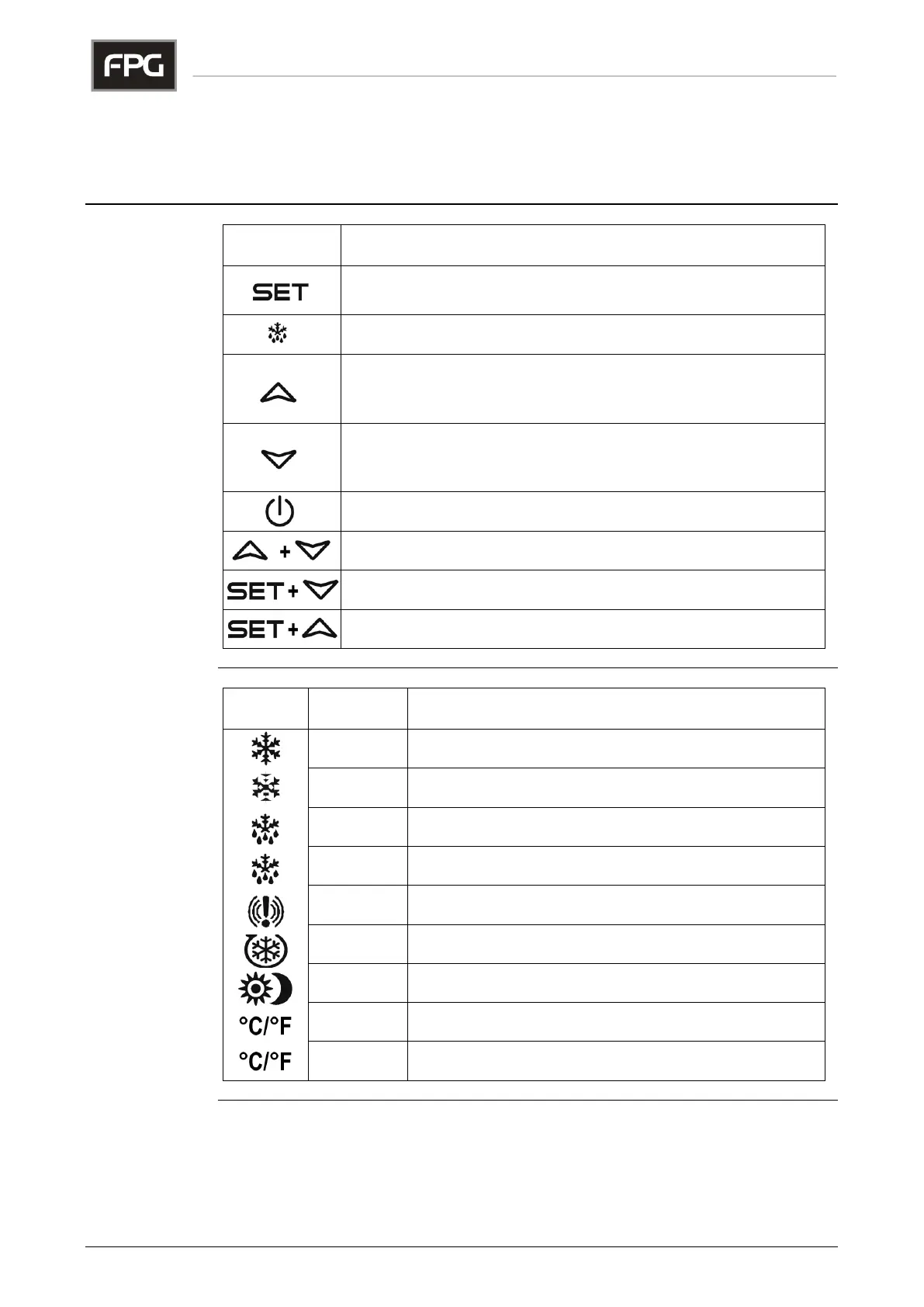

REFRIGERATED CABINETS - SERVICING
XR40CX Key
Functions
KEY
FUNCTION
To display target set point; in programming mode it selects
a parameter or confirm an operation
(DEF) To start a manual defrost
(UP): To see the max. stored temperature; in
programming mode it browses the parameter codes or
increases the displayed value
(DOWN): To see the min stored temperature; in
programming mode it browses the parameter codes or
decreases the displayed value
To switch the instrument off, if onF = oFF. Not enabled
To lock & unlock the keyboard
To enter into programming mode
To return to the temperature display mode
XR40CX LED
Functions
LED
MODE
FUNCTION
ON
Compressor enabled
Flashing
Anti-short cycle delay enabled
ON
Defrost enabled
Flashing
Drip time in progress
ON
An alarm is occurring
ON
Continuous cycle is running
ON
Energy saving enabled
ON
Measurement unit
Flashing
Programming phase
