FPI P36-3 Zero Clearance Direct Vent Gas Fireplace 17
INSTALLATION
When installing the optional Barcelona Front or Palace Series, a non-combustible material 12" (305mm) above the unit and 6" (153mm) on each
side must be used. See diagram 1.
The Barcelona Front and Palace Series also requires steel stud framing above and on each side of the unit. See diagram 1.

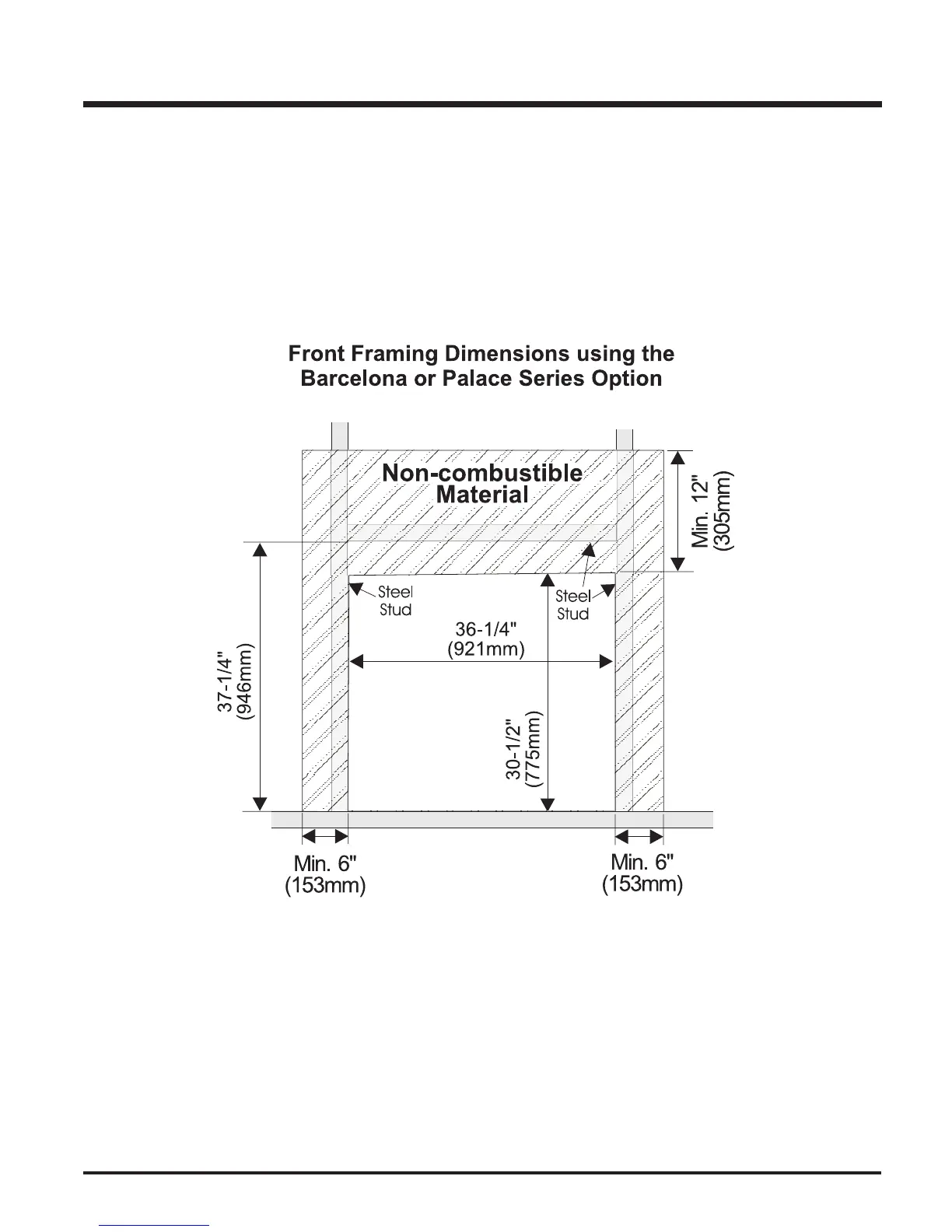

Diagram 1
BARCELONA & PALACE SERIES FRAMING NOTE
