FPI P36-3 Zero Clearance Direct Vent Gas Fireplace 27
INSTALLATION
• Vent must be supported at offsets.
• Firestops are required at each floor level and
whenever passing through a wall.
• Maintain clearances to combustibles.
Note: Must use optional rigid pipe adaptor when
using rigid pipe vent systems (Part # 510-994).
RIGID PIPE VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
(Propane & Natural Gas)

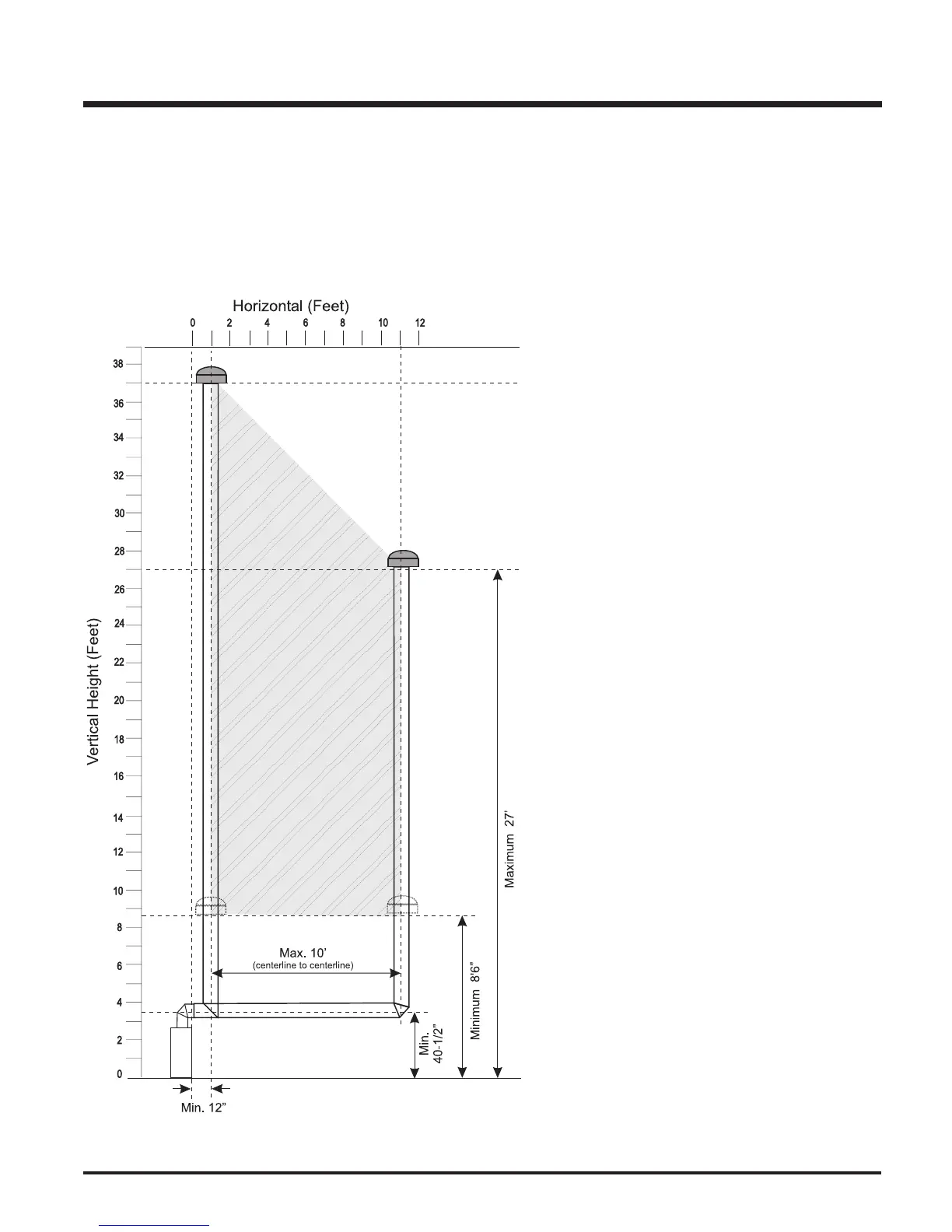

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using two 90
o
elbow, with
Rigid Pipe vent systems for Propane and Natural Gas.
