FPI P36-3 Zero Clearance Direct Vent Gas Fireplace 67
PARTS LIST

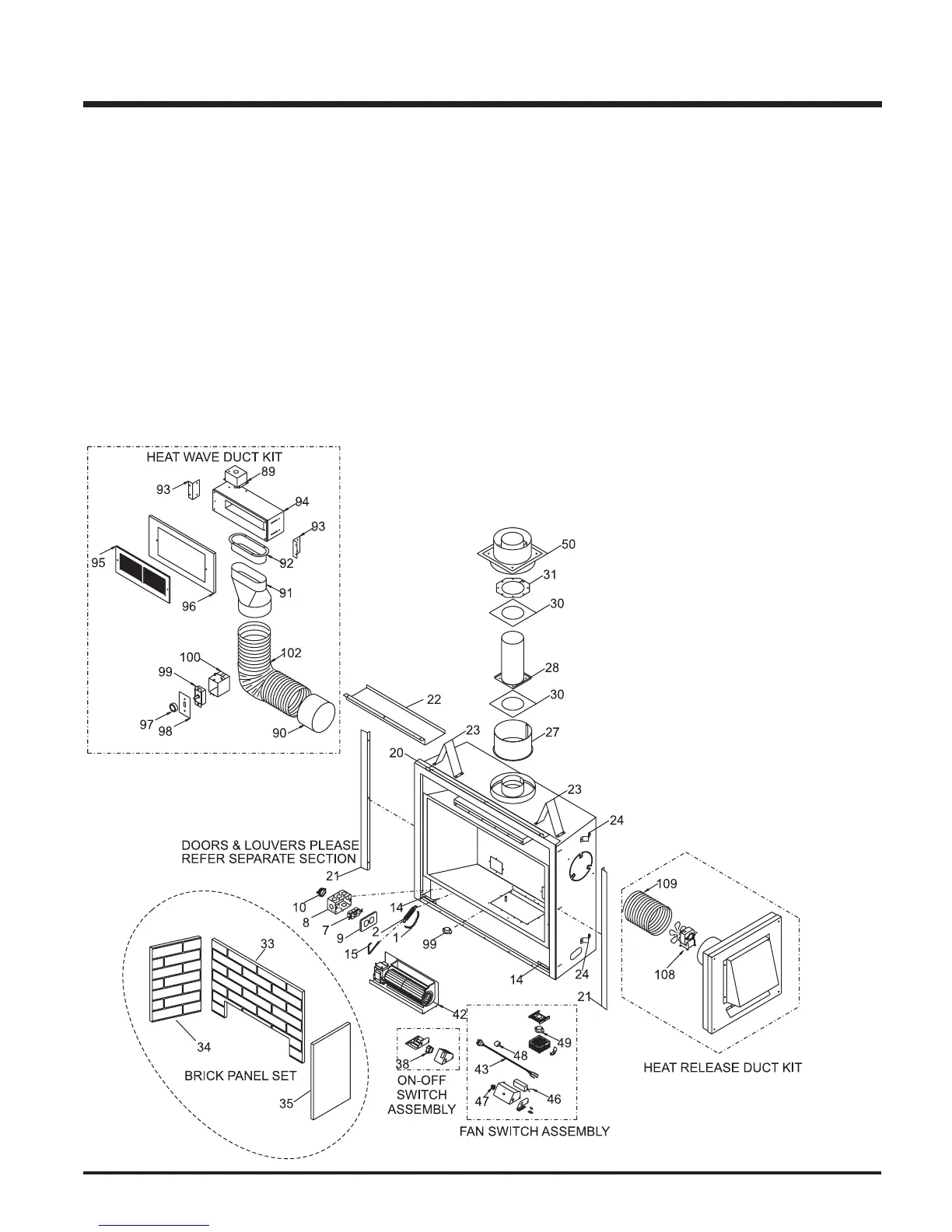

MAIN ASSEMBLY
Part # Description
Part # Description
Part # Description
1) 948-045 Chain
2) 948-025 Spring
7) 910-428 Duplex Receptacle
8) 910-429 Box - Receptacle
9) 910-430 Cover - Receptacle
10) 904-687 Clamp Connector
14) 510-026 Hinge Bracket - Left/Right
15) 948-253 Door Handle
20) 510-033 Top Nailing Strip
21) 510-064 Side Nailing Strip
22) 510-153 Baffle Plate
23) 510-011 Standoff - Top
24) 511-044 Standoff - Side/Back
27) * Outer Flue Collar
28) * Inner Flue Collar Assy
30) * Gasket for Flue Collar
31) * Flue Mounting Plate
513-928 Brick Panel Set - Standard
513-901 Brick Panel Set - Standard
Brown
513-902 Brick Panel Set - Standard Red
513-903 Brick Panel Set - Herringbone
Brown
513-904 Brick Panel Set - Herringbone
Red
33) * Brick Panel - Back
34) * Brick Panel - Left
35) * Brick Panel - Right
511-031 Brick Clips (each)
432-967 Burner On/Off Switch Assy
38) 910-241 Switch - Burner On/Off
910-899 Wire Harness-Valve to Burner
432-917 Fan Assembly 120 V
(Optional)
42) 910-331/P Fan Motor (120 V)
432-966 Fan Switch Assembly
(120 Volts) (Optional)
43) 910-813 Power Cord (120 Volts)
46) 910-330 Fan Speed Control Switch
47) 904-586 Knob - Speed Control
49) 910-142 Thermodisc - Fan Auto On/Off
904-713 U-clip at louver
50) 510-994 Rigid Pipe Adaptor
946-556 Heat Wave Duct Kit (Optional)
89) 946-004 Junction Box
90) 946-000 Round Duct Adaptor
91) 946-002 Round to Oval Adaptor
92) 946-001 Oval Duct Adaptor
93) 946-007 Angle Bracket
94) 946-517/P Fan Assembly - Heat Wave
95) 946-006 Grill Plate - White
96) 946-005/01 Wall Adaptor Plate - White
97) 910-417 Knob - White
98) 910-366 Switch Cover Plate - White
99) 910-412 Fan Speed Controller
100)910-367 Box - Plastic Switch
Receptacle
102)946-010 Flexible Air Duct
946-038 Insulation 6" Dia. x 24"
946-570 Heat Release Duct Kit
(Optional)
108)910-165 Fan (120 V)
109)946-000 Flexible Air Release Duct
918-062 Manual
512-969 Conversion Kit - NG to LP
*Not available as a replacement part.
