FPI P36-3 Zero Clearance Direct Vent Gas Fireplace
68

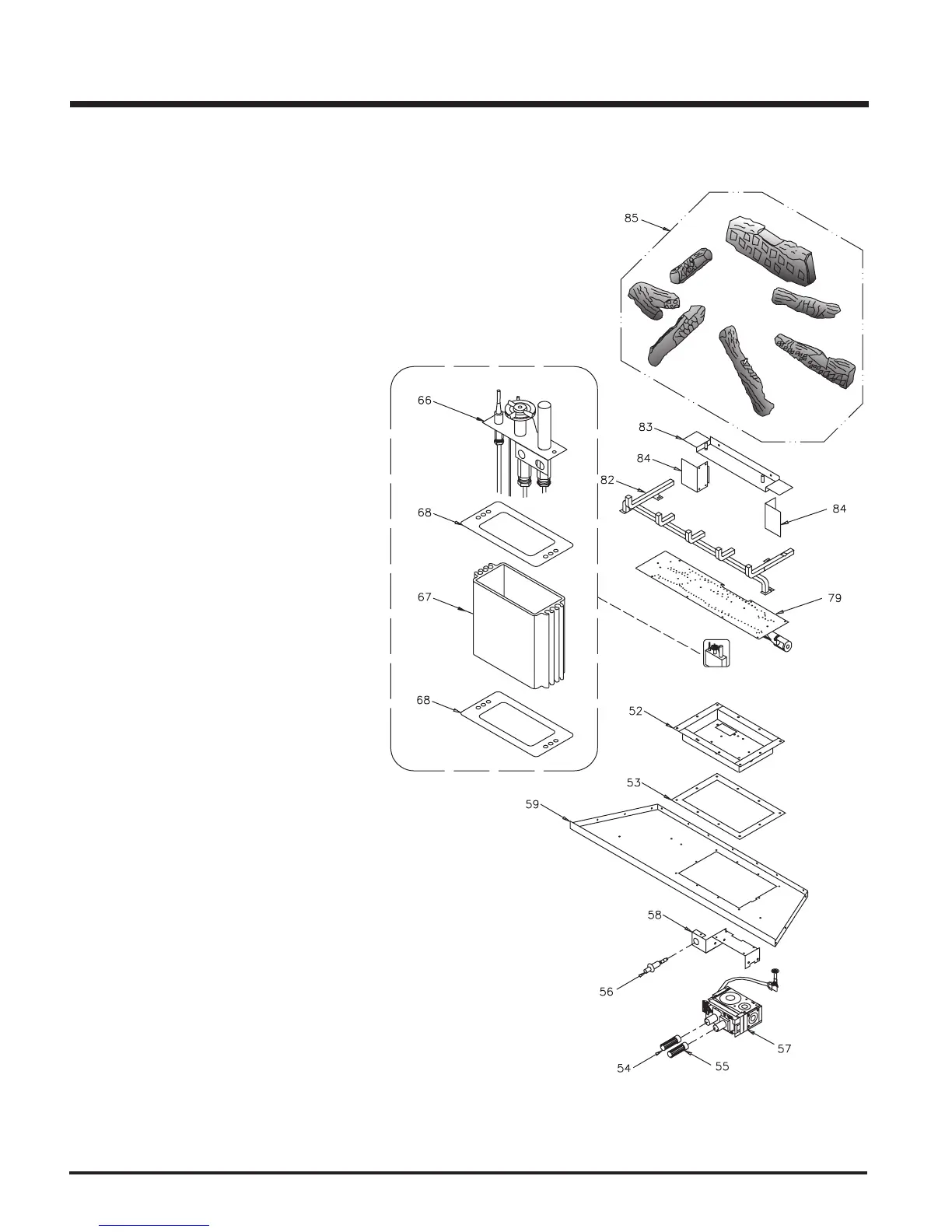

PARTS LIST
BURNER ASSEMBLY & LOG SET
Part # Description
513-574/P Valve Assy - Natural Gas
513-576/P Valve Assy - Propane
52) * Valve Tray - NG/LP
53) 430-055 Gasket - Valve Access
Plate
54) 910-421 Pilot ON/OFF 3" Extension
Knob
55) 910-422 HI/LOW 3" Extension Knob
56) 910-190 Piezo Ignitor
57) 910-378 SIT Valve - Natural Gas
910-380 SIT Valve - Propane
58) * Valve Bracket
59) * Firebox Base
66) 910-038 Pilot Assy - S.I.T. -
3 Flame NG
910-039 Pilot Assy - S.I.T. -
3 Flame LP
67) * Pilot Holder
68) W840470 Pilot Assembly Gasket
904-240 Orifice #37 - Natural Gas
904-390 Orifice #52 - Propane
936-170 Orifice Gasket
910-036 Pilot Orifice NG
910-037 Pilot Orifice LP
79) 512-525 Burner Assy
82) 511-030 Burner Grate Assy
83) 430-101 Rear Log Support Bracket
84) * Deflector
85) 512-930 Log Set
*Not available as a replacement part.
