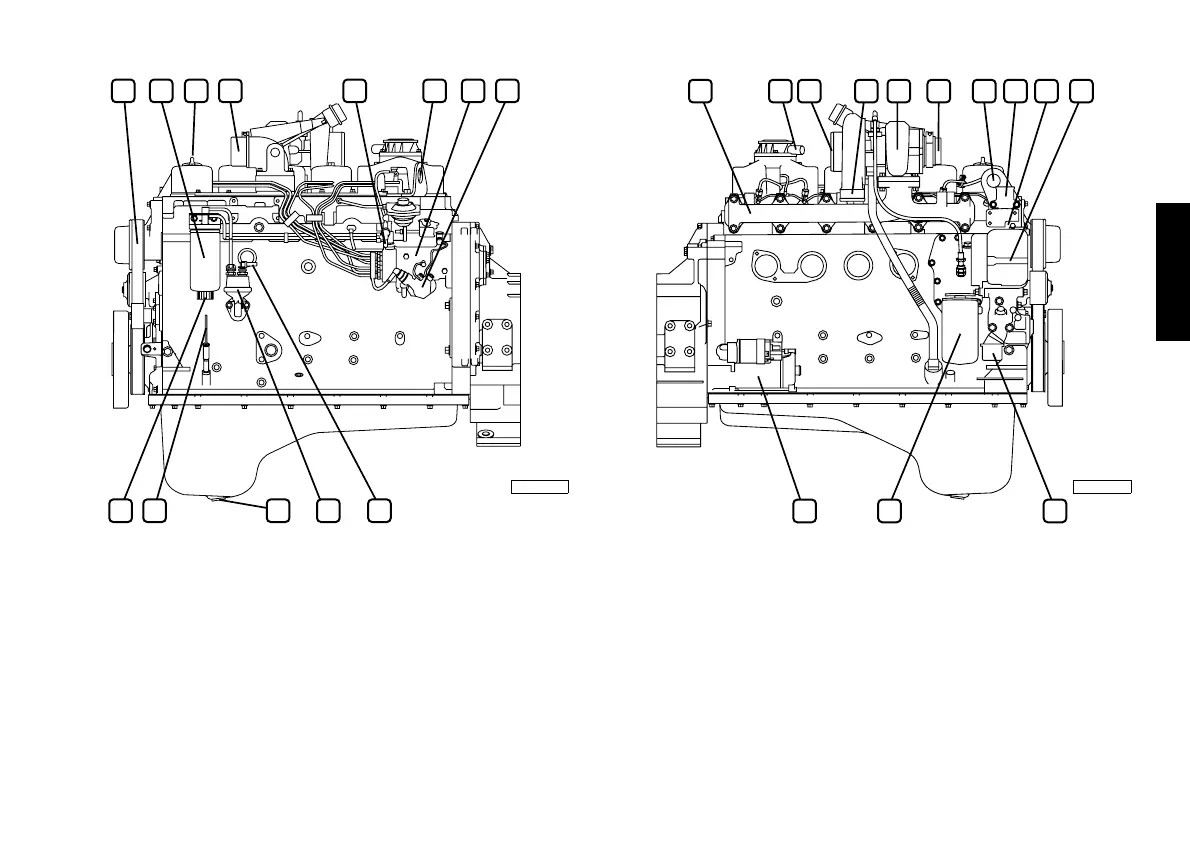

Engine N67 MNA/MSA - N67 MNT/MST
1. Auxiliary member drive belt - 2. Fuel filter - 3. Oil filler cap - 4.
Engine intake manifold - 5. Fuel outlet connector to tank - 6. Lifting
U-bolt - 7. Injection pump - 8. Cold injection timing variator -
9. Fuel inlet manifold from tank - 10. Fuel supply pump - 11. Oil
drainage plug - 12. Oil dipstick - 13. Fuel filter condensation drainage
plug.
EngineN67 MNA/MSA - N67 MNT/MST
1. Exhaust manifold - 2. Oil vapour bleeder - 3. Turbocharger air
inlet - 4. Turbocharging air outlet (*) - 5. Turbocharger (*) - 6.
Turbocharger exhaust outlet (*) - 7. Lifting U-bolt - 8. Engine
coolant outlet - 9. Location of thermostat valve - 10. Alternator -
11. Engine coolant inlet - 12. Lubricant oil filter - 13. Electrical
starter motor.
(*) Only for versions MNT/MST
  
       
