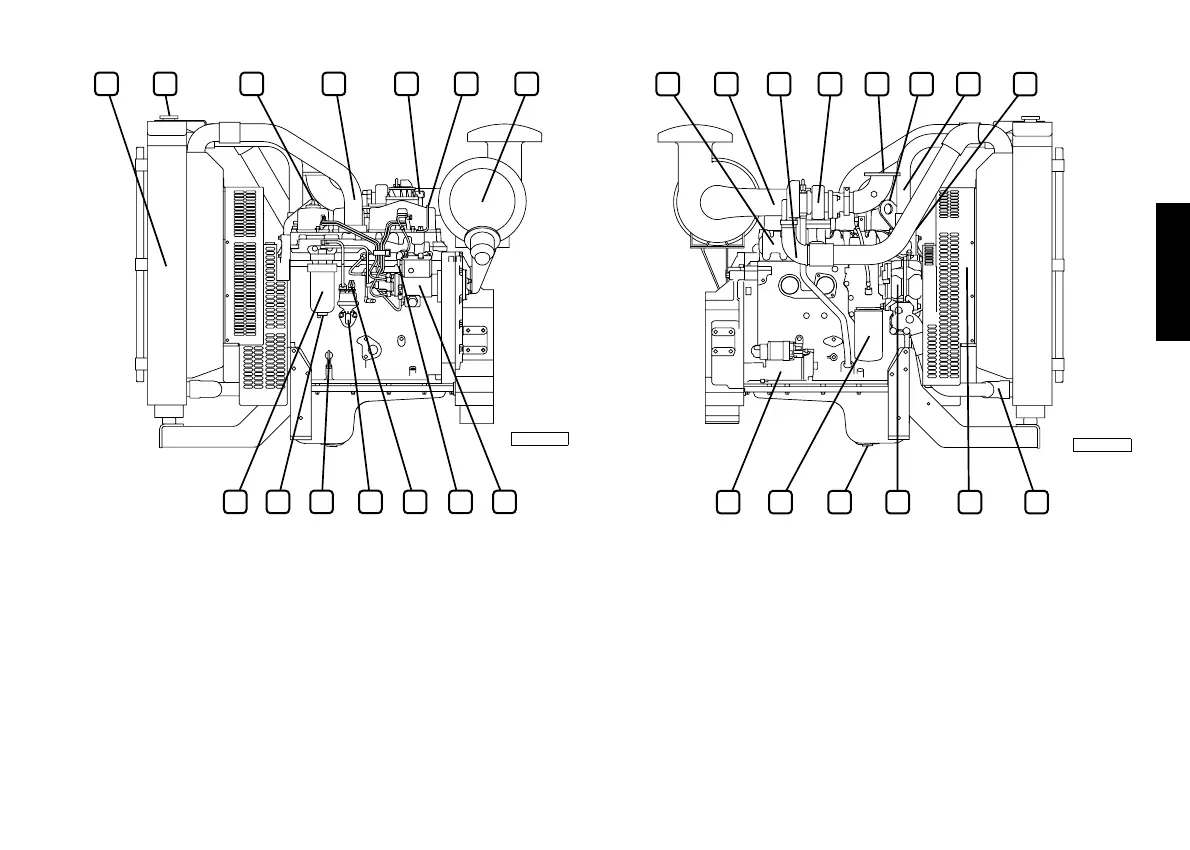

Engine NEF 45 SM - TM
1. Heat exchanger/s - 2. Coolant filler cap - 3. Oil filler cap - 4.
Engine air inlet manifold - 5. Oil vapour bleeder - 6. Lifting U-bolt -
7. Air filter - 8. Injection pump - 9. Fuel outlet connector to tank -
10. Fuel inlet manifold from tank - 11. Hand pump - 12. Oil dipstick
- 13. Fuel filter condensation drainage plug - 14. Fuel filter.
*) Excluding versions SM
EngineNEF 45 SM - TM
1. Exhaust manifold - 2. Turbocharger air intake - 3. Turbocharging
air outlet - 4. Turbocharger- 5. Exhaust outlet - 6. Lifting U-bolt -
7. Coolant outlet manifold from engine - 8. Location of thermostat
valve - 9. Engine coolant inlet connector sleeve - 10. Fan -
11. Alternator - 12. Lubricant oil discharge plug - 13. Oil filter -
14. Electrical starter motor.
*) Excluding versions SM

    
  

 
