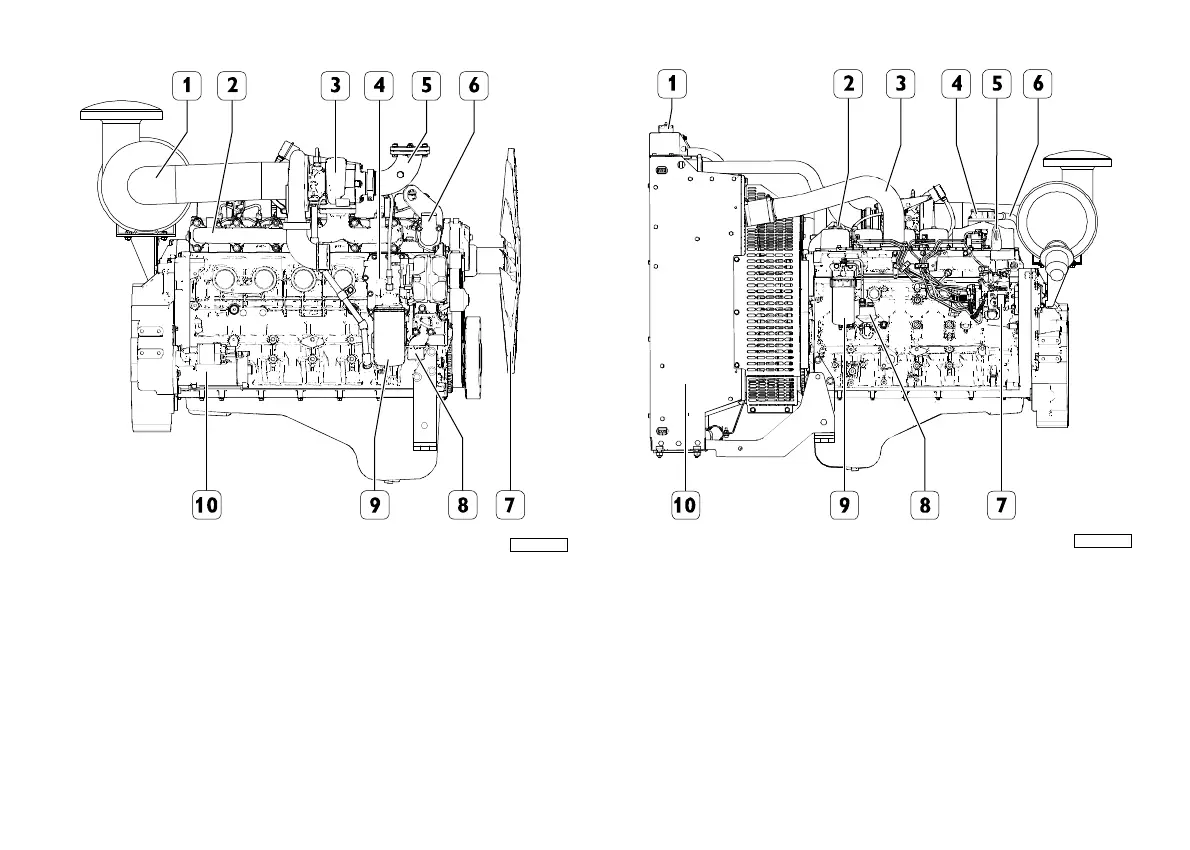

NEF67TM7
1. Comburent air intake duct to turbocharger -2. Exhaust manifold -
3. Turbocharger - 4. Heat exchanger lubricant oil / coolant - 5. Exhaust
gas outlet duct from turbocharger – 6. Engine coolant outlet pipe -
7. Fan (radiator) - 8. Engine coolant inlet pipe - 9. Oil filter – 10. Electric
starter motor.
NEF67TM7
1. Coolant inlet plug - 2. Lubricant oil filler cap - 3. Comburent air
intake duct to engine - 4. Control valve (blow-by) - 5. Lifting eyelet -
6. Oil vapour breather pipe - 7. Rotary fuel supply pump - 8. Fuel
suction pump - 9. Fuel filter - 10. Heat exchanger external air / coolant.
