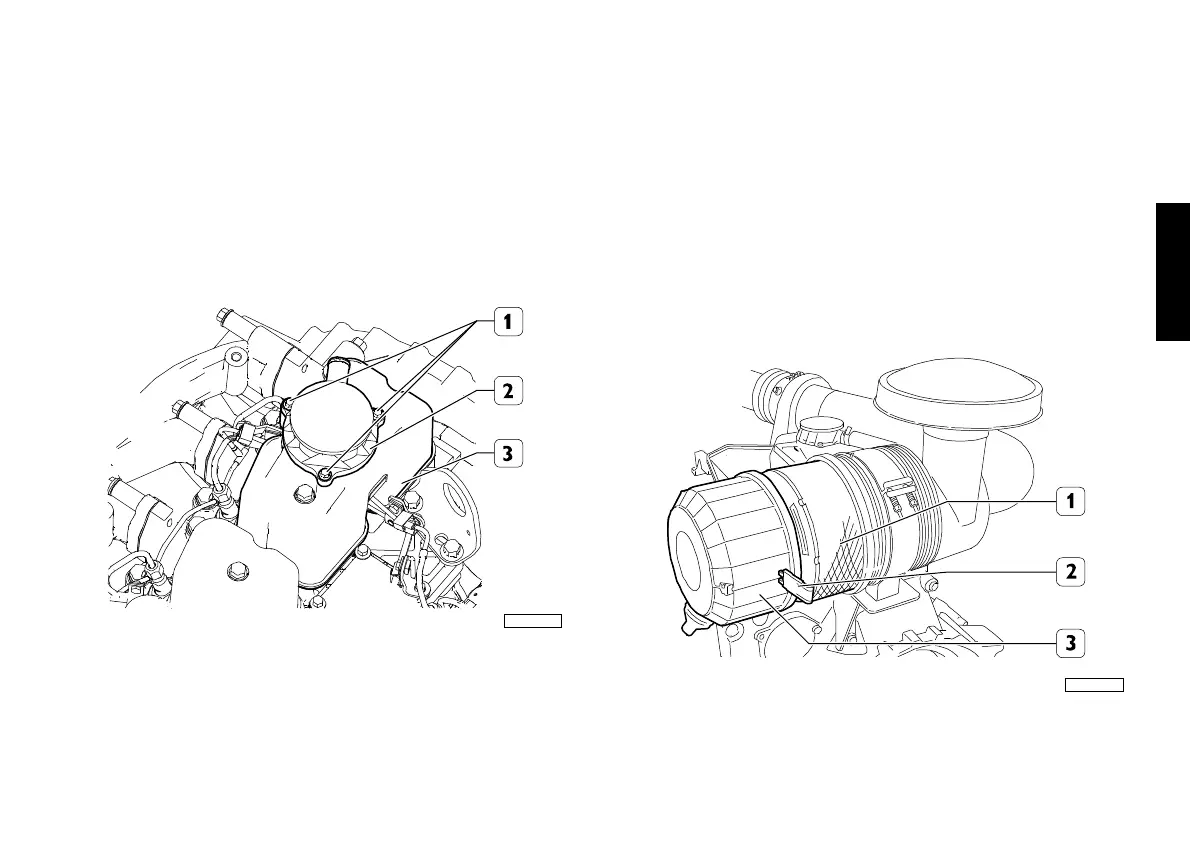

Change blow-by filter
Only proceed when the engine is not turning over.
Disconnect the oil vapour recovery pipe from the blow-by filter (2).
Remove the screws (1) and detach the blow-by filter (2) from the
cylinder tappet cover 5-6 (3).
Clean the contact surfaces carefully.
Install a new seal and fit the blow-by filter (2) on the cylinder tappet
cover 5-6 (3).
Tighten the screws (1).
Change air filter
Only proceed when the engine is not turning over.
 Remove the cover (3) of the air filter after having undone the two
quick release catches (2).
 Remove the filter element (1); make sure that dust does not enter
the sleeve during this operation.
 Replace the filter element and the relative gasket at its base.
 Position the filter element (1) in its seat.
 Replace the cover (3) of the air filter and lock it using the two quick
release catches (2).
14_214_N
14_209_N
