May99/JEB
Page 5 of 16
INSTRUCTION FOR
MAINTENANCE AND REPAIR
FRAMO CARGO PUMP SD100-5
Rev.: A

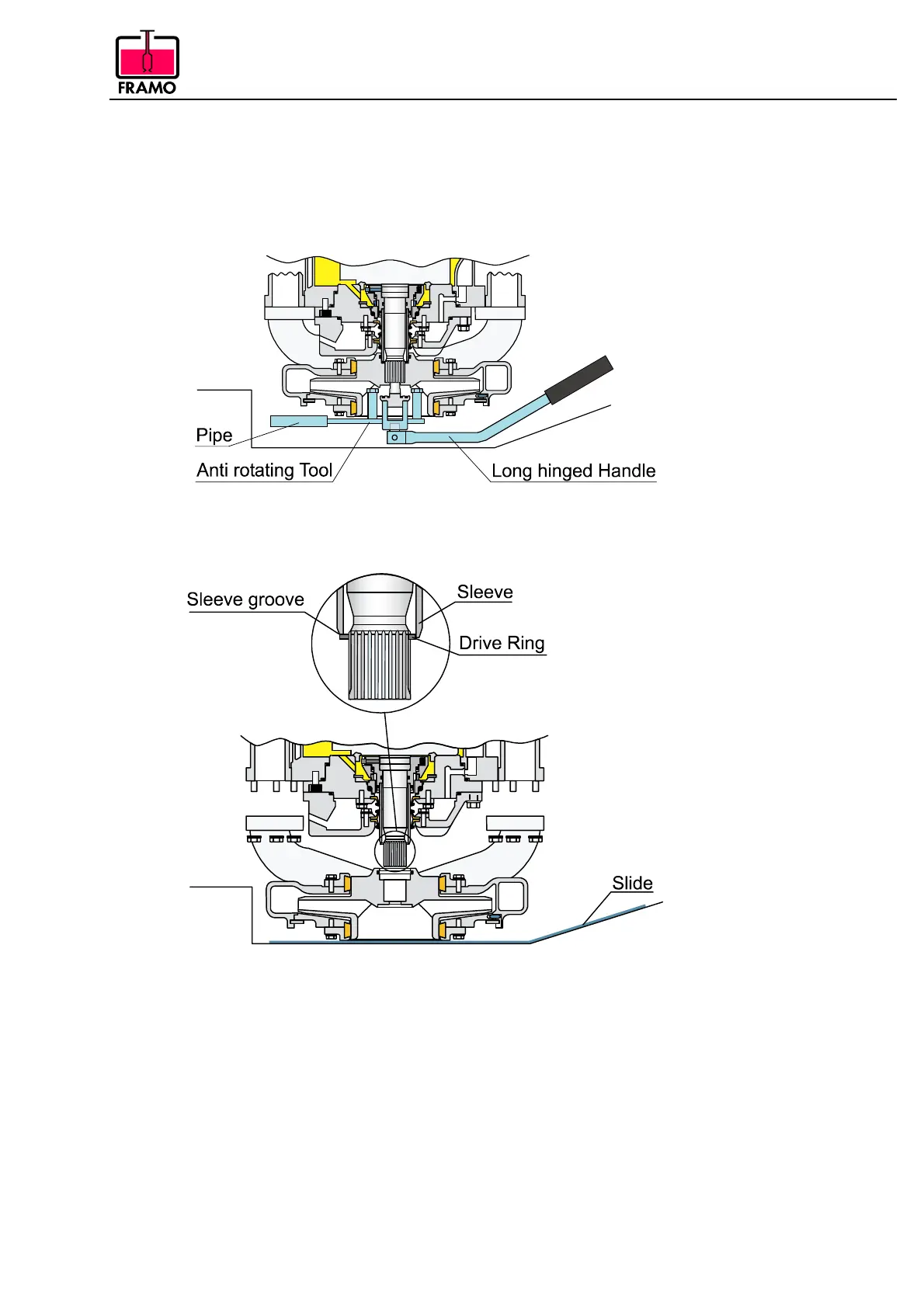

Remove impeller bolt by using the long hinged handle (3038866) with socket (19mm). Use
impeller anti-rotating tool (3041282) to hold the impeller in position. To obtain extra force use
pipe (see fig.3).
Fig. 03
Lower volute casing, impeller and wear-rings in one piece.
Fig. 04
NB! Be careful when lowering the volute casing.
The ceramic sleeve is very brittle and may crack.
Note that drive ring can fall down.
Slide/lift volute casing together with impeller and suction cover out of well. To avoid damage
on suction well coating, volute casing must be placed upon slide. Wear rings can now be
replaced.
