Framo SD100-5 - Dismantling Mechanical Oil Seal and Hydraulic Motor

No. 1000
-
0132
-
4
May99/JEB
Page 9 of 16
INSTRUCTION FOR
MAINTENANCE AND REPAIR
FRAMO CARGO PUMP SD100-5
Rev.: A
2.3 Dismantling of mechanical oil seal and hydraulic motor
Standard tools Special tools
Name Name
Allen key 6 mm
Assembling cylinder
Spanner 16 mm Tool for HP adaptor
Spanner 17 mm Stud bolt, 2 pcs
Snap ring plier Hexagon bolt, 2 pcs
Slide
Before further dismantling, close hydraulic valves on top cover plate

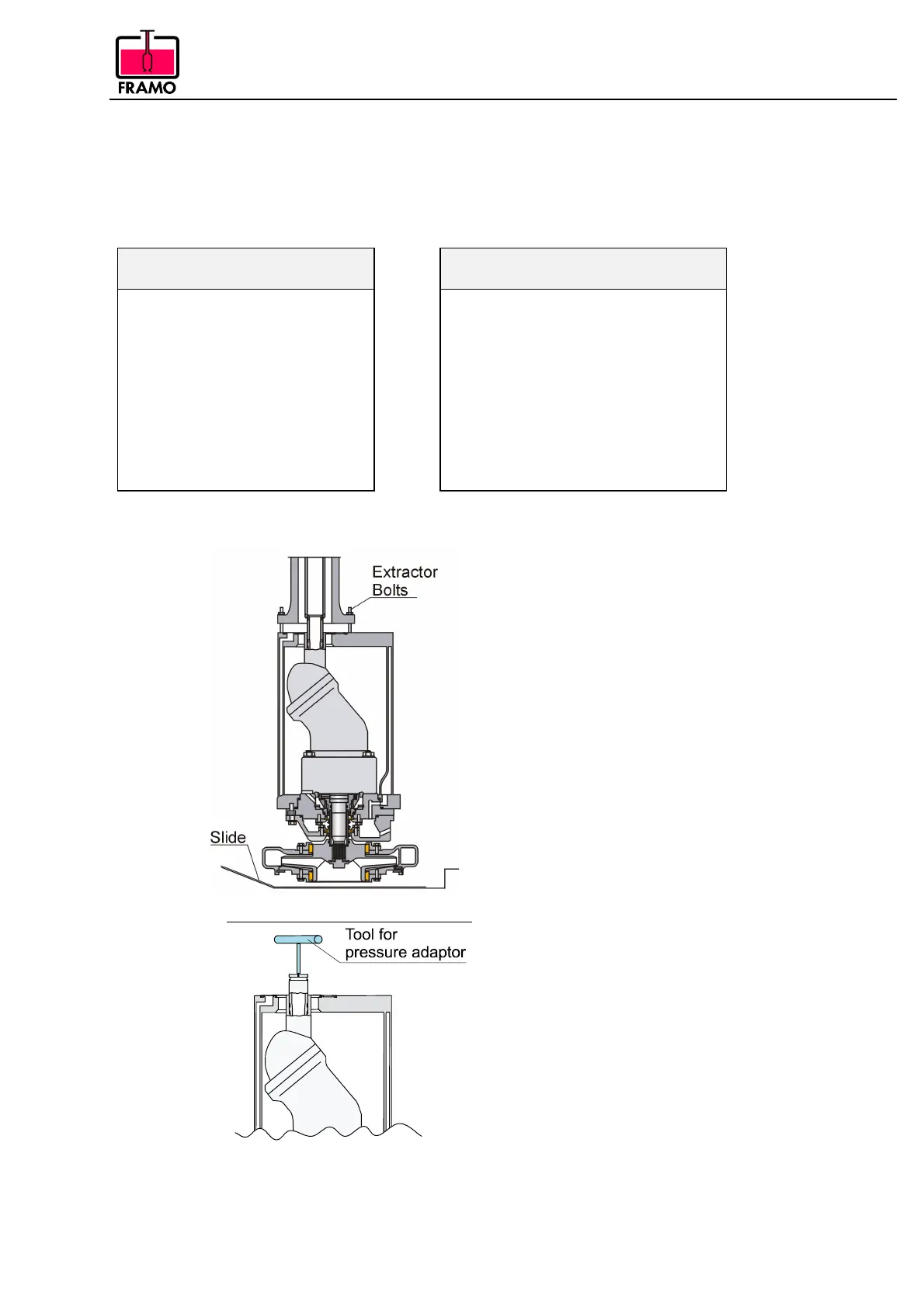

Dismantle the pump unit from
the pipe stack. Use extractor
bolts (100594,1198) when
lowering the pump unit.
NB!
WHEN REMOVING PUMP
UNIT FROM PIPESTACK BE
EXTRA CAREFUL NOT TO
DAMAGE SEAL SURFACES
ON PIPESTACK AND
POSSIBLY COATING IN TANK.
USE SLIDE IN SUCTION WELL.
Fig. 09
Dismantle the pressure adapter with
tool (A285).
Fig. 10
