INSTRUCTION FOR
MAINTENANCE AND REPAIR
FRAMO CARGO PUMP SD100-5
Rev.: A
2.0 MAINTENANCE INSTRUCTION
Before doing service on pump read the Service Manual for Cargo Pumps, Chapter 3,
Maintenance information.
2.1 Dismantling of impeller / wear rings
Standard tools Special tool
Name Name
Spanner 10 mm Snap Ring Plier
Spanner 16 mm
Wrench
Spanner 17 mm Tool for impeller
Spanner 24 mm
Socket 19 mm
Socket 24 mm
Ratchet ½’’
Plastic hammer
Slide
NB! Before doing service on pump,
always close the hydraulic
pressure inlet valve, and purge
cofferdam. (See Purging routine).
Loosen the bottom support.
Lift and secure the support to pipe stack.
Loosen and bend away check pipe.

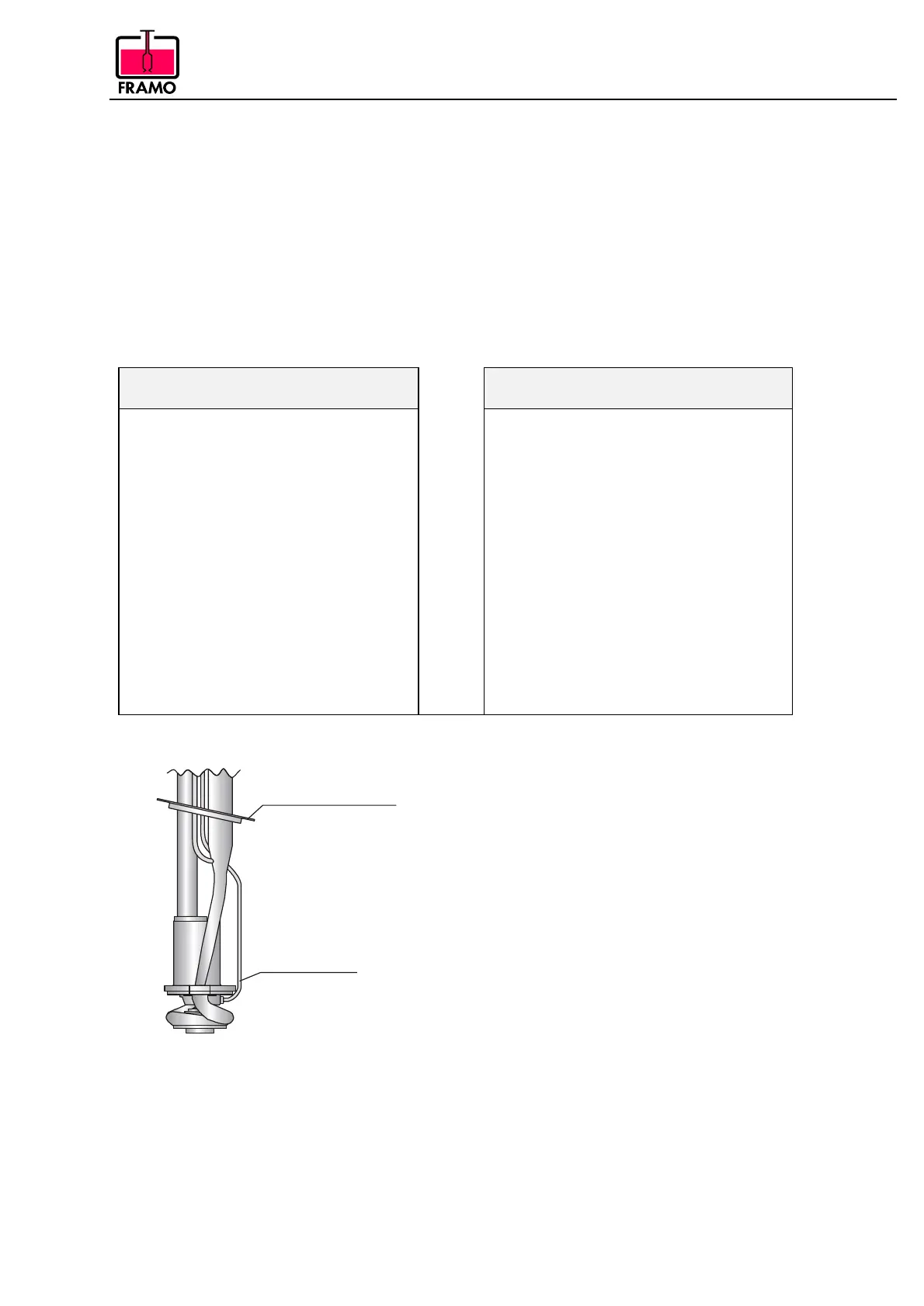

Fig. 02
Bottom support
Check pipe
