8
Operating instructions
Parquet floor sander COBRA C
with gentle lifting lever
3 Machine specifications COBRA C

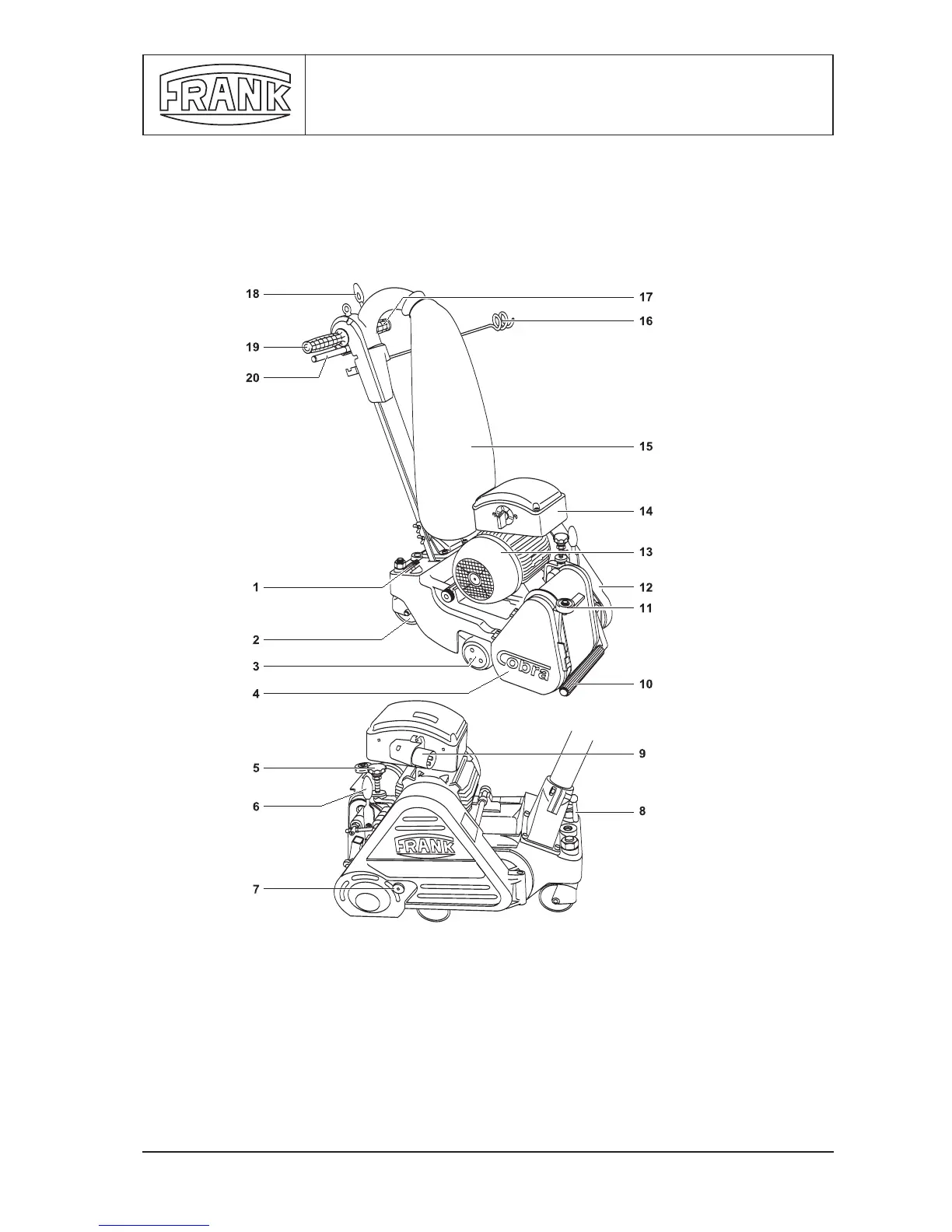

3.1 Important components
1 pressure regulating screw 11 bumper wheel
2 castor wheels 12 belt guard
3 running wheels 13 motor
4 drum cover 14 switch box
5 V-belt tension screw 15 dust bag
6 tension lever 16 cable arm
7 knurled nut 17 left hand grip
8 clamping lever 18 main lifting lever
9 motor plug 19 right hand grip
10 carrying handle 20 gentle lifting lever
