Franke CE-50 - Assembly Parts

– 5 –
CE-50 / CE-75 / TE-50 / TE-75 / TE-75S / TE-125 / TE-125BF
EN
DRAFT
ONLY

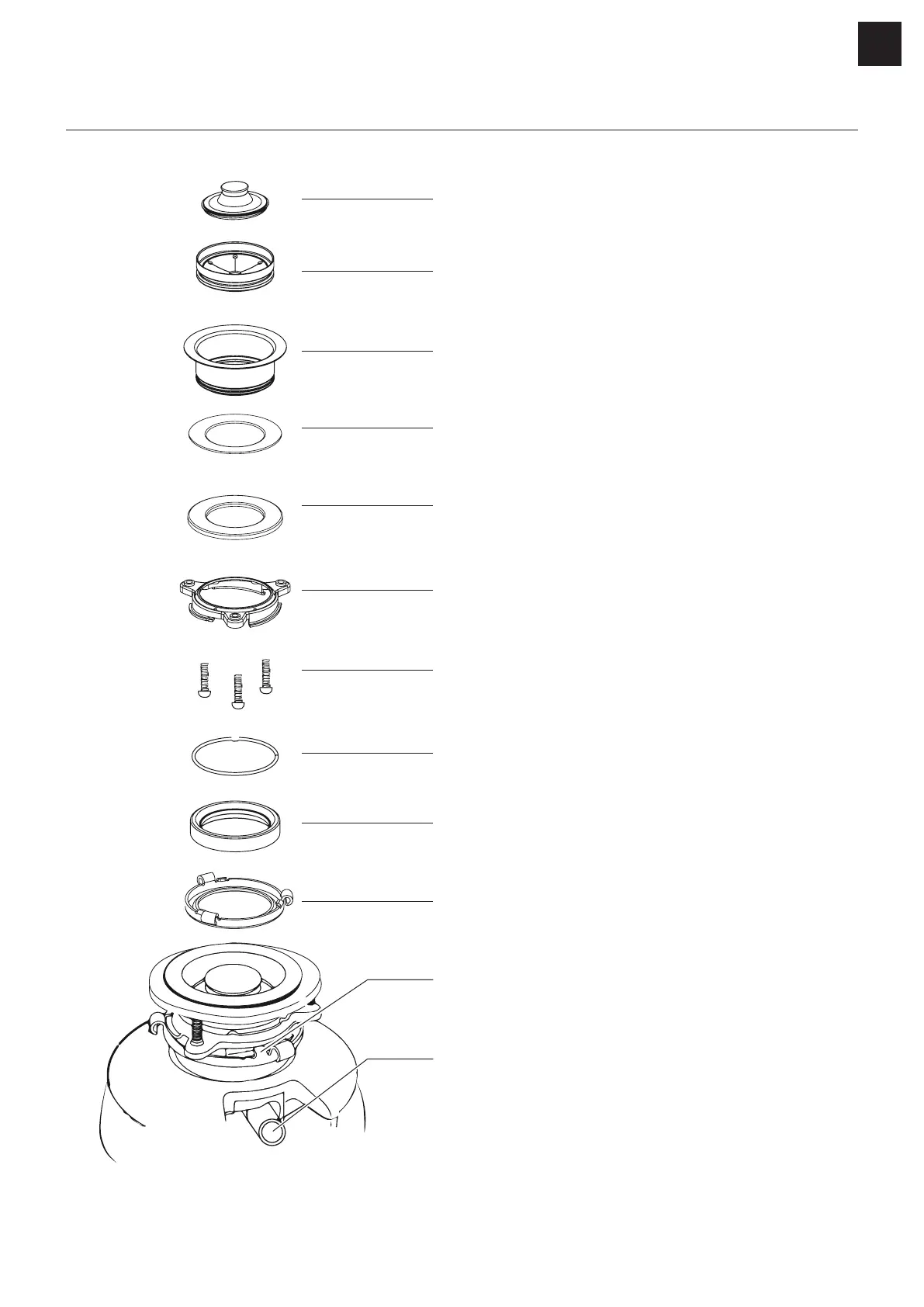

ASSEMBLY PARTS
* The cushion ring and the lower mounting ring
will remain attached to the disposer during
installation.
MOUNT TAB
DISHWASHER INLET
LOWER MOUNTING RING*
CUSHION RING*
RETAINER RING
MOUNTING SCREWS
UPPER MOUNTING RING
SUPPORT FLANGE
FIBRE GASKET
SINK FLANGE
REMOVABLE SPLASH GUARD
STOPPER
