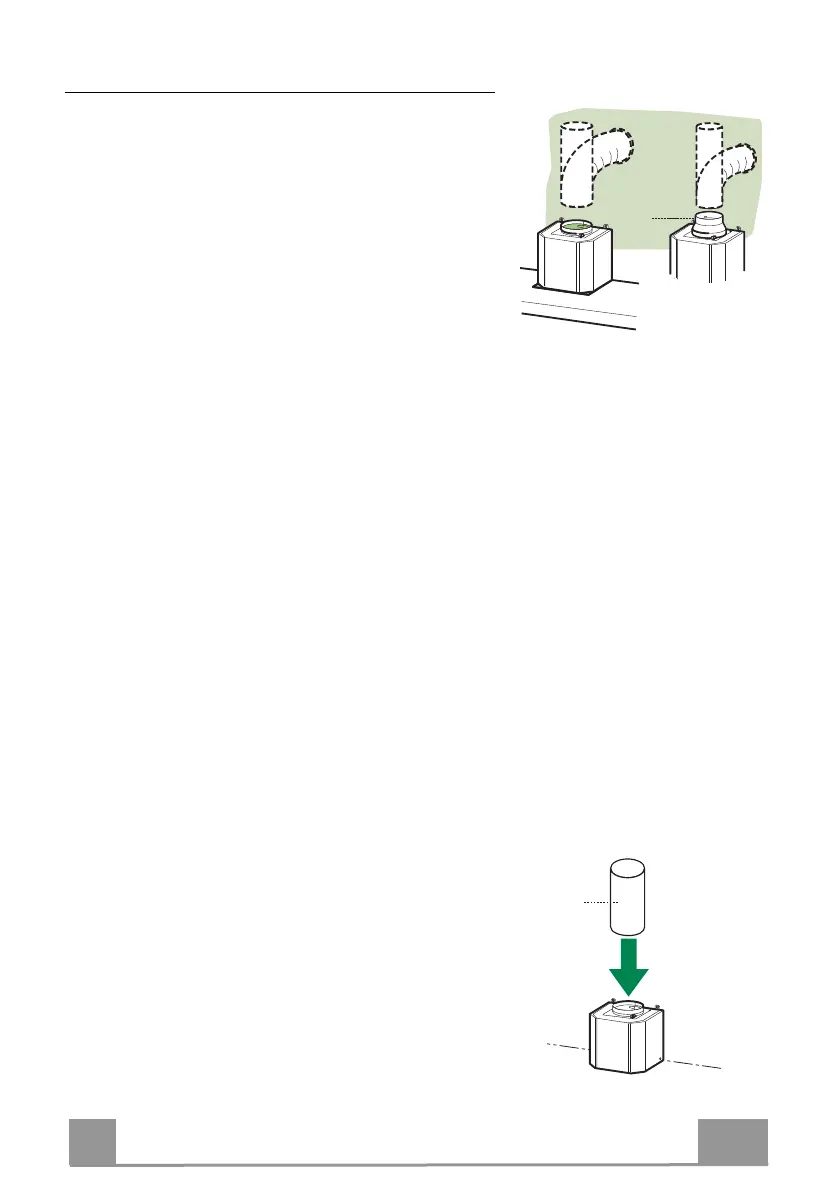

Air Outlet Connection - Ducting Version
When installing the Ducting version, join the Hood to the
outlet duct using a rigid or flexible pipe ø 150 or 120 mm,
selection of which is at the discretion of the installation
technician. The pipe may come out of the hood either at
the top or at the back.
REAR OUTLET
• Remember that when drilling the ducting opening you
must follow the diagram provided in the paragraph on
drilling the wall.
• To connect using a ø120 mm pipe, insert the reduction
Flange 9 onto the Hood canopy outlet.
• Fasten the pipe using suitable pipe clamps. The
materials required to do so are not provided.
• Remove any Activated charcoal filters.
TOP OUTLET
• To connect using a ø 150 mm pipe, connect the Hood to
the outlet duct using a rigid or flexible pipe.
• To connect using a ø120 mm pipe, insert the reduction
Flange 9 onto the Hood canopy outlet.
• Connect the Hood to the outlet duct using a rigid or
flexible pipe.
• Fasten the pipe using suitable pipe clamps. The
materials required to do so are not provided.
• Remove any Activated charcoal filters.
9
ø 120ø 150
AIR OUTLET – RECIRCULATION VERSION
• Insert the PVC pipe 7 provided onto the Hood canopy
outlet.
• Push the pipe all the way in.
7
ø 150
