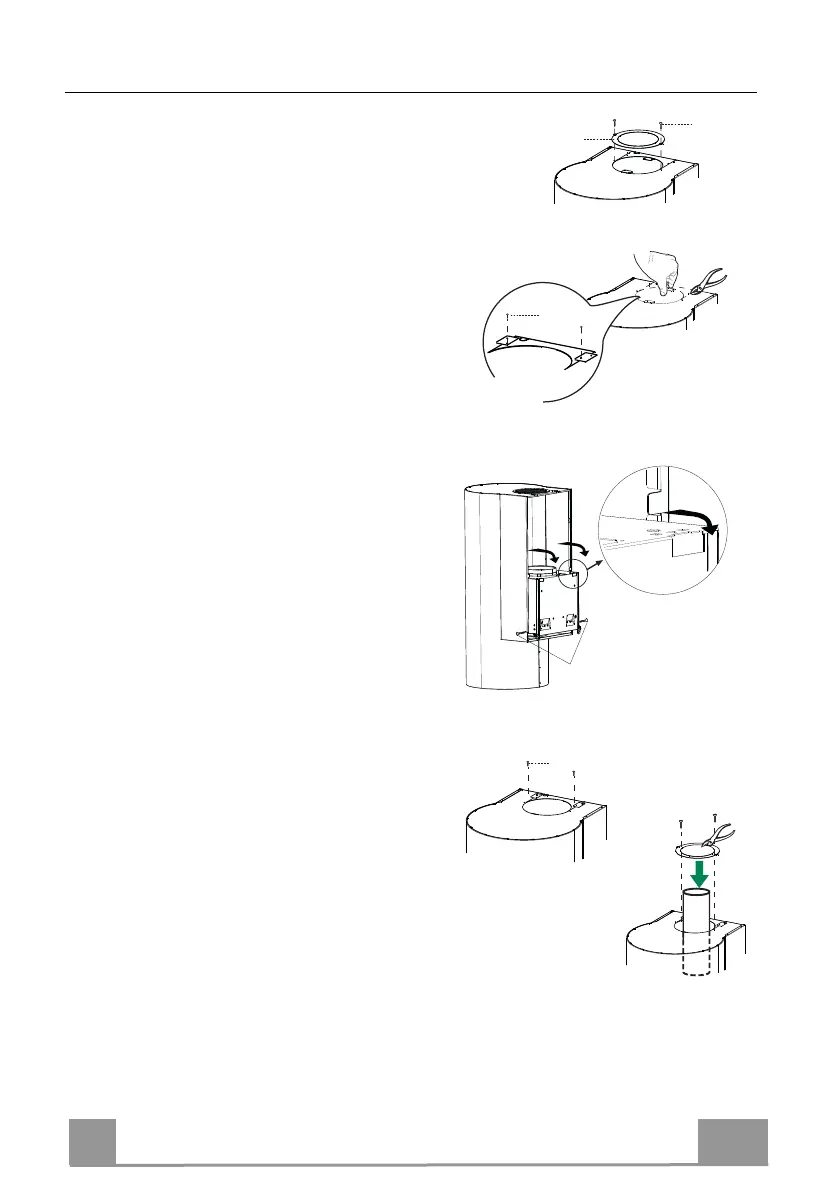

Fitting the hood body – Ducting Version
Ducting Version Rear outlet
• If the air outlet on the Rear of the hood has been selected, the
Air outlet Reduction-plug 8c must be screwed into the top
part of the Hood using 2 Screws 12e provided.
Ducting Version Top outlet
•
If the air outlet on the top of the hood has been
selected, the 2 brackets visible in the top part of
the hood canopy must be removed. Also remove
the pre-scored section shown in (Fig. 2) to allow
the pipe to pass through.
• Screw the brackets to the pre-scored piece, after
removing it as described above, using 2 screws
12e provided.
• Rest the Hood Canopy 1 on
the Suction Unit
3, inserting it, and fix it at the side using the
2 screws 12b. (Fig.1)
• Screw the pre-scored piece with the
bracke
ts (Fig.2) back onto the top part of
the hood canopy, using 2 screws 12e
provided, so as to block the air ducting
pipe.
• If a size 120 pipe is used, break the inn
er part of the air outlet
Reduction-plug 8c.
Insert the ring obtained in this way into the air ducting pipe and
screw it to the hood canopy using 2 screws 12e provided.
fig.2
12e
12e
8c
12e
ø 120
fig.1
12b
