Franke HCMF-18 Service Manual

HCMF Service Manual
For Technical Support, Call 800-537-2653. Page 14 Doc. No. 19005309 - Copyright  2012 Franke, Inc.
Section 8 – General Unit Service Instructions & Warnings:
1) Technicians should be authorized to work on Franke
Equipment and be EPA Certified and qualified to diagnose
and repair refrigeration equipment.
2) The Franke High Capacity Meat Freezer comes in two sizes,
the compact HCMF-18 model and larger HCMF-30 model.
3) Both models operate on 120-volt power and are provided with
a grounded (5-15P) plug and 8’ power cord.
4) The HCMF-30 refrigeration system is charged with 18 ounces
(539 g) of ozone-safe R404A refrigerant. The HCMF-18 is
charged with 16 ounces (311 g) See unit Data Plate and use
in-line site glass provided, when filling.
5) Only use R404A refrigerant when recharging this unit.
6) Always verify proper unit cleaning before replacing or
repairing components. [See Section 6]
Suggested [On-Truck] Repair Parts:
We suggest the following to ensure a first-trip fix of a HCMF:
HCMF-18 HCMF-30 Description Qty.
19004385 19004309 Front Door Gasket 1 ea.
19004631 19004449 Top Rolling Door Gasket 1 ea.
19001991 19001991 Top Rolling Door Rollers 4 ea.
18005958 18005958 Display/Controller- Eliwell 1 ea.
19004386 19004308 Defrost Heater (Evaporator) 1 ea.
19004769 19004769 Sensor, Air Temp. (Gray) 1 ea.
19004832 19004832 Sensor, Coil Temp (Yellow) 1 ea.
19000817 19000817 Swivel Caster w/Brake 4 ea.
19005293 19005293 Condenser Fan Motor 1 ea.
19000454 19000454 Evaporator Fan Motor 2 ea.
19005292 19005292 Start Capacitor 1 ea.
19005290 19005291 Start Relay 1 ea.
19001190 19001190 Thermostatic Expansion Valve 1 ea.
19004507 19004310 Condensing Unit 1 ea.
19005288 19005289 Compressor ONLY 1 ea.
3126151 3126151 Power ON/OFF Switch 1 ea.
19000282 19000282 Power Cord (8’) & Plug 1 ea.
19004832 19004832 High Limit Switch 1 ea.

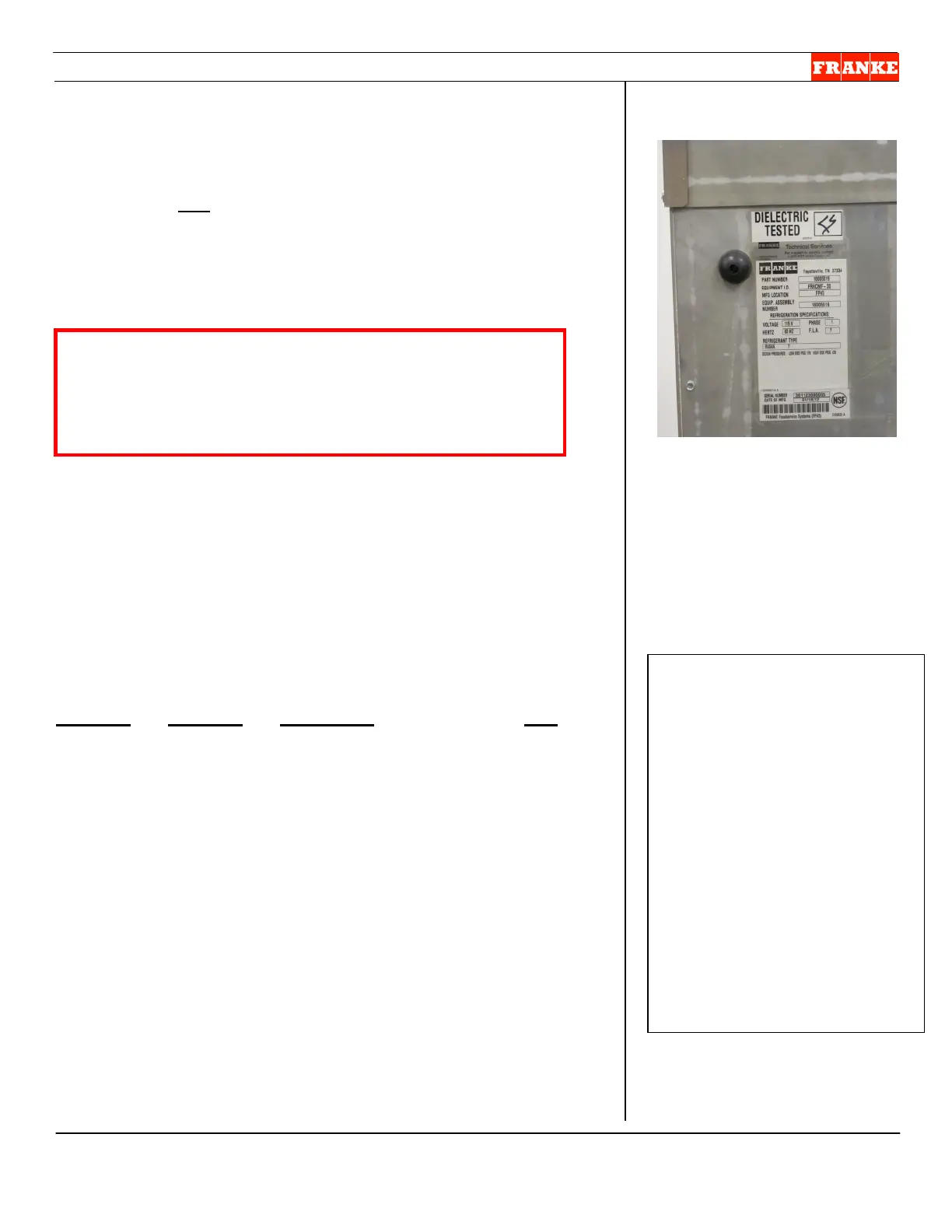

[Model & Serial Number]
The HCFM Unit Serial Number is
located below the Model Number &
Data sticker, which is on the back
of unit.
Tools Required:
[For Mechanical Systems Repair]
 3/8” screwdriver
 ¼” screwdriver
 1/16” “mini” screwdriver
 1/8” Allen/hex wrench
 3/16” Allen/hex wrench
 5/32” Allen/hex wrench
 5 mm Allen/hex wrench
 13 mm Allen/hex wrench
 7/16” box/socket wrench
 Razor knife
 Needle nose pliers
 Small wire cutters
 Rubber mallet
 Plastic Wire Ties
WARNING:
Unplug unit from its120-volt power source whenever
servicing electrical components or removing the rear or
side service access panels. Failure to unplug unit may
result in electric shock, burns or death.
