1419011713 - Rev. A - November 29, 2018
OPERATION

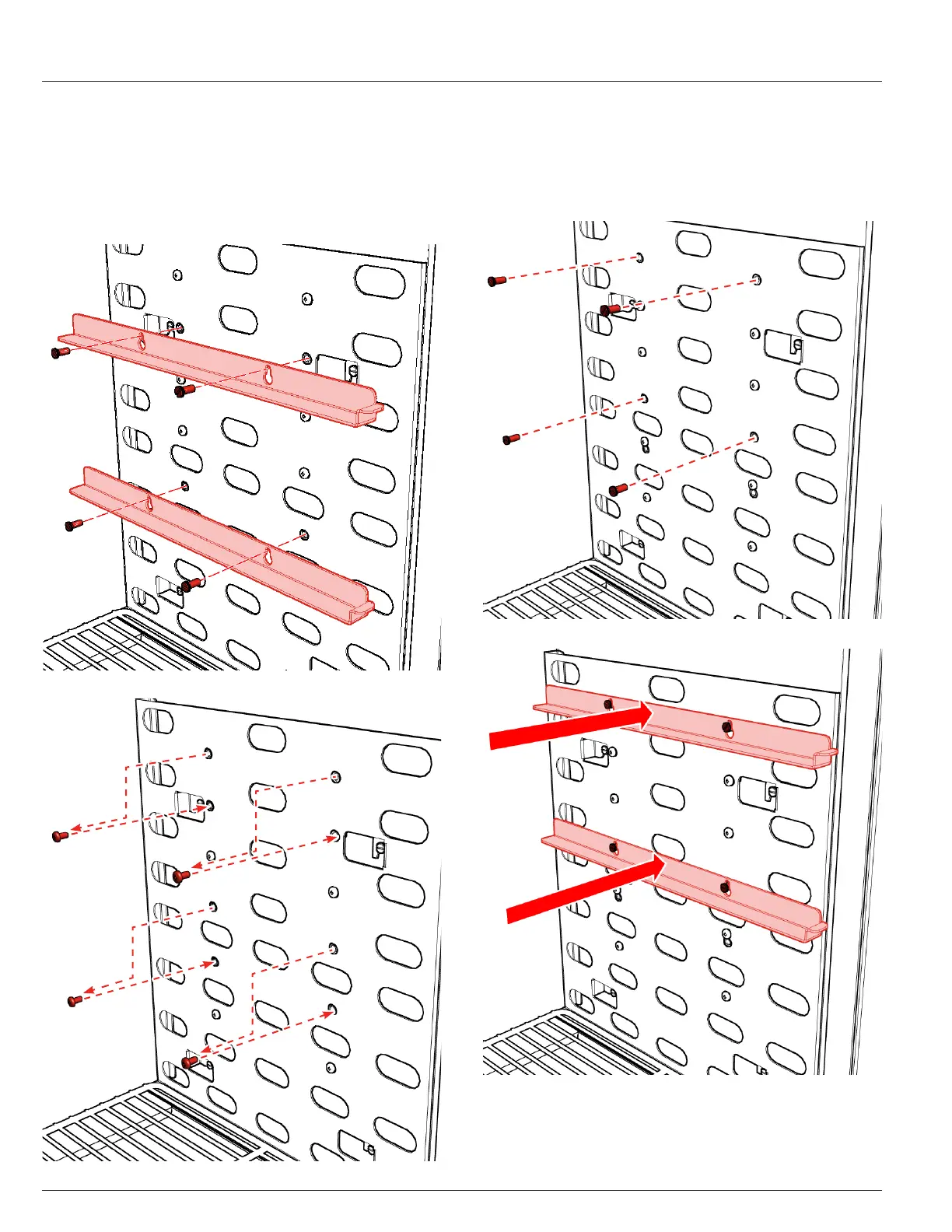

2. Remove shoulder bolts securing shelf rails to
interior walls of freezer (Fig. 29). Set rails aside.
Remove pre-installed screws at desired shelf
height and replace with shoulder bolts (Fig. 30).
Install screws into holes at previous shelf location.
Fig. 29
Fig. 30
3. Loosely install shoulder bolts at desired shelf
height (Fig. 31). Rest shelf rail keyholes onto
shoulder bolts, and tighten bolts until fully secure
into freezer walls (Fig. 32).
Fig. 31
Fig. 32
4. Place wire shelves back onto shelf rails. Ensure
shelves are level and that rails are firmly secured
against freezer compartment walls.
