619011713 - Rev. A - November 29, 2018
INSTALLATION
Installing the HCWF-P
NOTICE
IMPORTANT INSTALLATION INFORMATION
Remove all tape, protective film, and foam blocking from the unit before installation. Wash, rinse, and sanitize
wire shelves before use.
High Capacity Wall Freezers (HCWF-P) are designed for wall installation to either left or right side of fry station.
Unit must be installed within 10' of an appropriately rated electrical receptacle, per the specifications listed on
the unit’s data label.
Mounting wall MUST be capable of supporting at least 100 lbs (45 kg) of weight per linear foot. If drywall
construction is evident at installation location, wall MUST be reinforced with minimum ½" thick plywood. Securely
anchor plywood to a minimum of two (2) wall studs.

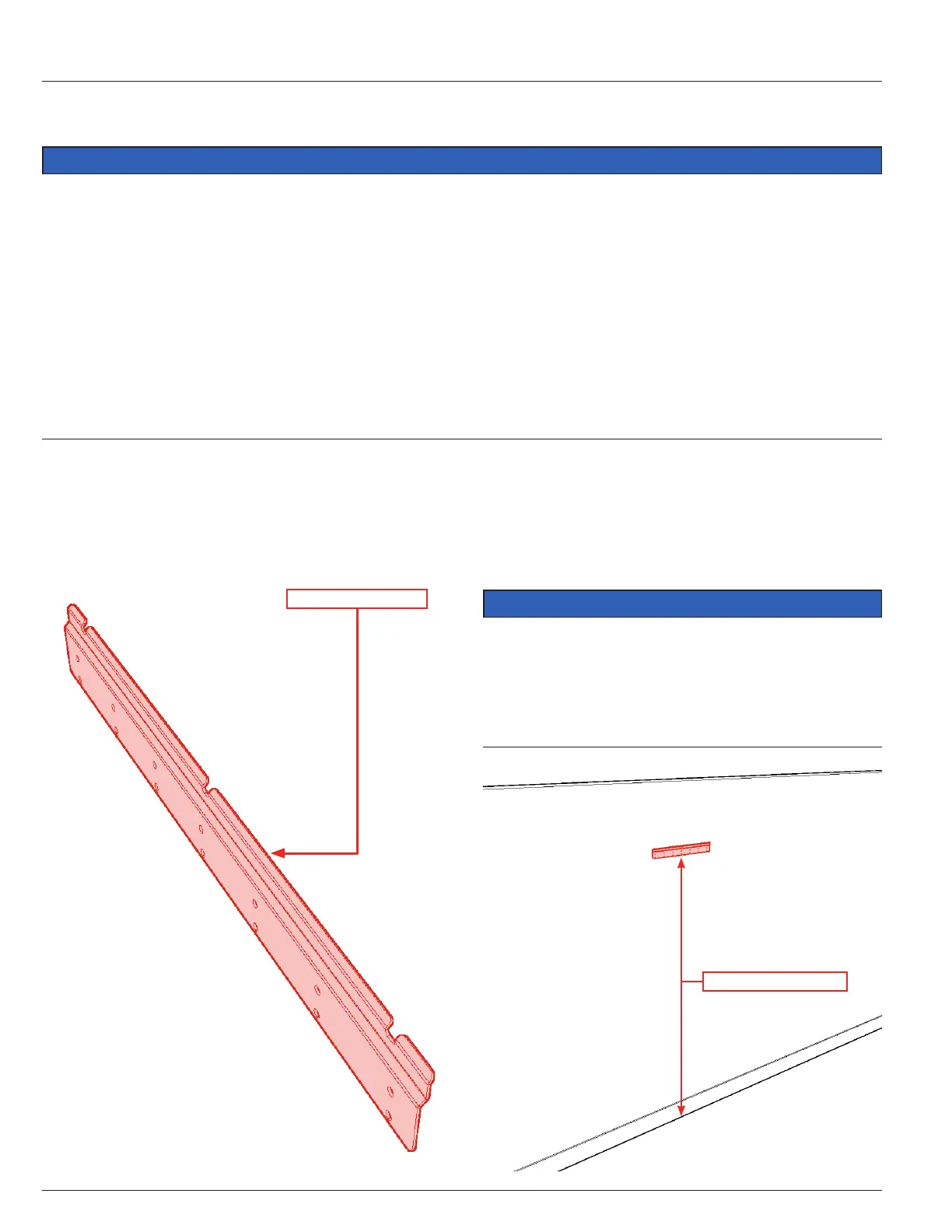

STEP 1
Locate steel offset mounting strip supplied with unit.
Mounting strip is designed for engage full width of
HCWF-P top-rear flange (Fig. 2).
Fig. 2
OFFSET MOUNTING STRIP
STEP 2
Measuring up 80" from the finished kitchen floor,
locate center point of intended freezer mounting
position on the wall (Fig. 3).
NOTICE
IMPORTANT INSTALLATION INFORMATION
If installing the HCWF-P above a 2-Drawer Refrigerator,
Combo Cooler/Freezer, or Convertible Cooler/
Freezer, measure 77" above finished kitchen floor.
80" HEIGHT ABOVE FLOOR
Fig. 3
