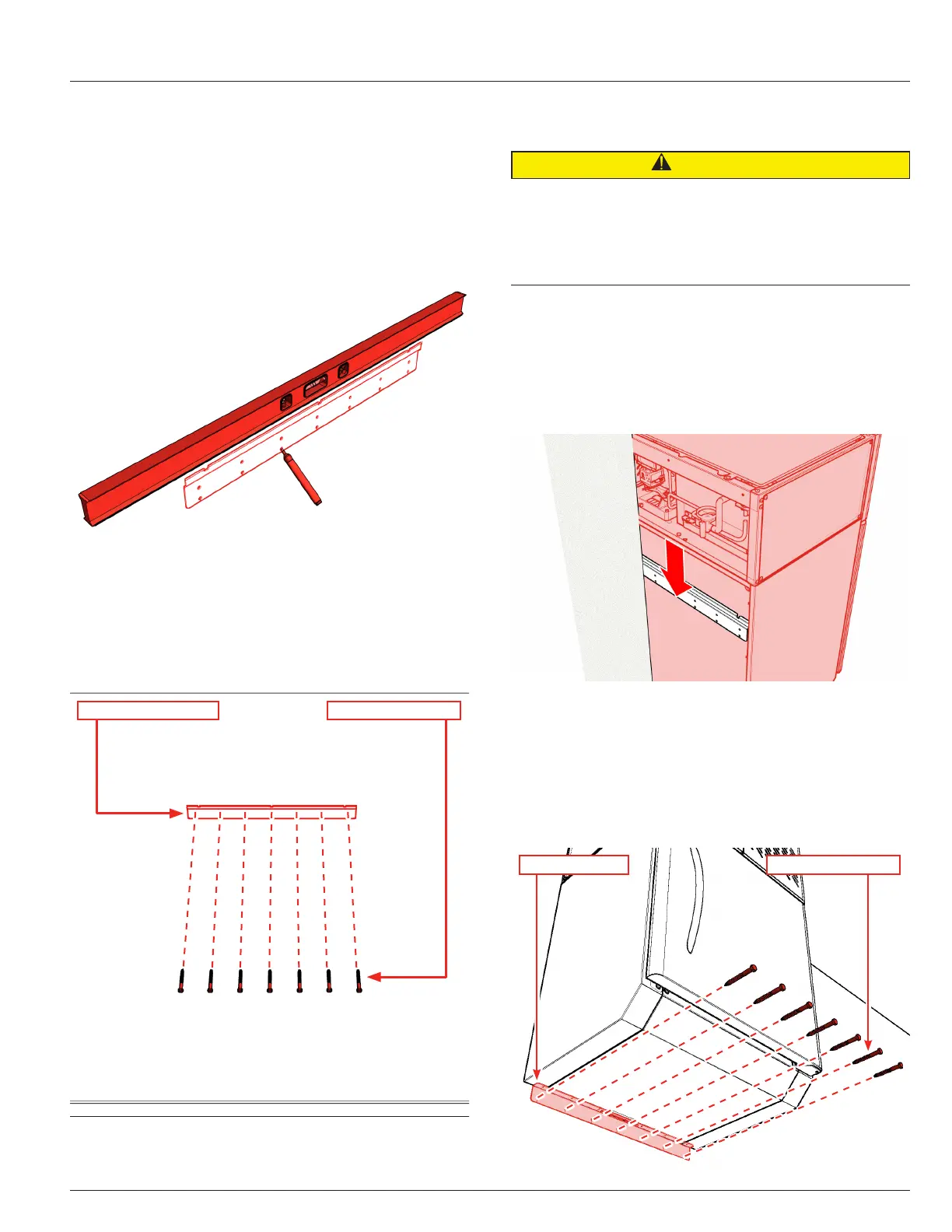

INSTALLATION
STEP 3
Place bottom of mounting strip against kitchen wall at
measured height and offset from center mark. Level
mounting strip and mark location of screw holes pre-
drilled into strip (Fig. 4). Remove strip and drill pilot
holes into marked locations.
Fig. 4
STEP 4
Secure mounting strip to wall using hardware
appropriately rated to wall materials and weight-
bearing requirements noted on page 4 (Fig. 5).
Fig. 5
OFFSET MOUNTING STRIP WALL MOUNTING BOLTS
STEP 5
CAUTION
LIFTING HAZARD
Use appropriate help, tools, and techniques when
lifting or moving heavy objects.
With appropriate assistance, lift HCWF-P to a height
that clears previously installed mounting strip. Lower
freezer until top-rear flange of freezer rests completely
on mounting strip. Continue to support weight of
freezer (Fig. 6).
Fig. 6
STEP 6
While continuing to support freezer, install supplied
L-shaped bracket against wall and flush to freezer
bottom. Fasten bracket with provided mounting
screws (Fig. 7).
Fig. 7
L-SHAPED BRACKET WALL MOUNTING BOLTS
