Franke MARIS Series User Manual

– 7 –
FHMA 604 3G DC / FHMA 755 4G DC/DCL / FHMA 905 4G DCL / FHSM 604 3G DC
FHSM 604 4G / FHSM 755 4G DC / FHSM 905 4G DCL
EN
BB
D
C
A
C

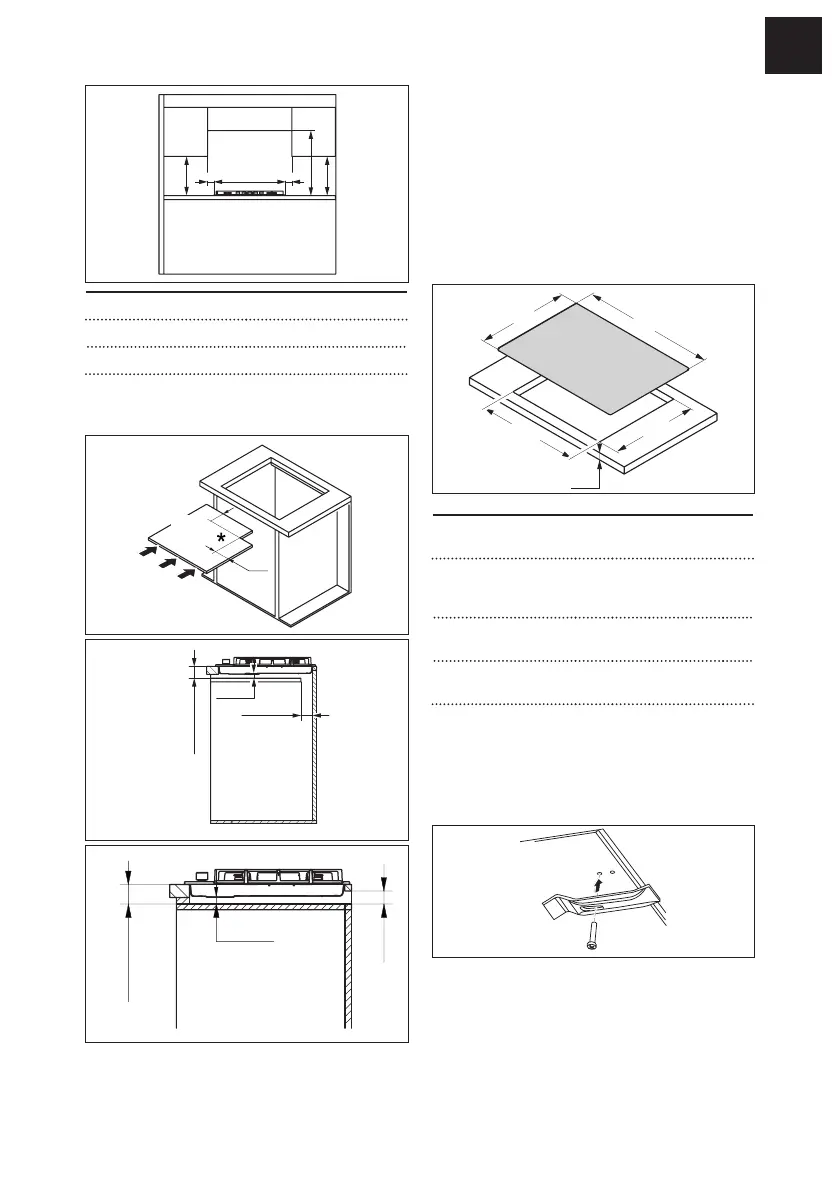

MINIMUM DIMENSIONS (MM)
A = 590/730/880 B = 50
C = 400 D = 700
Z
If the appliance is not installed above an
oven: arrange a separator baffle.
* 120x120 mm
120
120
Max 150 mm
20 mm
Max 50 mm
Max 150 mm
50 mm
20 mm
Installation procedure
The appliance is fixed to the unit by means of
the brackets and accessories provided.
Z
Make sure that there is free access to the
fixing elements in front and in the rear
after the installation of the appliance.
Z
Prepare the hole in the worktop according
to the dimensions indicated. Be sure to
comply with the dimensions indicated.
Yp
Xp
Ytop
Htop
Xtop
Model Xp Yp X
top
Y
top
H
top
FHSM 604 3G DC
FHSM 604 4G
FHMA 604 3G DC
590
mm
510
mm
560
mm
480
mm
40
mm
FHSM 755 4G DC
FHMA 755 4G DC/DCL
730
mm
510
mm
560
mm
480
mm
40
mm
FHSM 905 4G DCL
FHMA 905 4G DCL
880
mm
510
mm
840
mm
480
mm
40
mm
X
Apply the sealing strip around he hole and
position the hob.
X
Fix the appliance with the screws and
brackets.
X
Remove any excess sealing strip.

Franke MARIS Series Specifications

General

Type	Induction Hob
Number of Cooking Zones	4
Control Type	Touch Control
Power Levels	9
Dimensions	590 x 520 mm
Total Power	7400 W
Voltage	220-240 V
Frequency	50/60 Hz
Installation	Built-in
Color	Black
Brand	Franke
Series	MARIS
Safety Features	Child Lock
