Franklin PUMPTEC-PLUS - Mounting and Wiring Connections; Unit Mounting; 2-Wire Installation Wiring

6
PUMPTEC-PLUS Pump Protection System
3. Mount the Unit
Mount the Pumptec-Plus unit in a location convenient for wiring. Avoid direct sunlight, rain or snow.
4. Connect Power and Motor
Check to make sure the 230 Volt power has been disconnected. Connect Pumptec-Plus unit to the pump
motor and the 230 Volt AC line according to one of the two- or three-wire installation drawings below.
Pumptec-Plus may be wired into the circuit before or after the pressure switch, oat switch or other
system control switch.

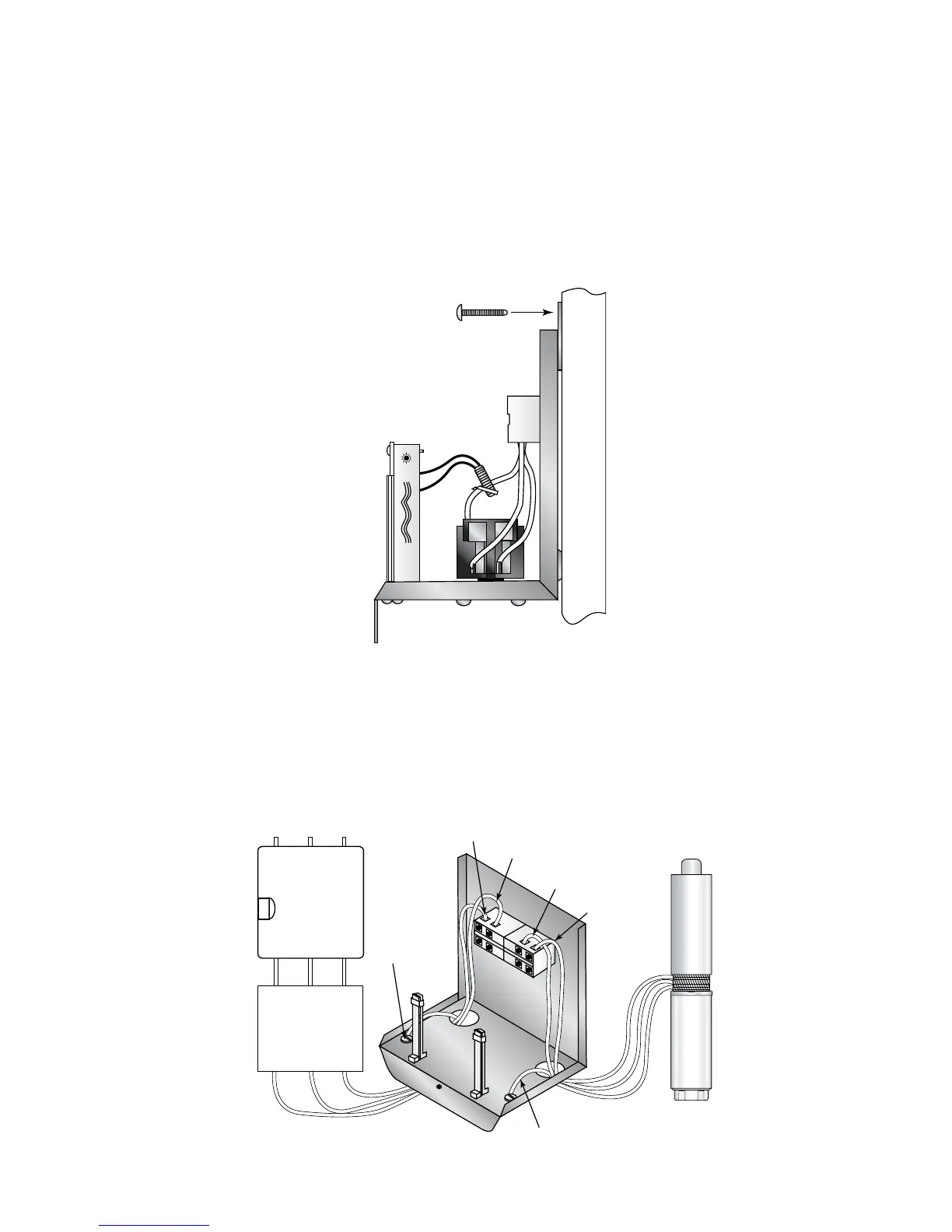

MOUNTING SURFACE
SCREW
s WARNING
!
WARNING
DISCONNECT POWER AT THE MAIN PANEL before installing, wiring
or servicing the Pumptec-Plus unit. Serious or fatal shock may occur if
power is not disconnected.
PRESSURE
SWITCH
OR OTHER
CONTROL
FUSED
DISCONNECT
OR
CIRCUIT
BREAKER
GND
GND
GND
L2
L2
M1
M2
L1
L1
GND
GND L2 L1
L2 L1
PUMP &
MOTOR
2-WIRE INSTALLATION
