PUMPTEC-PLUS Pump Protection System
7
5. Replace Cover
Replace cover and secure with screw provided.
6. Apply Power
Once power is applied the Pumptec-Plus unit should trip, indicating an overload condition
(blinking yellow light) when the pump tries to run. This is normal and is a reminder that Pumptec-
Plus requires calibration.
NOTE: Some 1/2 hp motors will not trip in an overload condition upon the initial application of
power. The green light will blink instead. This is also a normal condition. Proceed to step 7.
FUSED
DISCONNECT
OR
CIRCUIT
BREAKER
GND
GND
GND
GND
L2
L2
L2
M1
M2
L1
L1
L1
GND
L2 L1
RED
PUMP &
MOTOR
BLK
DELUXE
CONTROL
BOX
PRESSURE
SWITCH
OR OTHER
CONTROL
SW2
L2
L2
YEL
M2
PRESSURE
SWITCH
OR OTHER
CONTROL
FUSED
DISCONNECT
OR
CIRCUIT
BREAKER
GND
GND
GND
GND
L2
L2
M1
M2
M2
L1
L1
GND
GND M2 M1
M1
L2 L1
RED
PUMP &
MOTOR
BLK
YEL
CONTROL
BOX
L1
L2

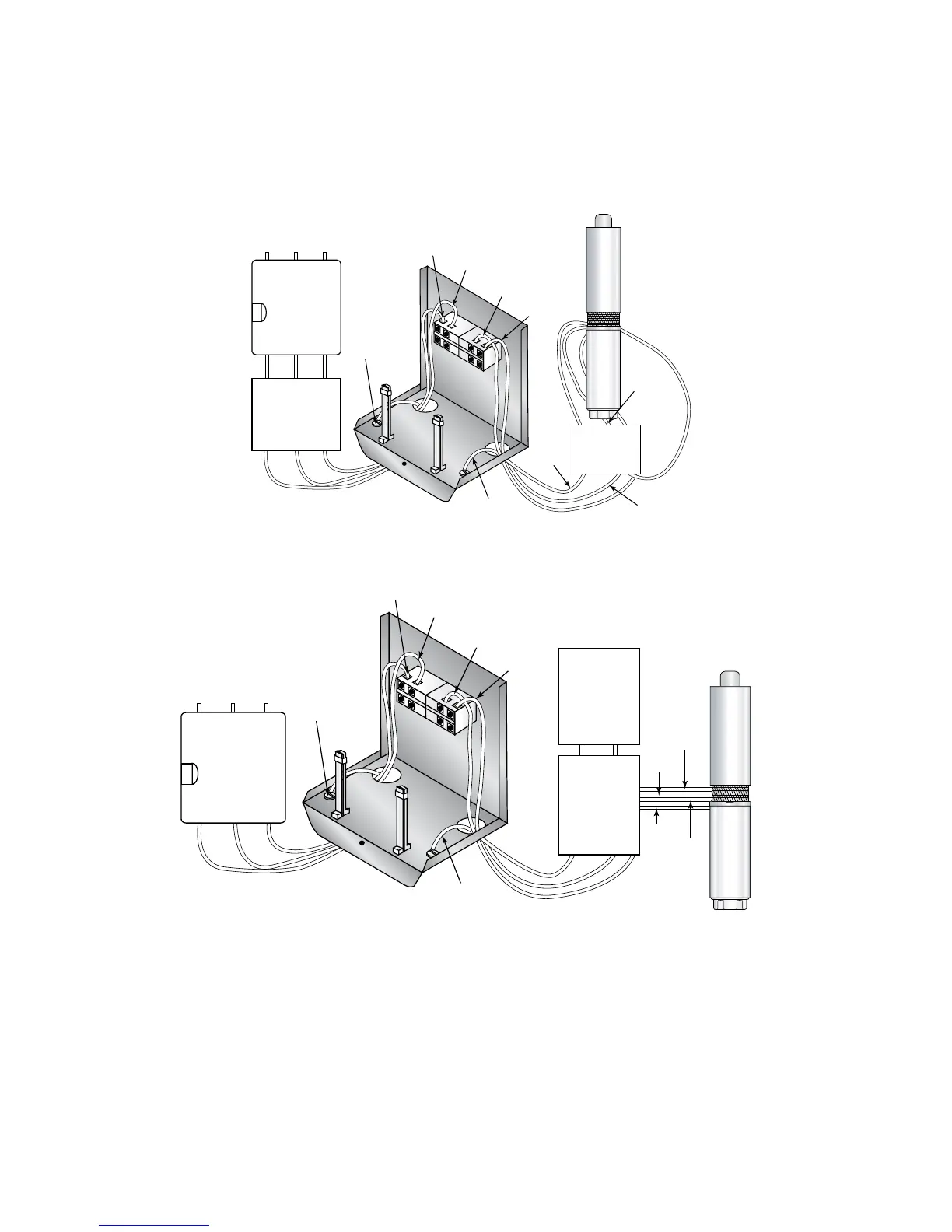

3-WIRE INSTALLATION
3-WIRE INSTALLATION WITH DELUXE CONTROL BOX
