FRC ICA100 Series - Figure 8. ICA400 Wiring

ICA100 Rev171109
14

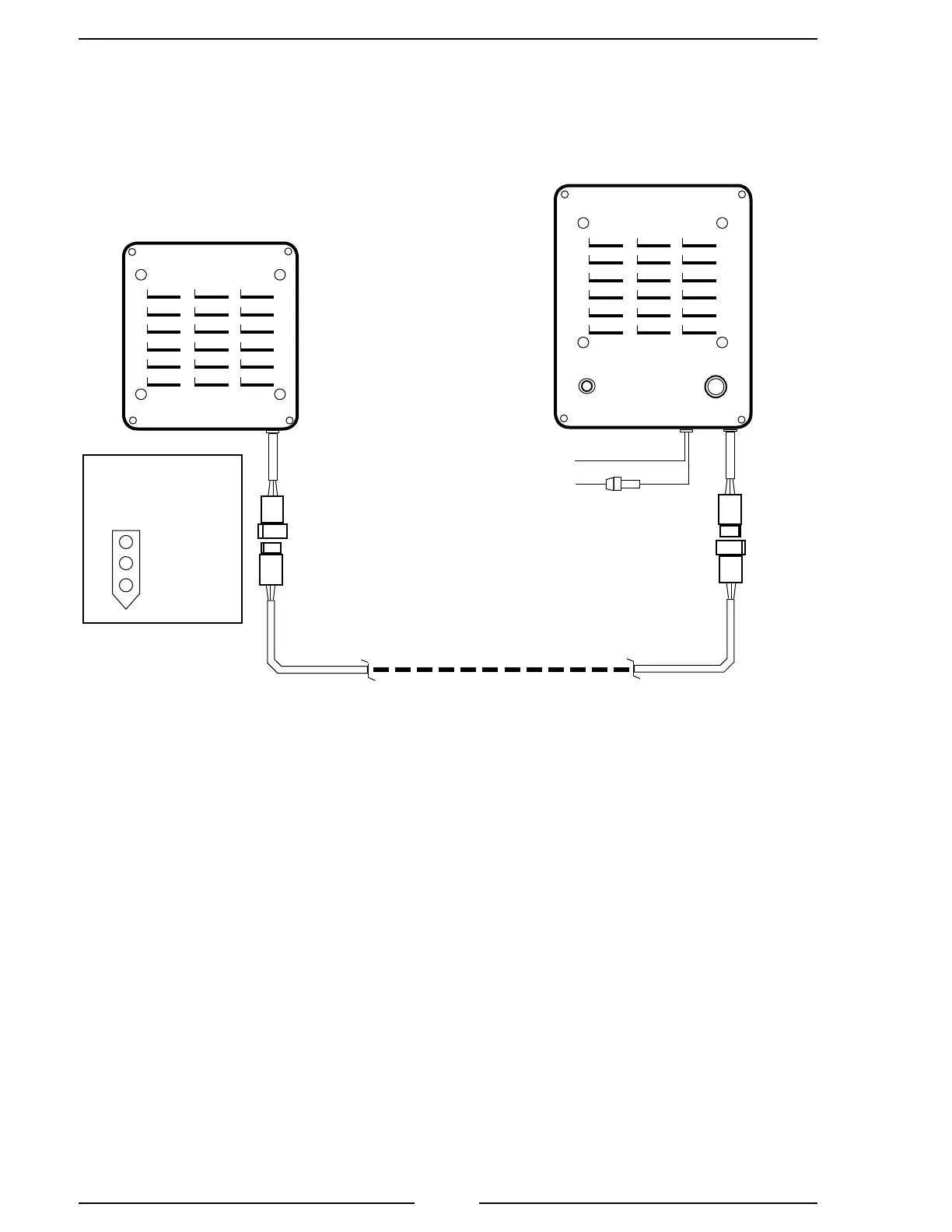

Figure 8. ICA400 Wiring
To Remote
Station
Master Station
GND
+12 VDC
Fuse
3 AMP
Remote Station
3 Pin
Molex Connector
Wiring
White
Yellow
Black
If the PTT option is installed
on the remote station a 5-pin
Molex will be used.
