ICA100 Rev171
109
7

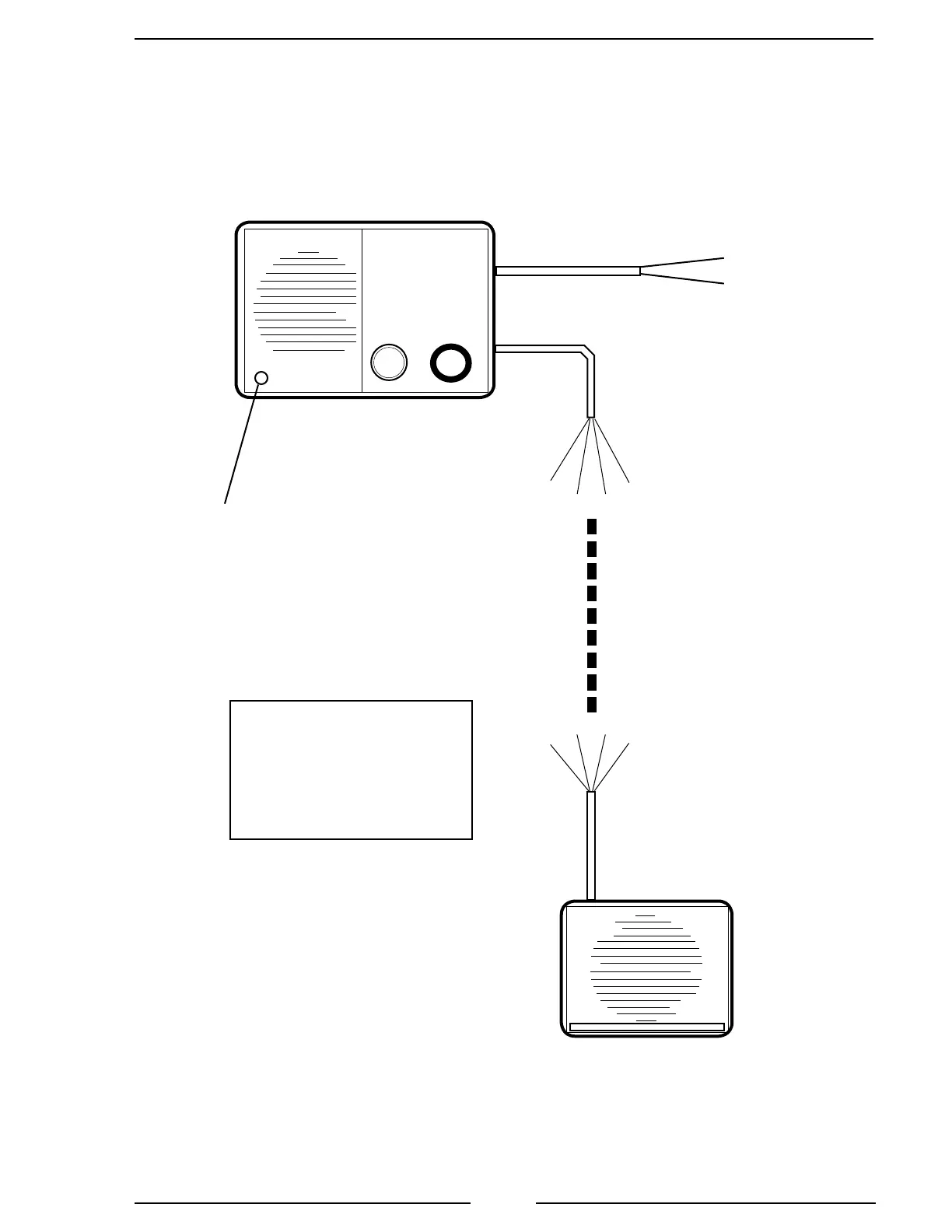

Figure 2. ICA100 Wiring
Note:
It is recommended that a 3
AMP
fuse
be installed between the master station box
and the 12
VDC power source.
Master Station
+12 VDC
GND
Red
Black
Y
ellow
White
Red
Black
Remote Station
Black
White
Y
ellow
Red
A
one-to-one cable
connects the two stations.
Black-to-Black
White-to-White
Red-to-Red
Y
ellow-to-Y
ellow
Master station
may have
a power on
LED.
6
8
Table of Contents
Table of Contents
2
Contents
2
Introduction
3
Overview
3
Features
3
Specifications
3
Table 1. Intercom Specifications
3
General Installation Notes
4
Ica100 Series Installation
5
Pre-Installation
5
Install Remote Station
5
Install Master Station
5
Figure 1. ICA100 Mounting Dimensions
6
Figure 2. ICA100 Wiring
7
Ica200/300 Series Installation
8
Pre-Installation
8
Install Remote Station
8
Install Master Station(S)
8
Figure 3. ICA200/300 Adjustable Mount
9
Figure 4. ICA200/300 Mounting Dimensions
9
Figure 5. ICA200 Wiring
10
Figure 6. ICA300 Wiring
11
Ica400/500 Series Installation
12
Pre-Installation
12
Install Remote Station
12
Install Master Station(S)
12
Figure 7. ICA400/500 Mounting Dimensions
13
Figure 8. ICA400 Wiring
14
Figure 9. ICA500 Wiring
15
Operation
16
Basic Two-Way System
16
Basic Three-Way System
16
System Options
16
Operational Check
17
