FRC OPTIMUM User Manual

LGT100 Rev0309
11

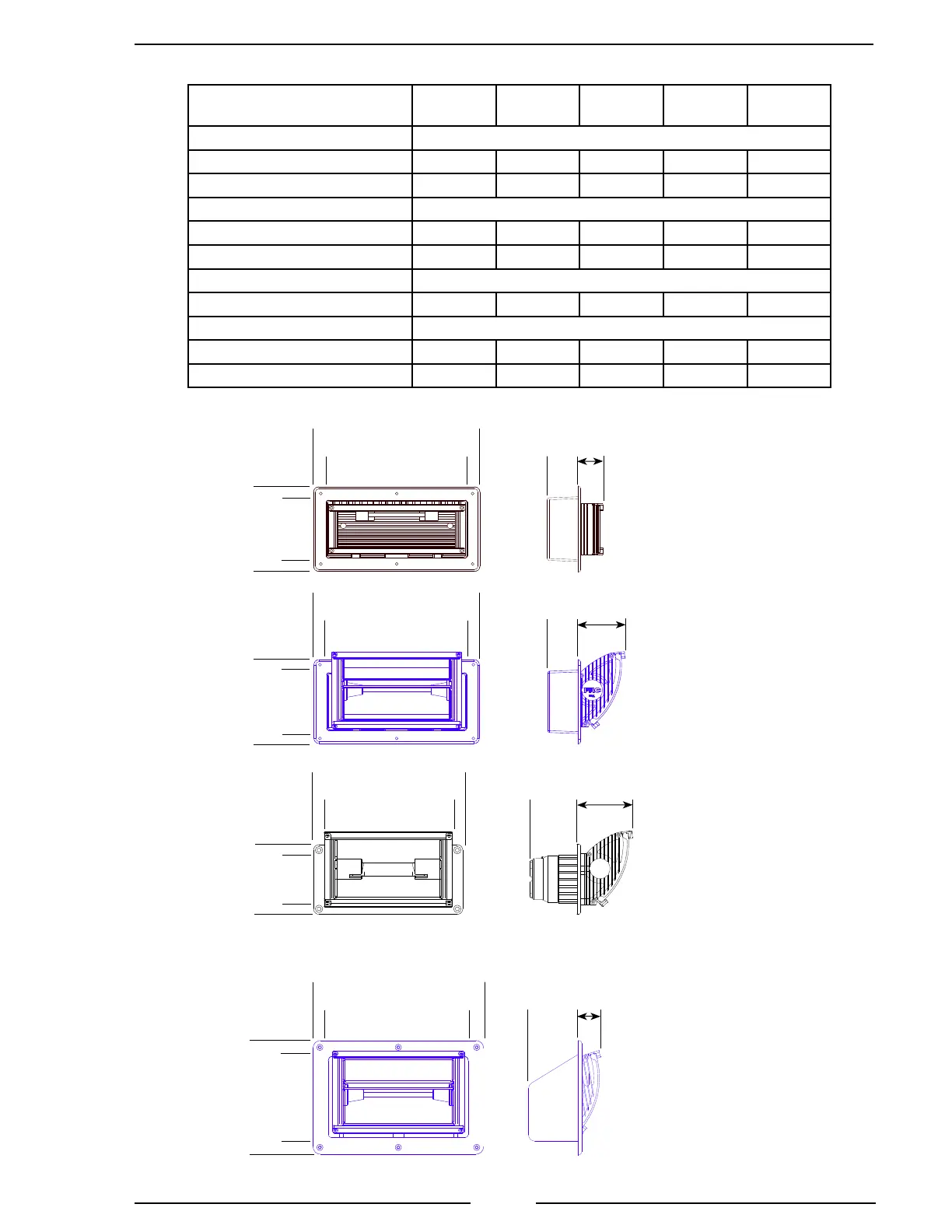

Figure 2. Install Recessed Mount
Model W D H W
2
H
2
FCA200-
D15, H30, S30, S50, S72, S75 11 2 5 5/8 9 3/4 4 1/4
D30, M10, M12, M15 17 1/2 2 5 5/8 16 1/8 4 1/4
OPA200-
S30, S50, S72, S75 11 2 5 5/8 9 3/4 4 1/4
M10, M12, M15, R90 17 1/2 2 5 5/8 16 1/8 4 1/4
OPA230-
E15, E70, H15, H70 10 3/16 3 1/4 4 3/4 8 3/4 3 7/8
OPA250-
S30, S50, S72, S75 11 3/16 4 1/8 7 1/2 9 9/16 5 3/4
M10, M12, M15, R90 16 9/16 3 1/4 7 1/2 15 5 3/4
Note: W
2
and H
2
will be
the cutout dimensions.
OPA250
FCA200
OPA200
OPA230
OPA230 is the only recessed
light available with HID bulb.
Table 2. Recessed Mount Dimensions
Hardware Recommendations
For 200 mounts:
10-32 SS
Hardware Recommendations
For 230 mounts:
1/4-20 SS
Hardware Recommendations
For 250 mounts:
10-32 SS
H
W
W
2
H
2
D
1 1/4"
W
W
2
H
H
2
D
3 3/4"
W
H
2
W
2
H
D
3 1/8"
W
W
2
H
D
H
2
1 3/4"
