LGT100 Rev0309
16
Install Side Mount Telescopic Pole Models 530, 540,
542
When positioning a telescopic pole ensure that the lamphead will clear all
obstructions and the twist lock will be accessible.
1. Place the light in position to check for t and freedom of operation.
2. Slide the brackets up or down into required position. The set screws may need
to be loosened.
3. Tighten set screws.
4. Mark the footprint of the mounting bracket(s).
5. Drill mounting holes.
6. Secure the mounting bracket(s). Use 5/16-18 SS hardware. Install a backing
plate if necessary for a sturdy mounting.
7. Ensure that approved strain relief for the wiring is installed.
Wiring
12/24 VDC
Connect the BLACK wire to GROUND.
Connect the RED wire to POWER.
120/240 VAC
Connect the GREEN wire to chassis GROUND.
Connect the WHITE wire to RETURN.
Connect the BLACK wire to POWER

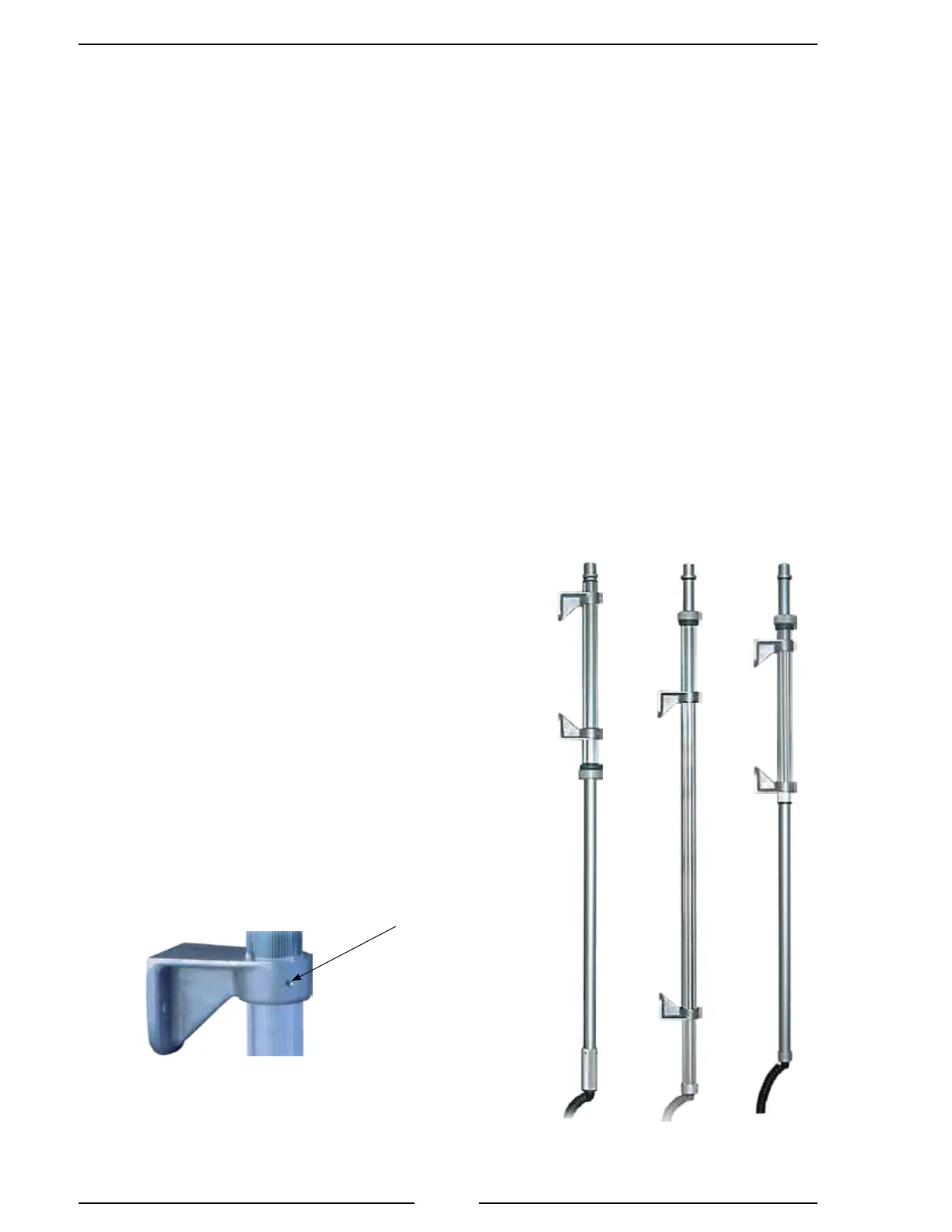

530
Side Mount
Push Up
540
Side Mount
Pull Up
542
Side Mount
Pull Up
Typical Bracket
Slide bracket up or
down into required
position and tighten
set screws.
