FRC OPTIMUM User Manual

LGT100 Rev0309
15

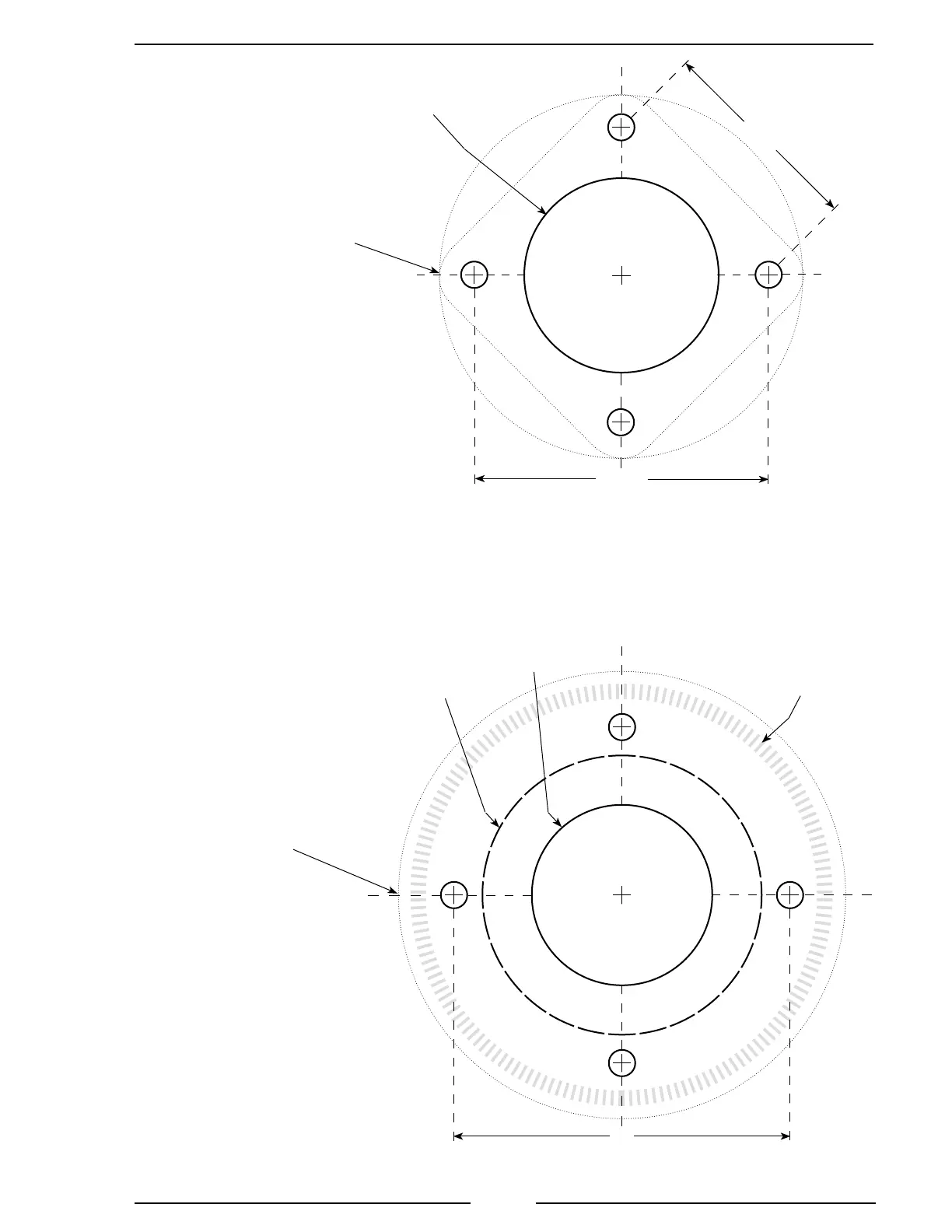

Figure 4. Install Top Mount Telescopic Pole
Drawings may not be to scale.
DO NOT USE AS A TEMPLATE
Round or Square
Flange
1 3/4"
Diameter
Cutout
2 5/8"
1 7/8"
Flange
Diameter
3 1/4"
510
Top Mount
Note: The 512 telescopic pole
should be installed before the
lamphead is attached. Two set
screws allow the ange to be
removed and the pole will t
up through a 1 5/8" hole. To
install a fully assembled 512
pole down through the roof, a
2 1/2" hole will be needed so
the handle and twist lock will
t through.
512
Thru-The-Roof Mount
1 5/8"
Diameter
Cutout
2 1/2"
Diameter
Cutout
Apply a bead of
sealant around the
bottom outer edge
of the ange.
3"
Flange
Diameter
4"
Hardware Recommendations
For 510, 512 mounts:
1/4-20 SS
