1. Introduction
• Small, light-weight and compact
• IGBT output bridge for high speed switching and low power consumption
• Motor speed continuous - controlled from 0Hz to 125Hz (option - up to 500Hz)
• Logic and analogue inputs for remote control
• FRECON MINITERMINAL - control pod : combines keypad and display, operational functions of
the drive can be changed from the keypad.
• FRECON TELECONTROL: remote control and indication unit
• External braking unit
• External RFI filter

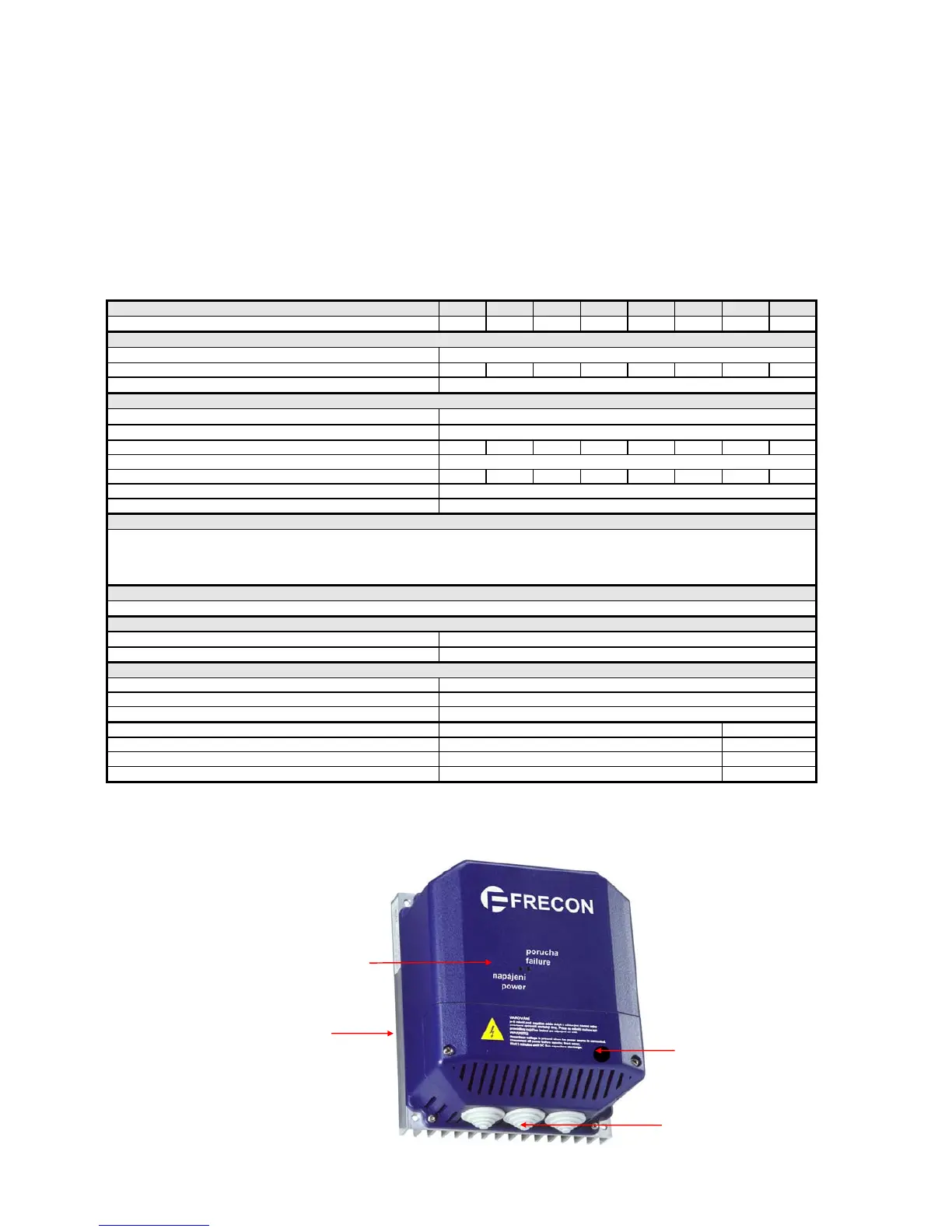

2. General characteristics
Type: FIA-L: 18 37 55 75 110 150 220 250
Nominal motor rating (kW)
0,18 0,37 0,55 0,75 1,1 1,5 2,2 2,5
Input:
Voltage
1x 230V ± 10%
Nominal current (A) 2,6 4,4 6,1 7,0 9,6 12,2 17,5 20,0
Frequency
47 ÷ 63 Hz
Output:
Voltage
3 x 0 ÷ input voltage
Frequency
0 ÷ 125Hz, (with spec. SW up to 500Hz)
Apparent power (kVA) 0,6 1,0 1,4 1,6 2,2 2,8 4,0 4,5
Overload 150%, 30 sec
Nominal current (A) 1,4 2,4 3,0 4,0 5,5 7,0 10,0 11,3
Modulation PWM - 18kHz
V / f - characteristic adjustable
Control:
logic inputs - control switch or PLC output
function - START/STOP, FORWARD/REVERSE
analogue inputs: 0÷20mA (4÷20mA), 0÷10V (2÷10V), potentiometer (2÷20kΩ)
function - SPEED CONTROL
Protections:
low voltage, overvoltage, overcurrent, I x t, short-circuit (phase-phase, phase-earth)
Environmental conditions:
Ambient temperature / Ambient humidity
0 ÷ 40
0
C / max. 90% (non condensing)
Enclosure IP 00 or IP 20 or IP 54
Design criteria:
Safety EN 61 010-1 / 95
Electromagnetic compatibility - emission: EN 55 011/A1,B1; EN 50 081-1, 2 (with external RFI filter)
- immunity: EN 50 082-1, 2
Dimensions: Height (mm)
180 200
(IP 20) Width (mm) 153 160
Depth (mm) 97 145
Weight: (kg)
1,3 2,5
3. Description
status LED
indication
- power
-
