Frecon FIA-L75 - Procedure III - local control, using MINITERMINAL (control pod); Reset of the drive after a trip signal

7
7.2.1. Speed control
• potentiometer
7.2.2. "Run/stop"
• change-over switch
function (refer to chapter 7; section 1.2.)
7.2.3. "Forward/reverse"
• change - over switch
function (refer to chapter 7; section 1.3.)
7.2.4. Drive status indication
• LED " FAILURE " (red) : internal or external trip; the drive is stopped (disconnected from the load)
7.3. Procedure III - local control, using MINITERMINAL (control pod)
• remove the connector cover on the front panel of the drive
• connect the control cable from the control pod to the connector on the front panel of the drive
• put the AC input power circuit breaker in "ON" position - the red "POWER" light goes on.
In the event of a fault; the red "FAILURE" light goes on.
• press the CONTROL MODE SELECTION key (LOC/REM) on the control pod - select local (keypad)
control.
The red "LOC" light on the control pod goes on.
• all operational functions of the drive and motor can be controlled and all parameter values can be
changed from the keypad (refer to user manual for the MINITERMINAL)
8. Reset of the drive after a trip signal
Two modes are available :
• short time disconnecting of the drive from the supply and reconnecting
• STOP signal activation
Reset mode is set by parameter "CRTR" (refer to user manual for the MINITERMINAL)
NOTE : restart of the drive ("START" signal activation) is recommended when the motor is stopped !
9. Options

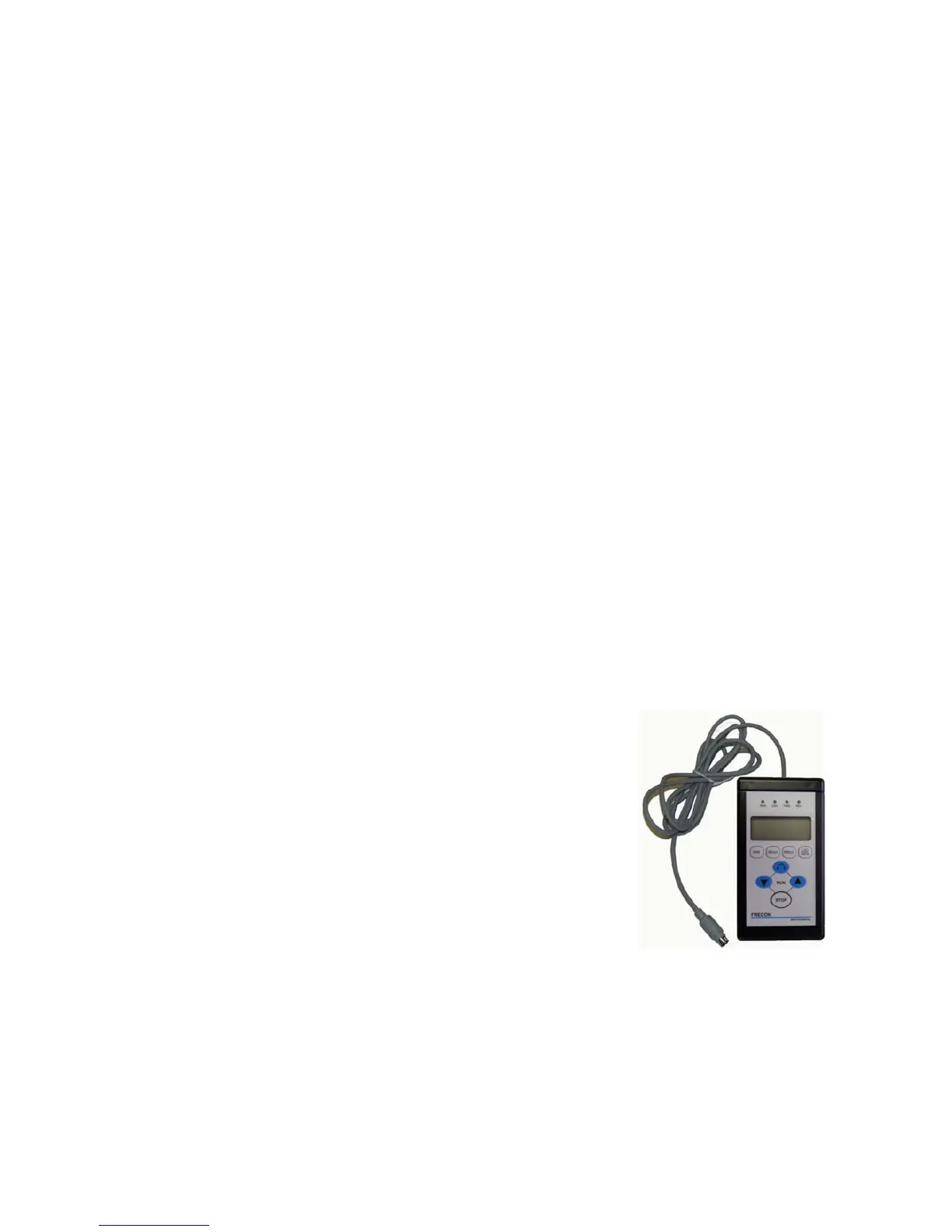

9.1. FRECON MINITERMINAL (control pod)
Combines keypad and display functions :
• local /remote control selection
• local control (run/stop, forward/reverse, output freq. control
resolution : 0,01 Hz)
• drive parameter values adjustment and display (LCD screen)
• user sets programming possibility (i.e. storing all functional
parameters into EEPROM for automatic or manual restore)
• required and actual output frequency monitoring (LCD screen)
• operational status LED indication : run, fwd, rev, local (keypad)
control
• fault codes display
• MOUNTING : externally anywhere convenient at a distance
permitted by a maximum cable length of 6 m from the drive to the pod.
