FREE MOTION S83 - Page 18

18

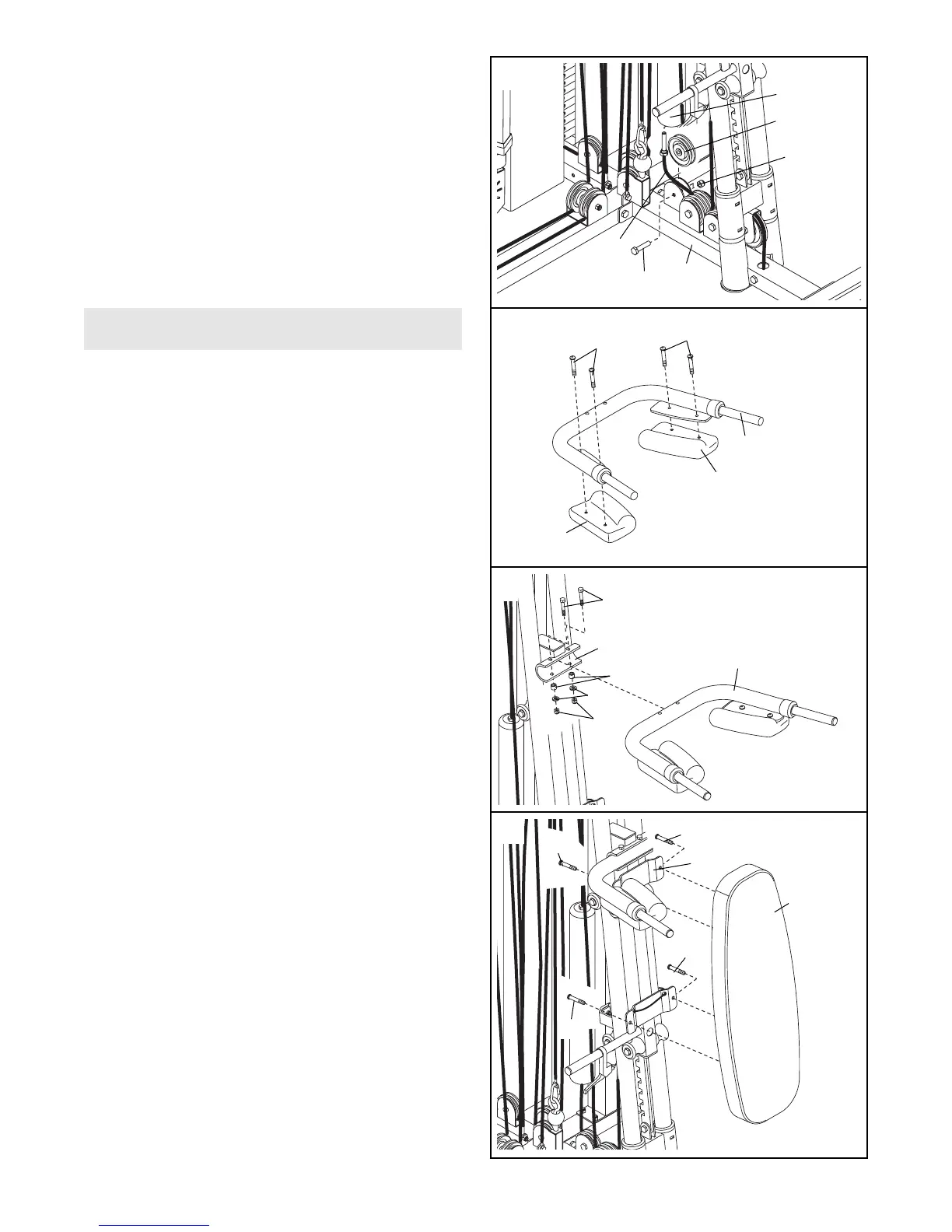

46. Wrap the Medium Cable (140) under a 3 1/2”
Pulley (56). Attach the Pulley to the indicated
bracket on the Hack Squat Base (111) with an
M10 x 46mm Button Bolt (76) and an M10 Nylon
Locknut (101).
Attach the Medium Cable (140) to the bottom of
the Counterweight (120). Tighten the Medium
Cable and Short Cable (141) into the
Counterweight until all of the slack is
removed.
47. Attach the Right Shoulder Pad (123) to the Hack
Squat Arm (119) with two M8 x 19mm Button
Screws (88). Repeat with the Left Shoulder Pad
(124).
46
47
48. Attach the Hack Squat Arm (119) to the Hack
Squat Backrest Frame (118) with two M10 x
70mm Button Bolts (87), two 6mm Black Spacers
(145), two M10 Washers (98), and two M10 Nylon
Locknuts (101).
48
76
140
56
101
120
111
119
119
118
88
88
124
123
87
145
98
101
Seat Assembly
49. Attach the Hack Squat Backrest (122) to the Hack
Squat Backrest Frame (118) with four M8 x 19mm
Button Screws (88).
49
122
88
88
88
88
118
