FREE MOTION S83 - Cable Diagrams

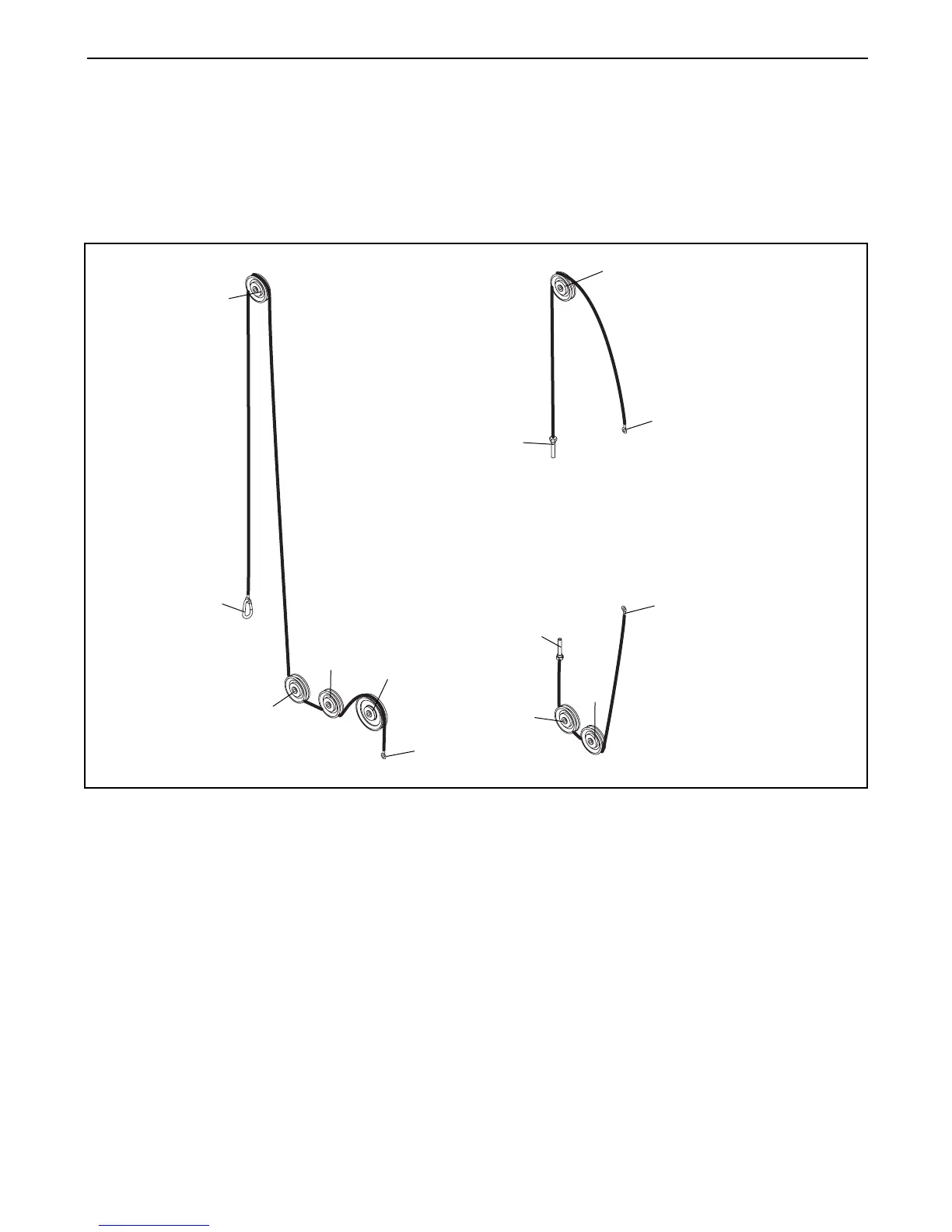

CABLE DIAGRAMS
The cable diagrams below show the proper routing of the Low Cable (40), the Press Cables (41), the High
Cable (63), the Hack Squat Cable (29), the Medium Cable (30), and the Short Cable (31). Use the diagrams to
make sure that the cables have been assembled correctly. If the cables have not been correctly routed, the
weight system will not function properly and damage may occur. The numbers show the correct route for each
cable. Make sure that the cable traps do not touch or bind the cables.
28
Hack Squat Cable (139)
Length: 132 inches
Medium Cable (140)
Length: 54 inches
Short Cable (141)
Length: 38 inches
3
4
2
1
3
6
5
2
3
4
1
2
1
