6

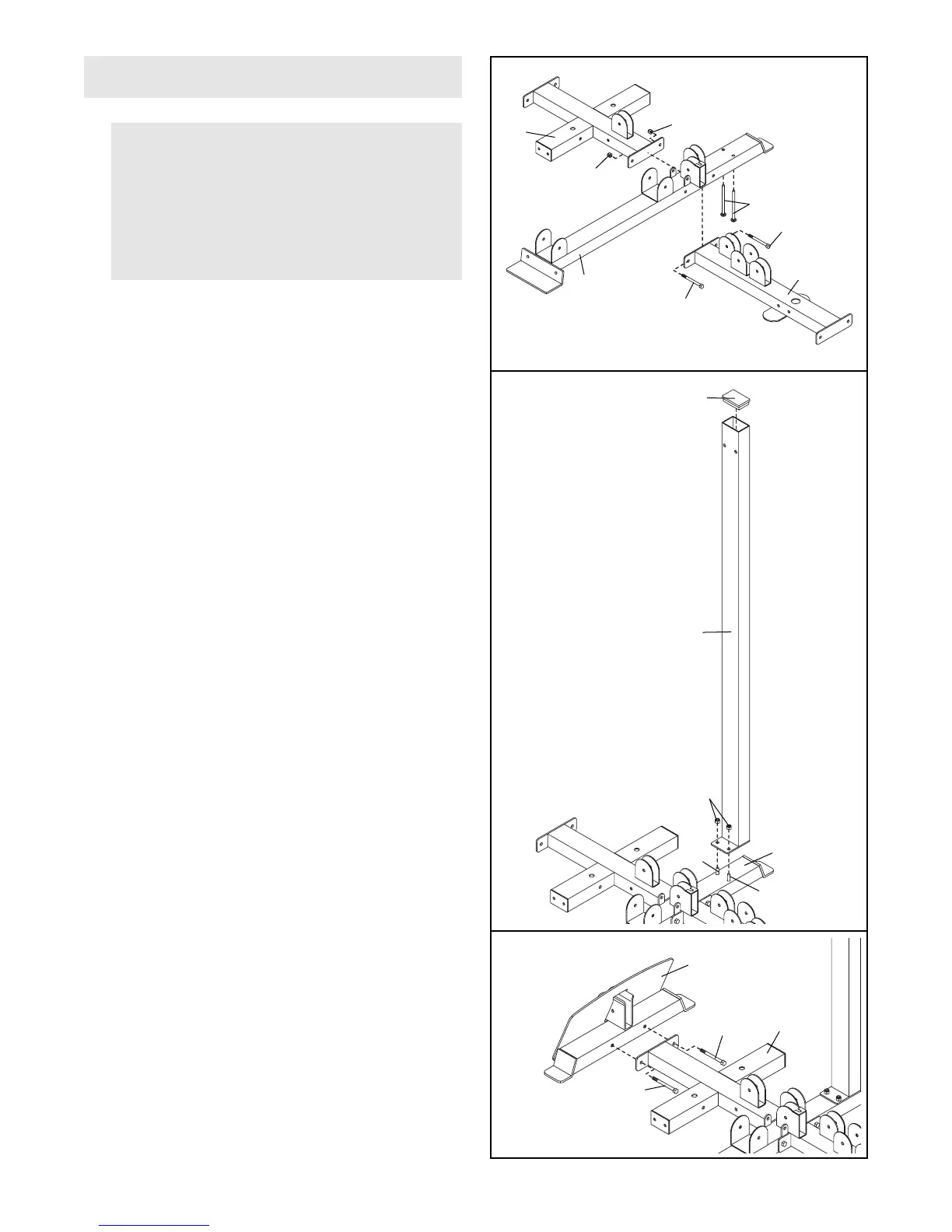

1.
Attach the Weight Base (2) and the Hack Squat
Base (111) to the Base (1) with two M10 x 96mm
Button Bolts (77) and two M10 Nylon Locknuts
(101). Do not tighten the Locknuts yet.
Insert two M10 x 68mm Carriage Bolts (73) up
through the Base (1).
2. Press a 50mm x 76mm Inner Cap (52) into the
top of the Upright (4).
Attach the Upright (4) to the Base (1) with the two
indicated M10 x 68mm Carriage Bolts (73) and
two M10 Nylon Locknuts (101). Do not tighten
the Locknuts yet.
3. Attach the Foot Plate (3) to the Weight Base (2)
with two M10 x 92mm Button Bolts (90).
Before beginning, read the information on
page 5. This brief introduction will save
much more time than it takes to read it.
For help identifying the small parts used in
assembly, use the PART IDENTIFICATION
CHART in the center of this manual.
Frame Assembly
1
1
2
111
73
73
73
3
52
4
101
1
77
77
101
101
2
3
90
90
2
To Next Page
