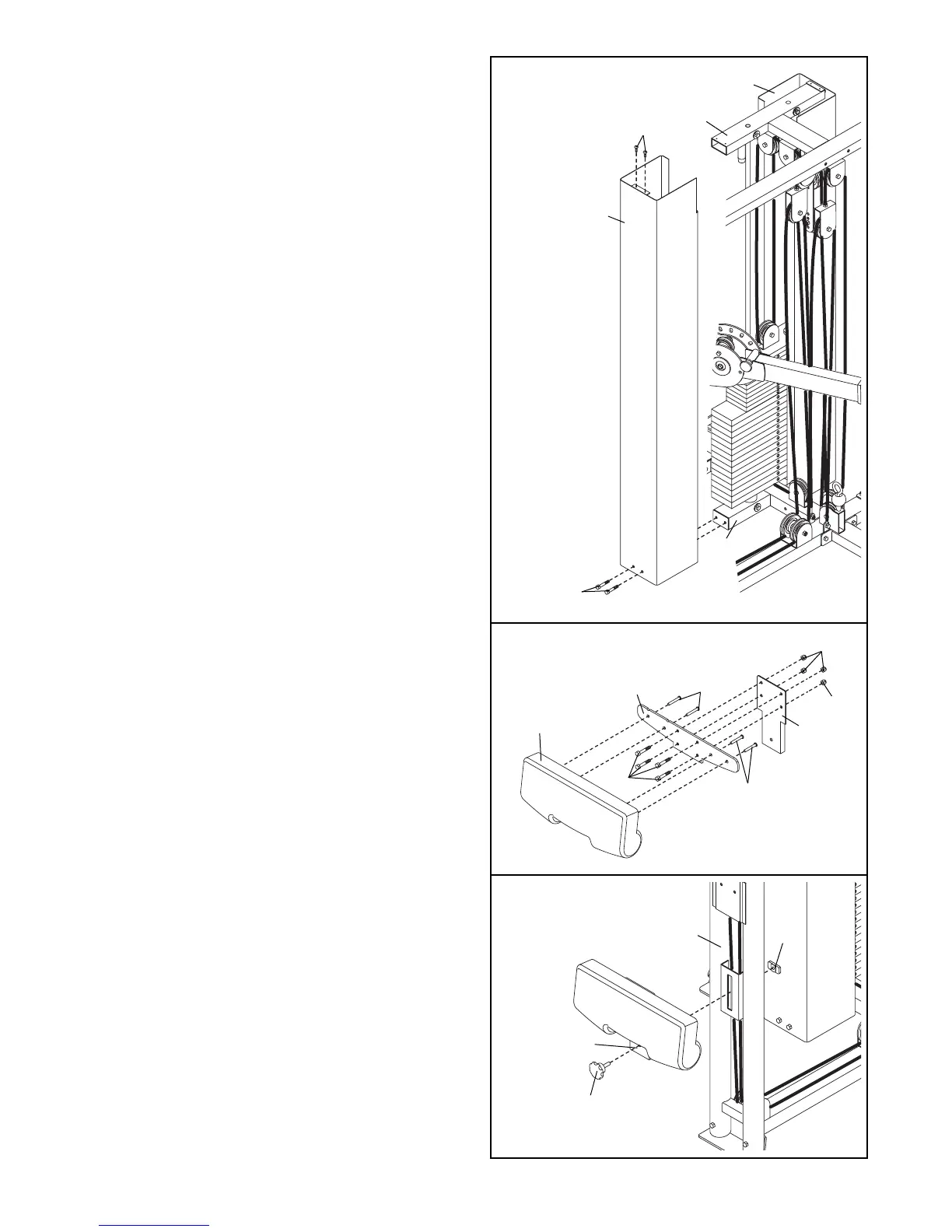

51. Attach the Pad Plate (16) to the Pad Bracket (15)
with four M8 x 19mm Button Screws (88) and four
M8 Nylon Locknuts (102).
Attach the Pad (17) to the Pad Plate (16) with
four M8 x 19mm Button Screws (88).
52. Attach the Pad Bracket (15) to the Backrest
Frame (6) with the Knob (72) and the Nut Plate
(104). Make sure the Nut Plate is oriented as
shown.
51
17
16
15
88
88
102
102
52
15
72
104
6
88
50. Attach the Front Shroud (24) to the Top Frame (5)
with two M4 x 16mm Screws (95). Attach the
Front Shroud to the Weight Base (2) with two
M10 x 25mm Button Bolts (94).
Attach the Rear Shroud (25) in the same man-
ner.
50
24
95
5
94
2
25
