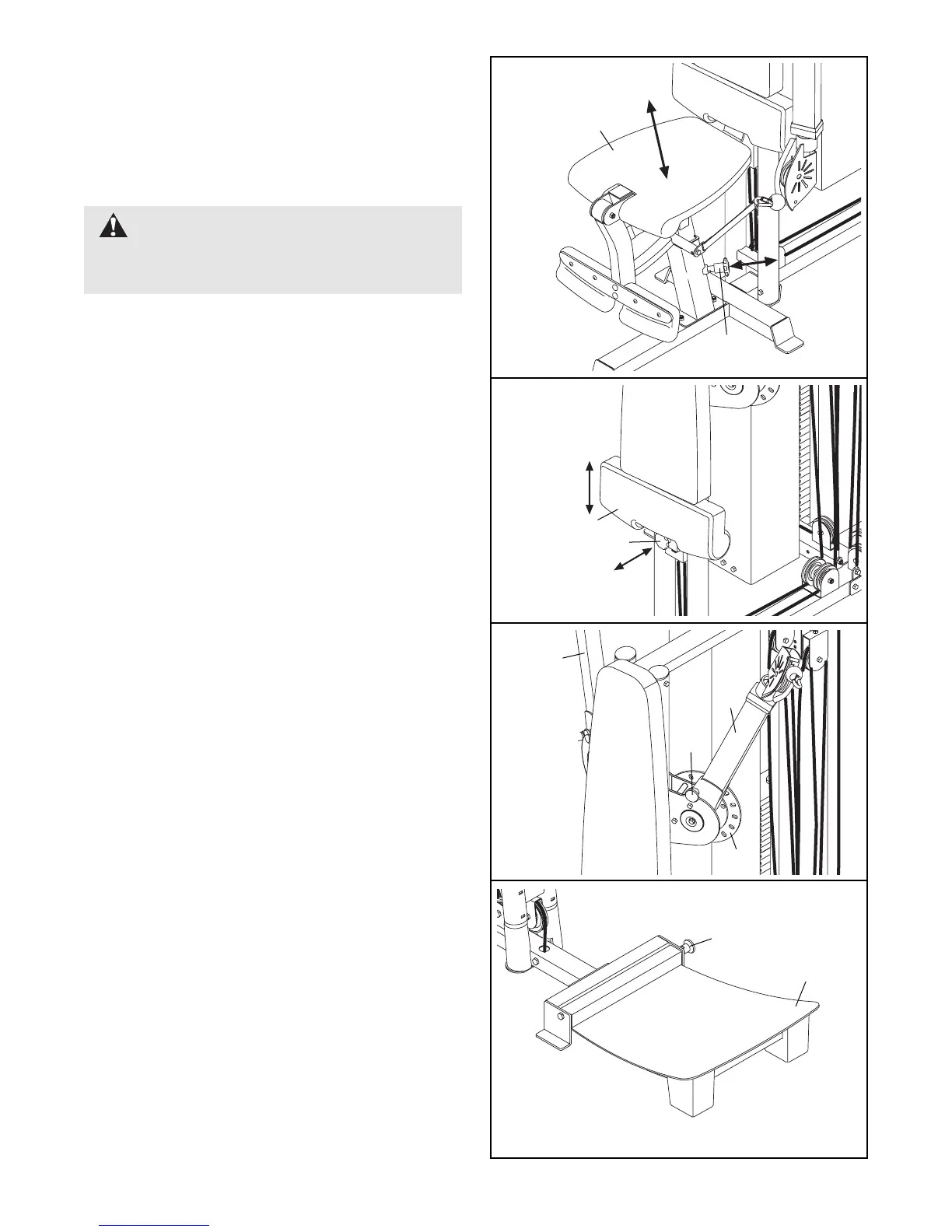

ADJUSTING THE SEAT
To adjust the height of the Seat (14), loosen the Seat
Knob (48) and pull it out as far as it will go. Position
the Seat at the desired height and engage the Seat
Knob into an adjustment hole in the Seat Frame (not
shown). Fully tighten the Seat Knob.
ADJUSTING THE PAD
To adjust the position of the Pad (17), loosen the
Knob (72). Move the Pad to the desired position and
retighten the Knob.
ADJUSTING THE PRESS ARMS
To adjust the position of a Press Arm (11, 12), lift on
the Press Arm, pull the Press Arm Knob (33) out, and
move the Press Arm to the desired position.
Reengage the Press Arm Knob into the Adjustment
Plates (26).
WARNING:Make sure the Seat
Knob (48) fully engages the Seat Frame (not
shown) before using the Seat (14).
STORING THE HACK SQUAT FOOT PLATE
To store the Hack Squat Foot Plate (113), pull the
Adjustment Pin Assembly (135) and lift on the Hack
Squat Foot Plate. Reengage the Adjustment Pin
Assembly into the Hack Squat Foot Plate.
135
113
