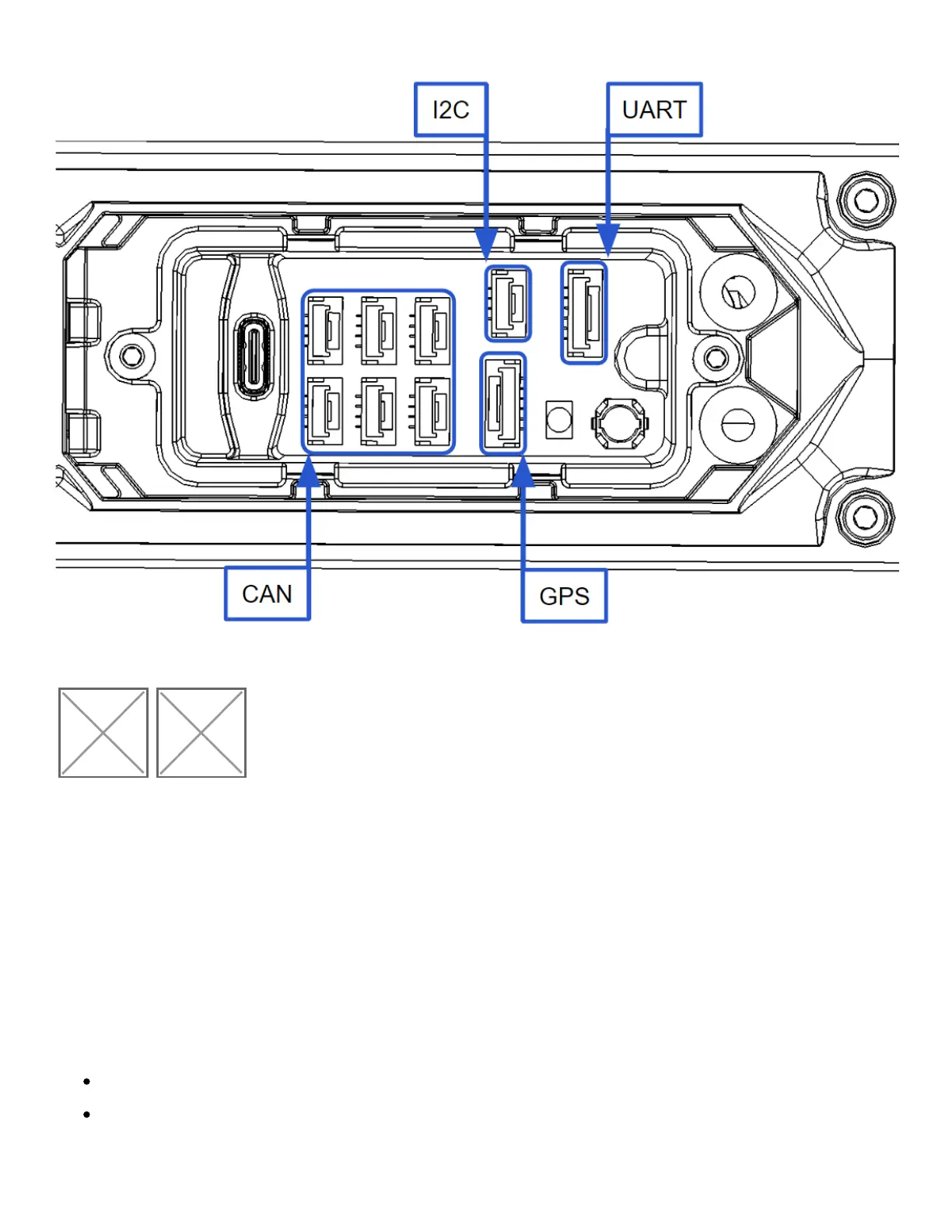

GH-6 Pin GH-4 Pin
Image not found or type unknownImage not found or type unknown
5V External Power
The external expansion connector port 5V power is provided by a dedicated 5V 3A current
limited power supply separate of the redundant 5V power supplies for the flight controller.
Each output on the external expansion connectors is protected by a 1.1A hold 2.2A trip PTC
(Part number 0ZCG0110FF2C). The sum of the power supplying the following components
must be less than 3A:
Motor boom LEDs (approx 1A during flight with 2x red and 2x green LEDs)
Long range radio if not powered via other means (FRX Pro is powered by 12V)
To Next Page
