2.
Push inwards fully until they click, indicating the cartridges are locked in
place. Pull outwards on the cartridge to ensure it is locked.
3.

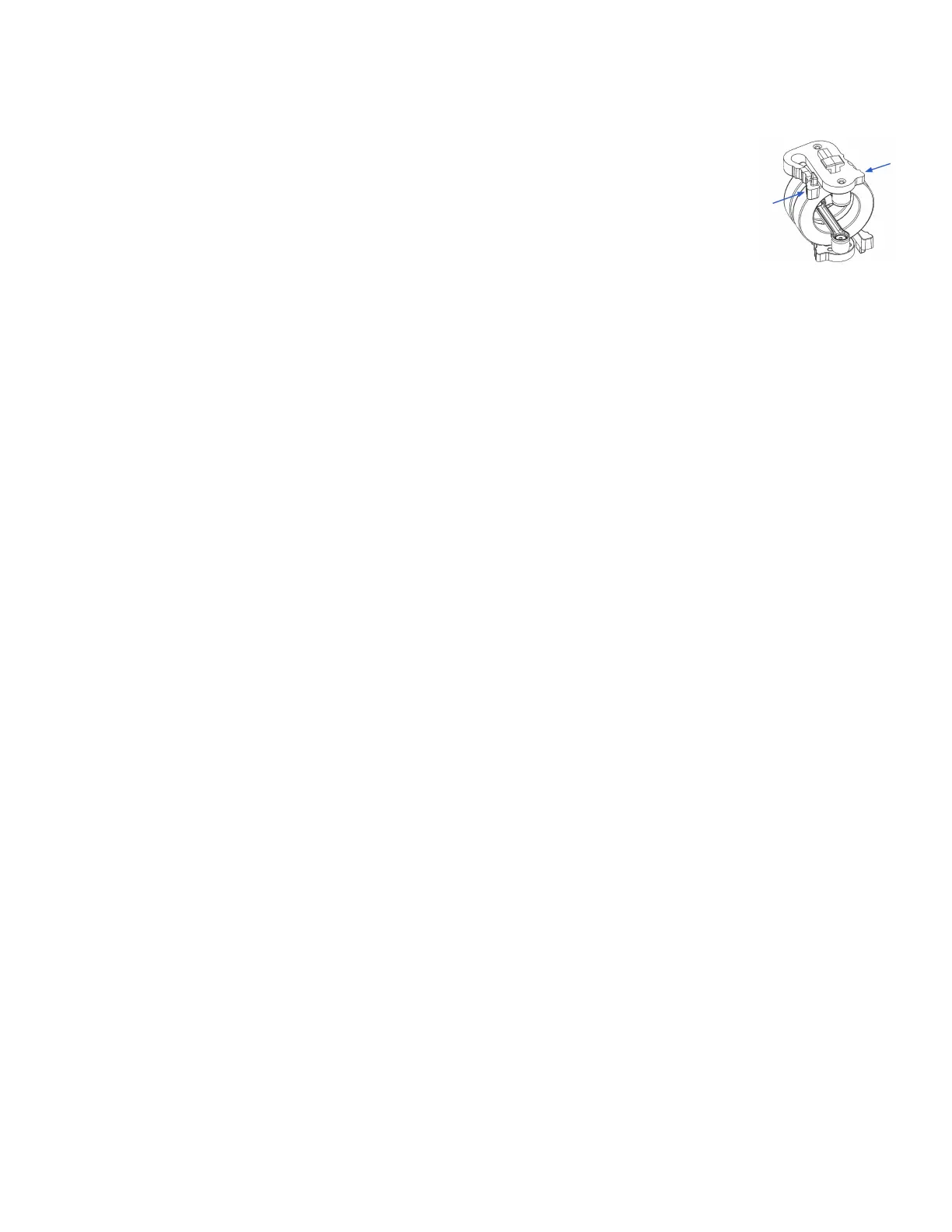

To remove, pinch the cartridge latch to unlock it from isolation plates
and slide it outwards to disengage.
{% hint style="info" %} Flight testing may be required to determine the optimal isolator for
a given setup. {% endhint %}
5V/12V DC-DC Converters
Description & Specifications
The Freefly DC-DC converters draw power from the 50V battery bus and provide up to
120W of 5V or 12V DC. The converters utilize off the shelf converters mounted on a custom
heatsink with and a custom capacitor board to provide better transient response.
Spec 12V 5V
Operating input voltage range 18-75VDC 18-75VDC
Output voltage 12VDC 5VDC
Max output current (Note 1) 10A 24A
Max output power (Note 1) 120W 120W
Recommended max output power 100W 100W
Operating Temperature -40C to 85C -40C to 85C
Input power connector XT30 (Male Pins) XT30 (Male Pins)
Output power connector XT60 (Female Sockets) XT60 (Female Sockets)
Note 1: Above ambient temperatures of 50C, some current/power derating will be necessary.
Installation
The converter mounts onto any unused closeout. Installation steps:
